AV Access 4KMX42-H2A 4×2 4K HDMI Matrix Switch with ARC & SPDIF Audio Extraction, HDMI 2.0 Switcher w/ Auto Downscaler for Home Theater

Rs. 10,805.00 INR
Rs. 10,805.00 INR
Rs. 15,699.00 INR
Shipping calculated at checkout.

Versatile 4 In 2 Out Matrix Switch

This 4K HDMI matrix switch boasts HDMI 2.0 and HDCP 2.2 compatibility. It independently distributes up to four Ultra HD 4K sources to two remarkable Ultra HD displays. With resolutions reaching up to 4K@60Hz 4:4:4 8-bit, you can experience unparalleled clarity and precision in every visual detail.

AV Access_4KMX42-H2A 4x2 4K HDMI Matrix Switch_4 In 2 Out


AV Access_4KMX42-H2A 4x2 4K HDMI Matrix Switch_Arc Function

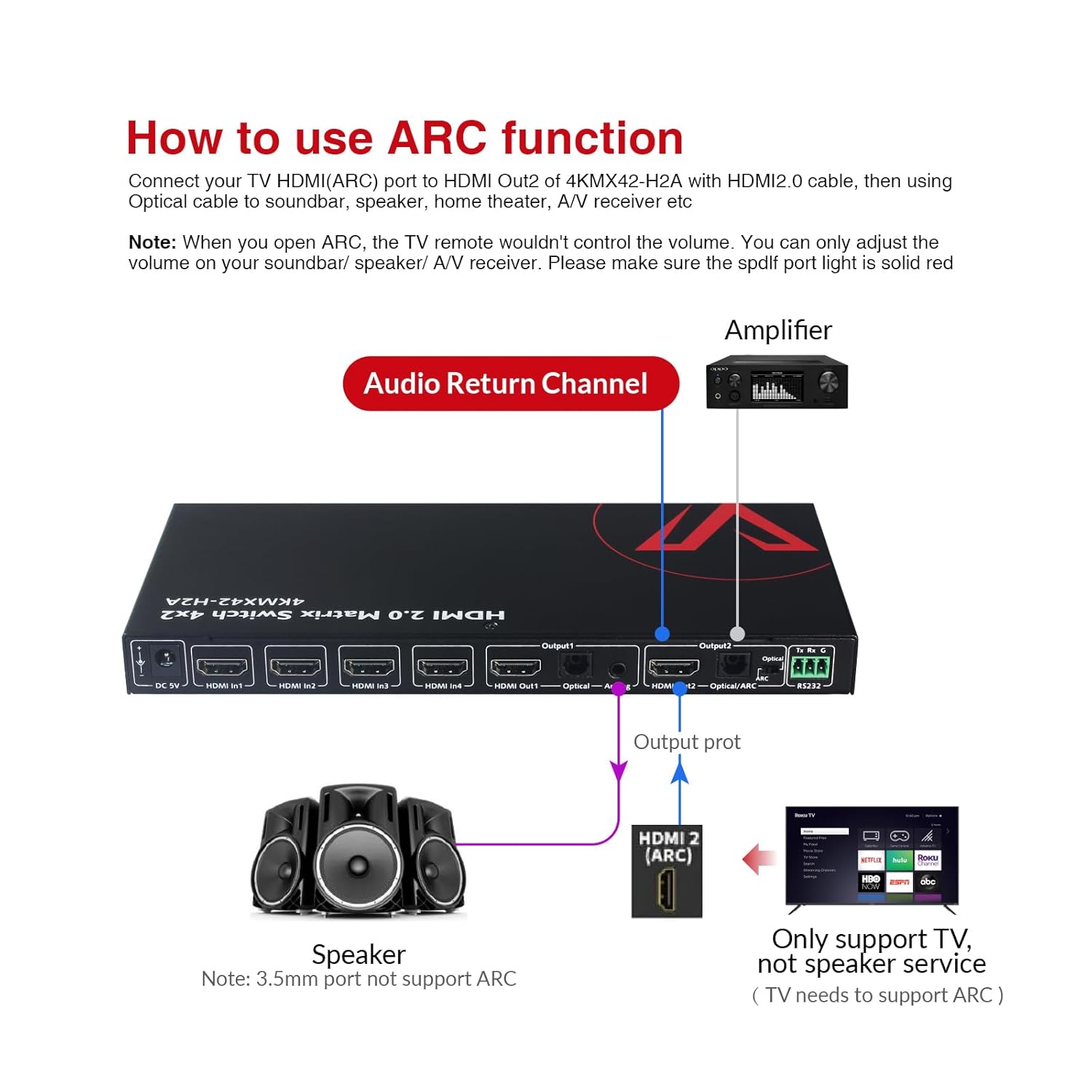

Innovative HDMI ARC Function

With the DIP switch near the HDMI out port 2, you can also configure the ARC mode to transfer 5.1 surround sound from your smart TV back to your AV receiver via the SPDIF out port. Thus, this 4K HDMI matrix switcher can save the hassles of using an extra audio cable and simplify your home theater installation.

Notes:
1. Only HDMI out port 2 supports ARC.
2.Before using the ARC function, please first ensure your AV receiver and TV both support ARC.
3.During use, please connect the HDMI cable to the ARC port of your TV. Also, please make sure the ARC and CEC functions of the AV receiver and the TV are enabled.

Excellent Audio Extraction

The audio extraction function will be activated when you switch the DIP switch to the de-embedded mode. The audio out port next to HDMI output 1 can distract HDMI audio to a headphone, providing stereo audio. The SPDIF out port next to HDMI output 2 can distract audio to an AV receiver, delivering 5.1 channel audio for an immersive experience.

AV Access_4KMX42-H2A 4x2 4K HDMI Matrix Switch_Audio Distraction


AV Access_4KMX42-H2A 4x2 4K HDMI Matrix Switch_Downscaler

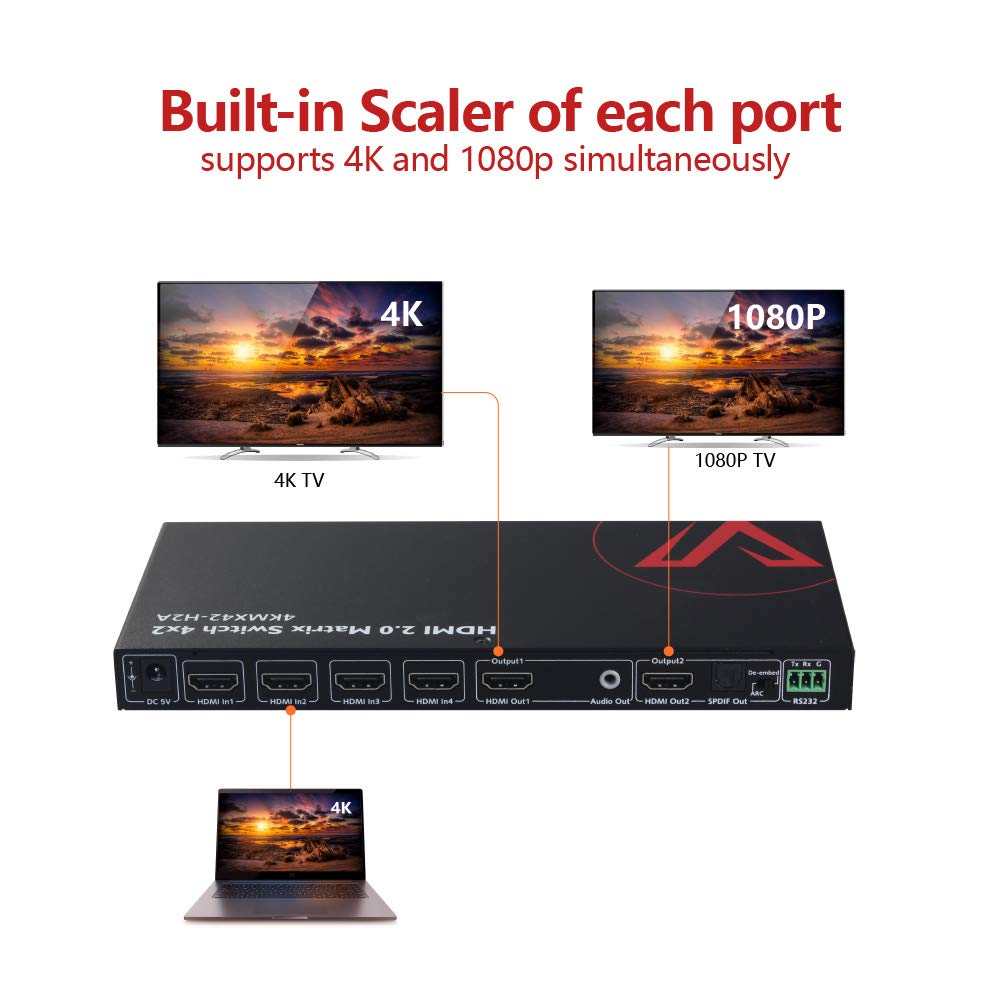

Intelligent 4K to 1080P Downscaler

Efficiently transmit your 4K video sources to both 4K and 1080P displays simultaneously by leveraging downscaling with our 4K HDMI matrix switch. Diverse output resolutions provide flexibility for cost-effective display distribution, helping you reduce costs.

3 Ways to Switch, As You Like

You can control this matrix switch with ease using our intuitive 3 options: utilize button controls on the device, operate wirelessly with the included IR remote, or seamlessly integrate through RS232 for advanced control. If you prefer RS232 serial communication, comprehensive API commands are provided in the manual, ensuring a well-documented and user-friendly experience.

AV Access_4KMX42-H2A 4x2 4K HDMI Matrix Switch_3 Control Ways

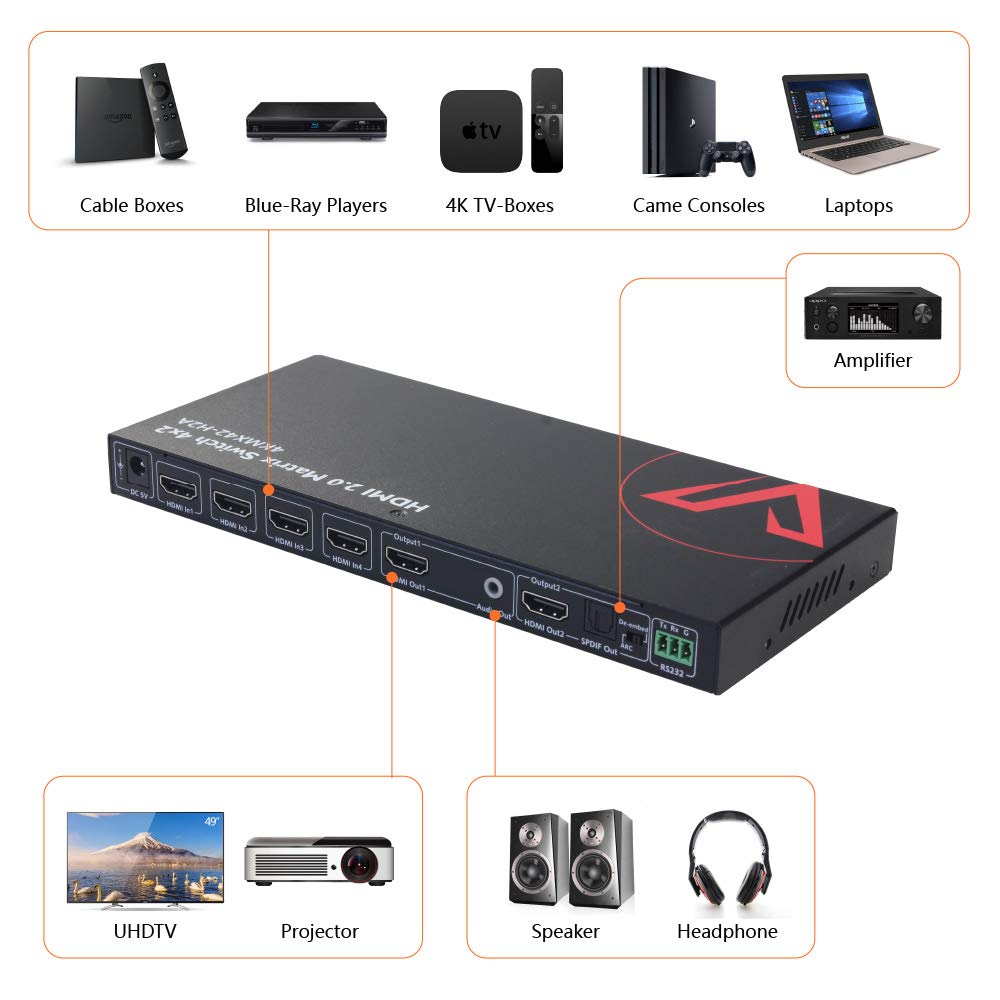

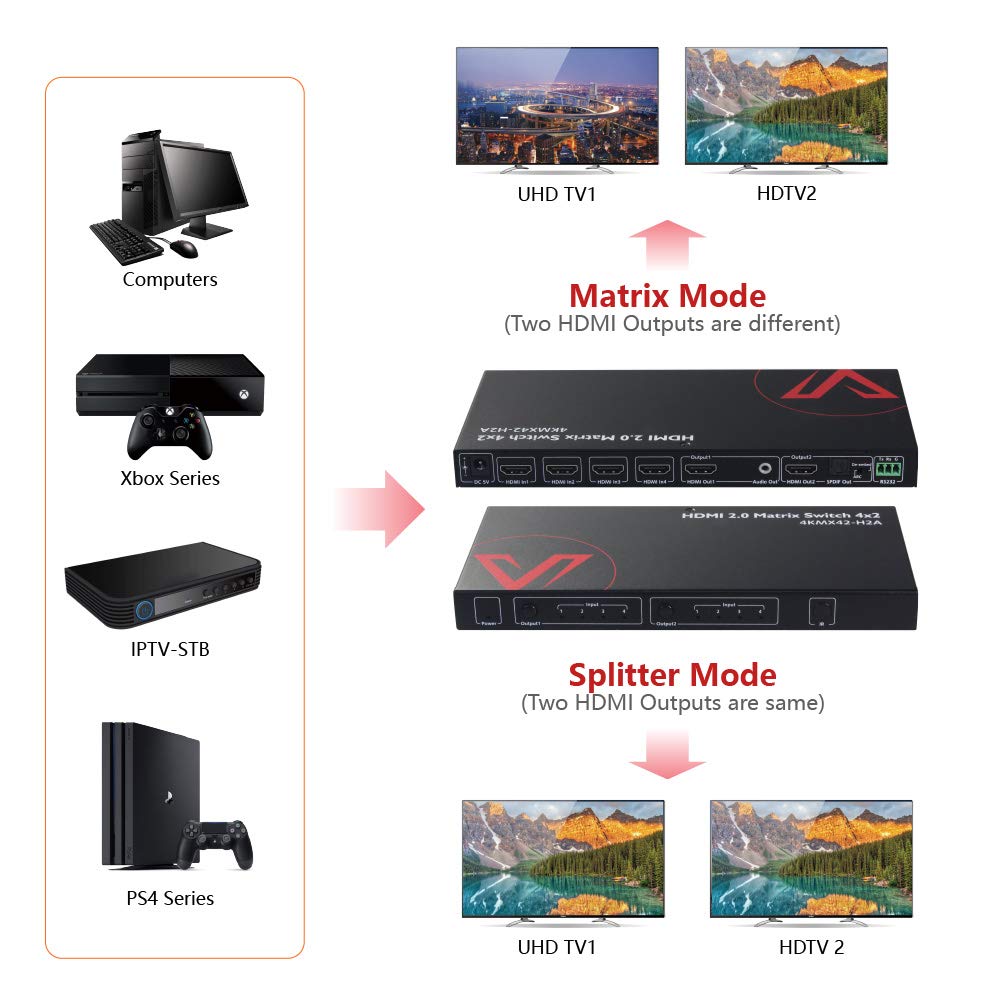

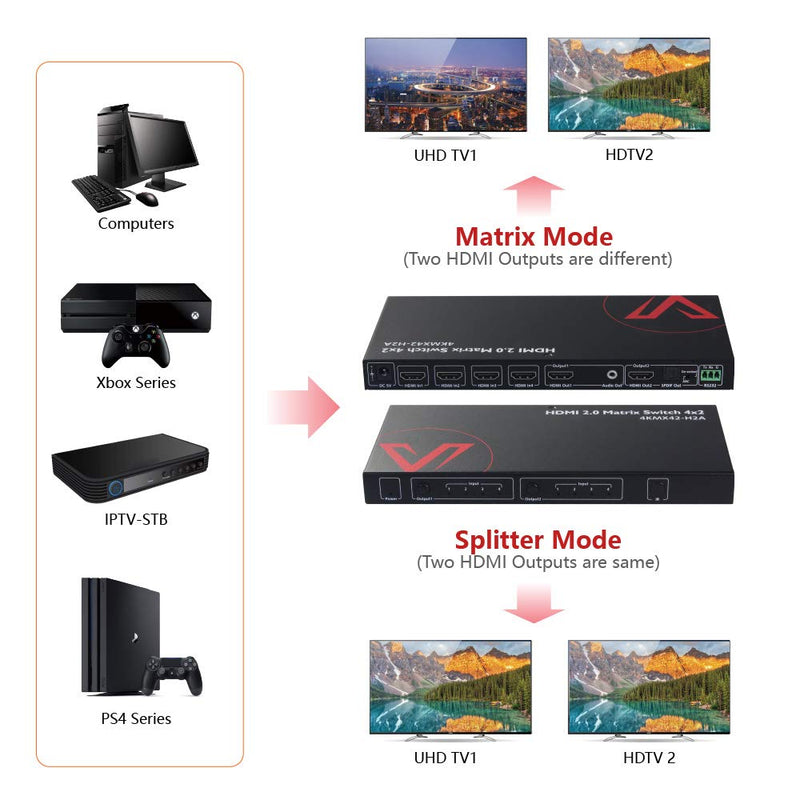

● 4 In 2 Out HDMI Matrix: Distributes any of the four HDMI sources to two displays (output videos can be different or the same), ideal for home theaters, restaurants, sports bars, conferences rooms, shopping malls, etc.
● HDMI 2.0 & HDCP 2.2 Compliant: Supports video resolution up to 4K@60Hz 4:4:4 with HDR 10, Dolby Vision or HLG. Also supports lossless audio formats, like Dolby Atmos and DTS:X, offering you amazing audio and video experiences.
● ARC or Audio Extraction, up to You: Built with a DIP switch near the HDMI out port 2 for effortless audio control. You can extract 5.1CH audio to an AV receiver via the SPDIF out port, either from one of the four HDMI sources, or from an ARC-compatible TV connected to the HDMI out port 2.
● Innovative 4K-to-1080P Downscaler: When you connect a 4K video source and 1080P/4K monitors simultaneously to the matrix switcher, it can automatically downscale 4K to 1080P for the 1080P monitor, ensuring optimal video performance.

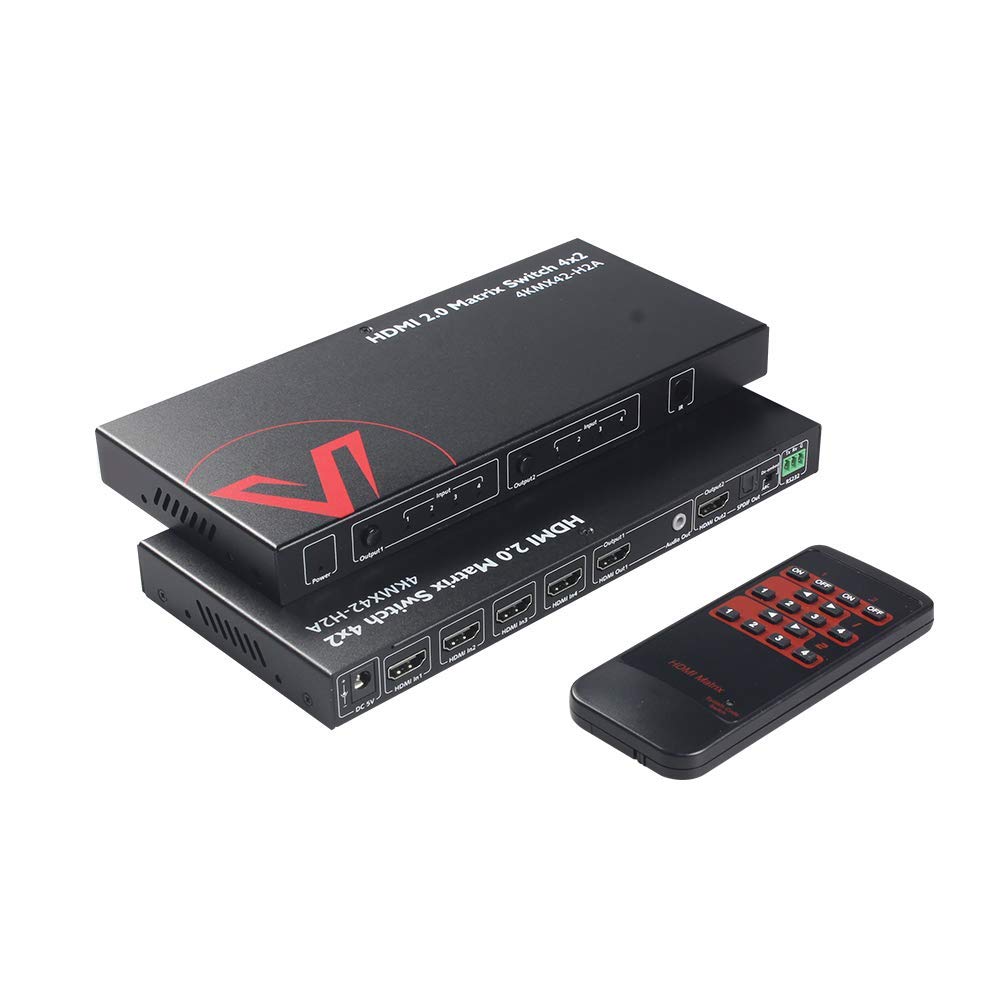

● 3 Ways to Switch: Control the matrix switch easily via front panel buttons, the included IR remote controller or RS232 command.
● Important Notes: Only HDMI out port 2 supports the ARC function. An audio setting DIP switch is built on the switch to optimize its audio output performance. And all accessories are not sold separately.

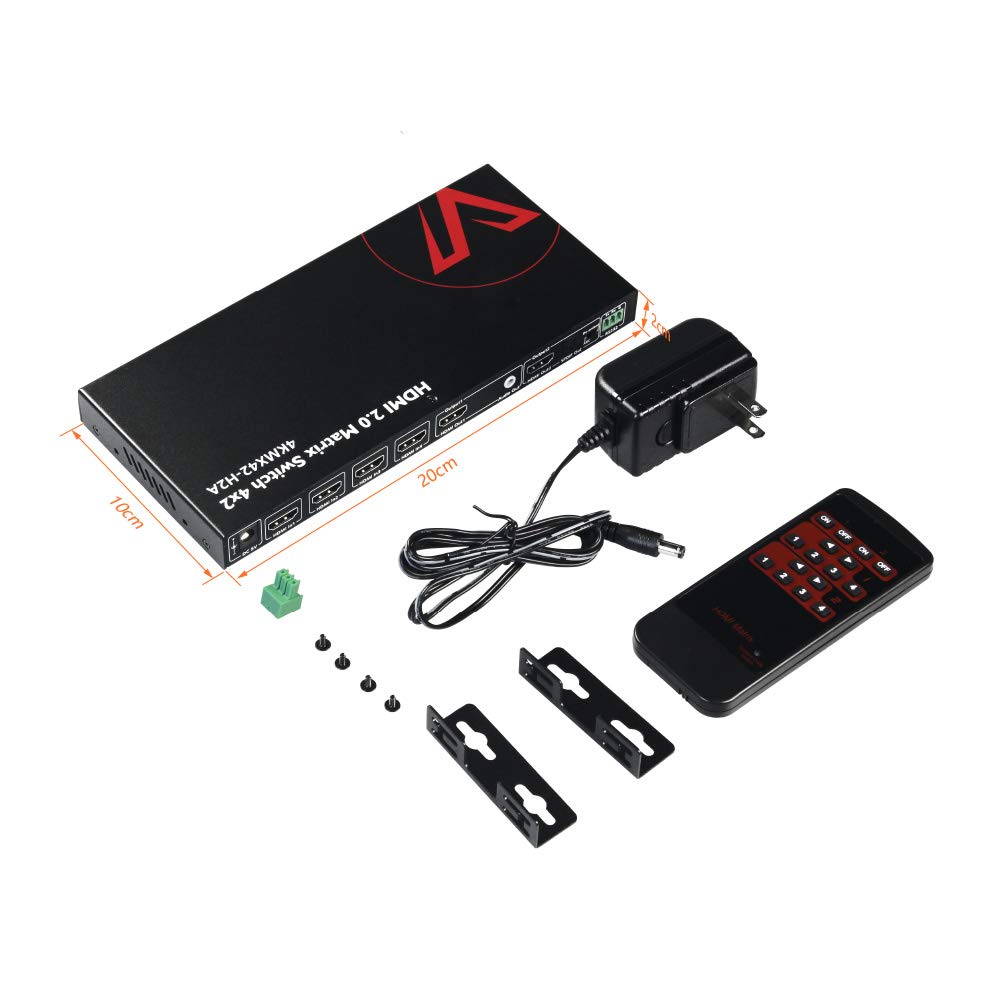

● Packing Contents:
  • 1 x 4KMX42-H2A
  • 1 x Power Adapter with US Pins (DC 5V 1A)
  • 1 x IR Remote
  • 1 x Phoenix Male Connectors (3.5mm, 3 Pins)
  • 2 x Mounting Brackets (with Screws)
  • 1 x User Manual
