4K and USB control, up to 150m away.
4KEX150-KVM is for the longest cable runs. It extends 4K@60Hz HDMI and USB 2.0 keyboard-and-mouse control up to 150m over Cat cable, with an HDMI loop-out at the source so the rack can be monitored locally.

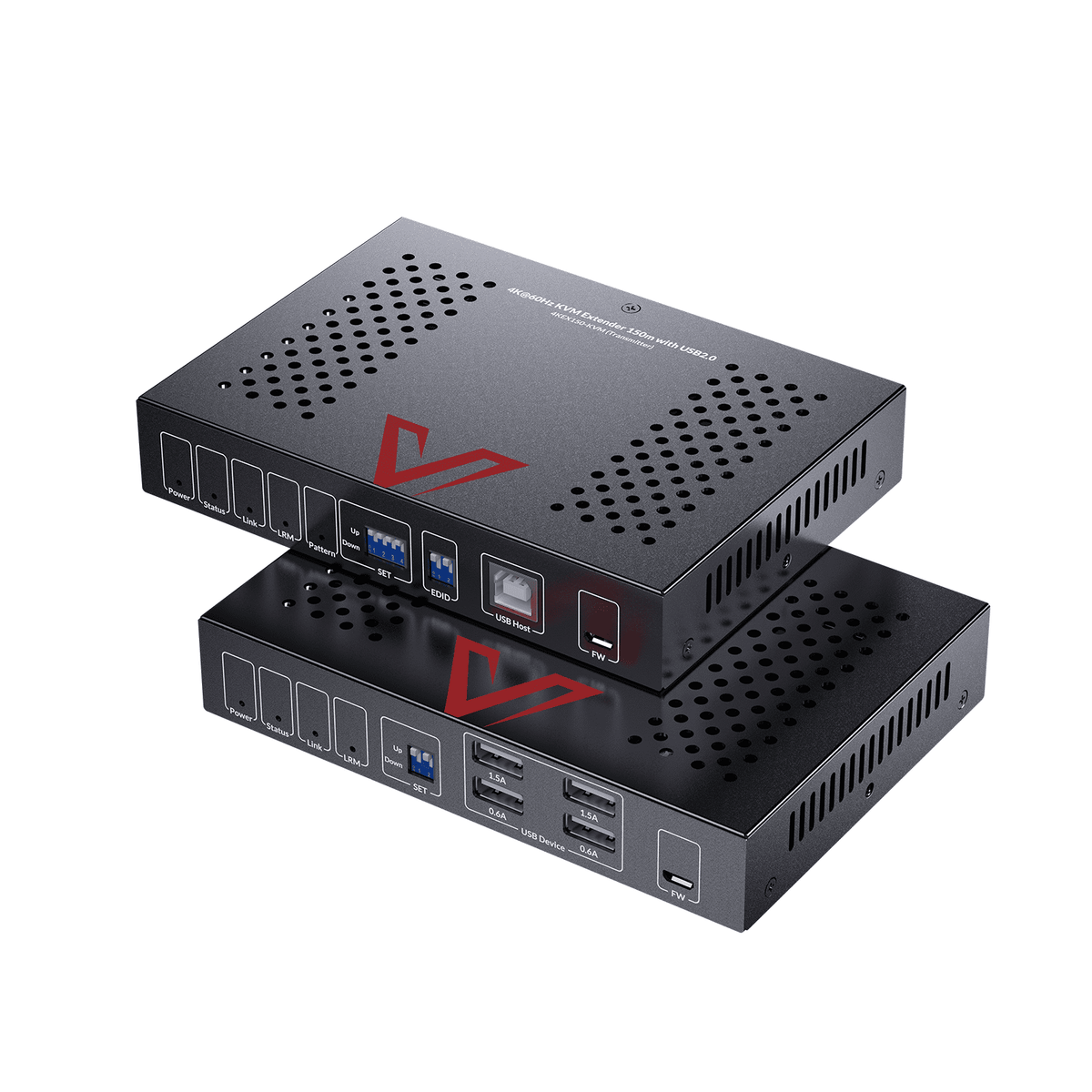

4KEX150-KVM

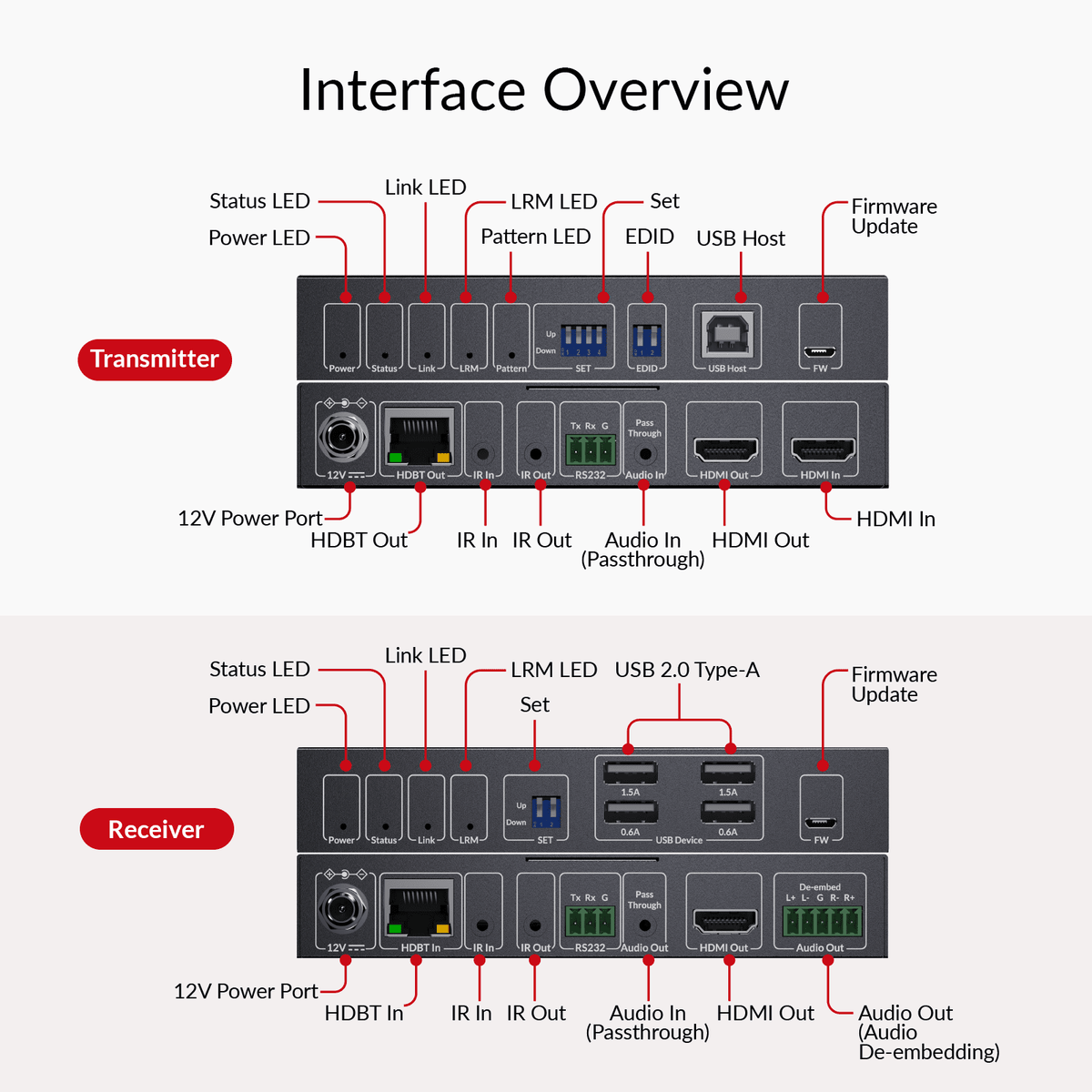

Know what connects where.
Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
Go further than HDBaseT
Long-reach mode stretches the link to 150m over Cat 5e/6/6A/7 — enough for campus buildings, factories and large venues.

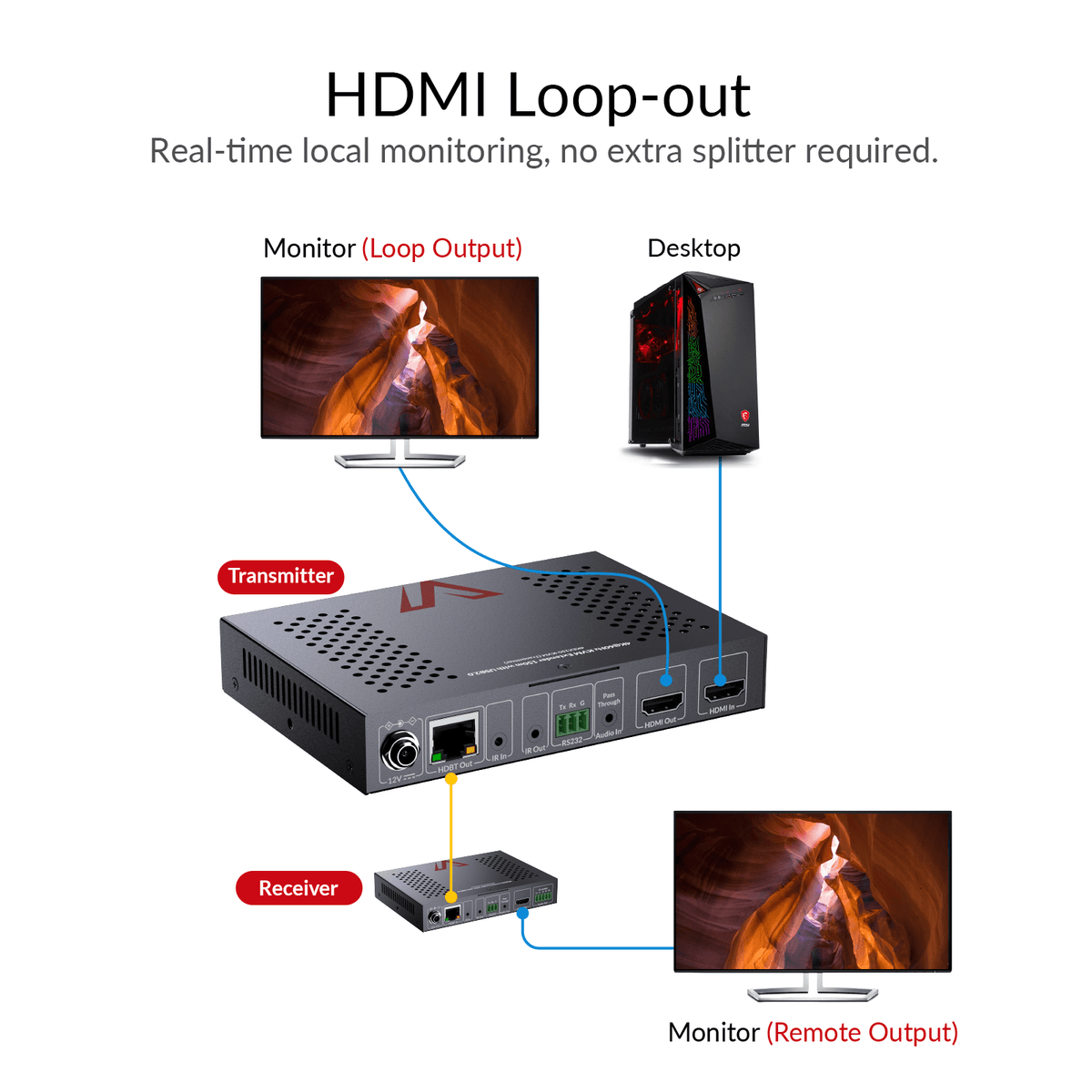

Watch the source at the rack
The HDMI loop-out on the transmitter mirrors the picture to a local monitor, handy for technicians and control desks.
Built for integrators
Audio de-embedding up to PCM 7.1, bi-directional IR and RS-232, EDID DIP switches and one-way PoC make it easy to fit into a controlled system.
Make sure it fits your setup.
Choose the right mode
Use long-reach mode for runs over 100m; HDBaseT mode supports full features up to 100m. Set both units the same.

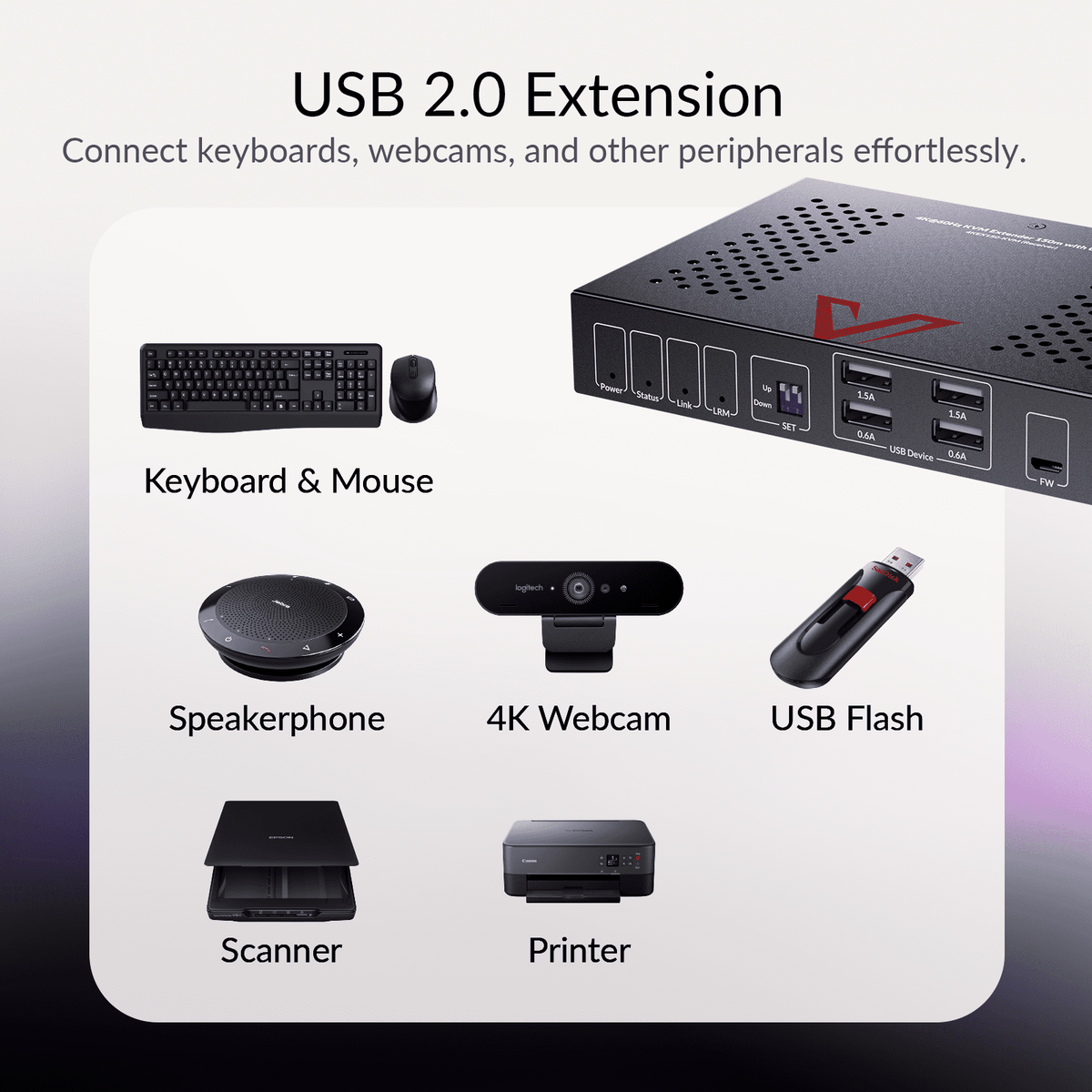

USB 2.0 devices
USB 2.0 and older devices are supported; keep total bandwidth modest for best results.
One transmitter, one receiver
This is a point-to-point kit. For one-to-many distribution, look at AV over IP.

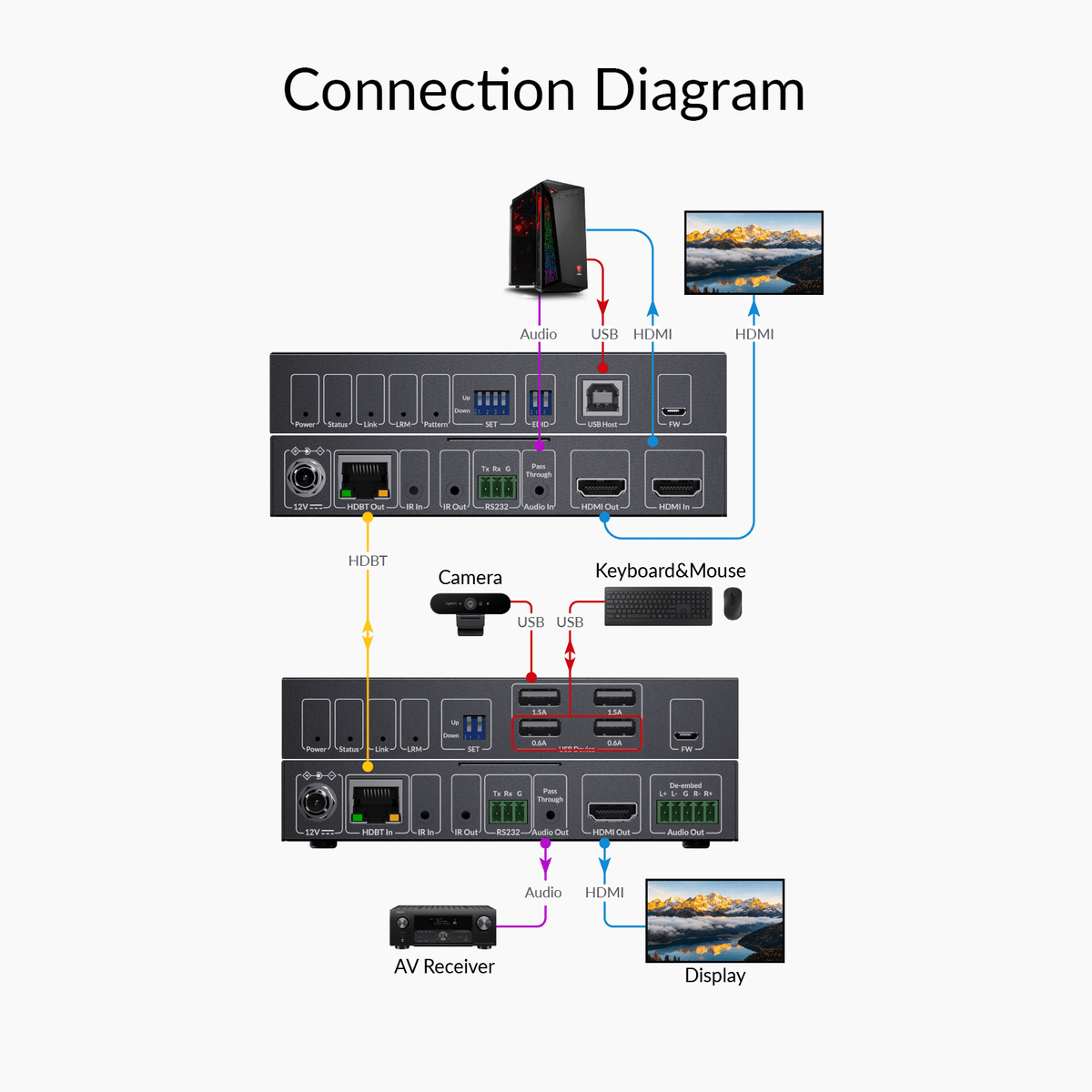

From unboxing to connected.
Connect the source
HDMI and USB from the PC to the TX; optional loop-out monitor.
Set the DIP switches
Match mode, EDID and RS-232 settings on TX and RX.
Run the cable
Up to 150m of Cat cable to the receiver.
Connect and power

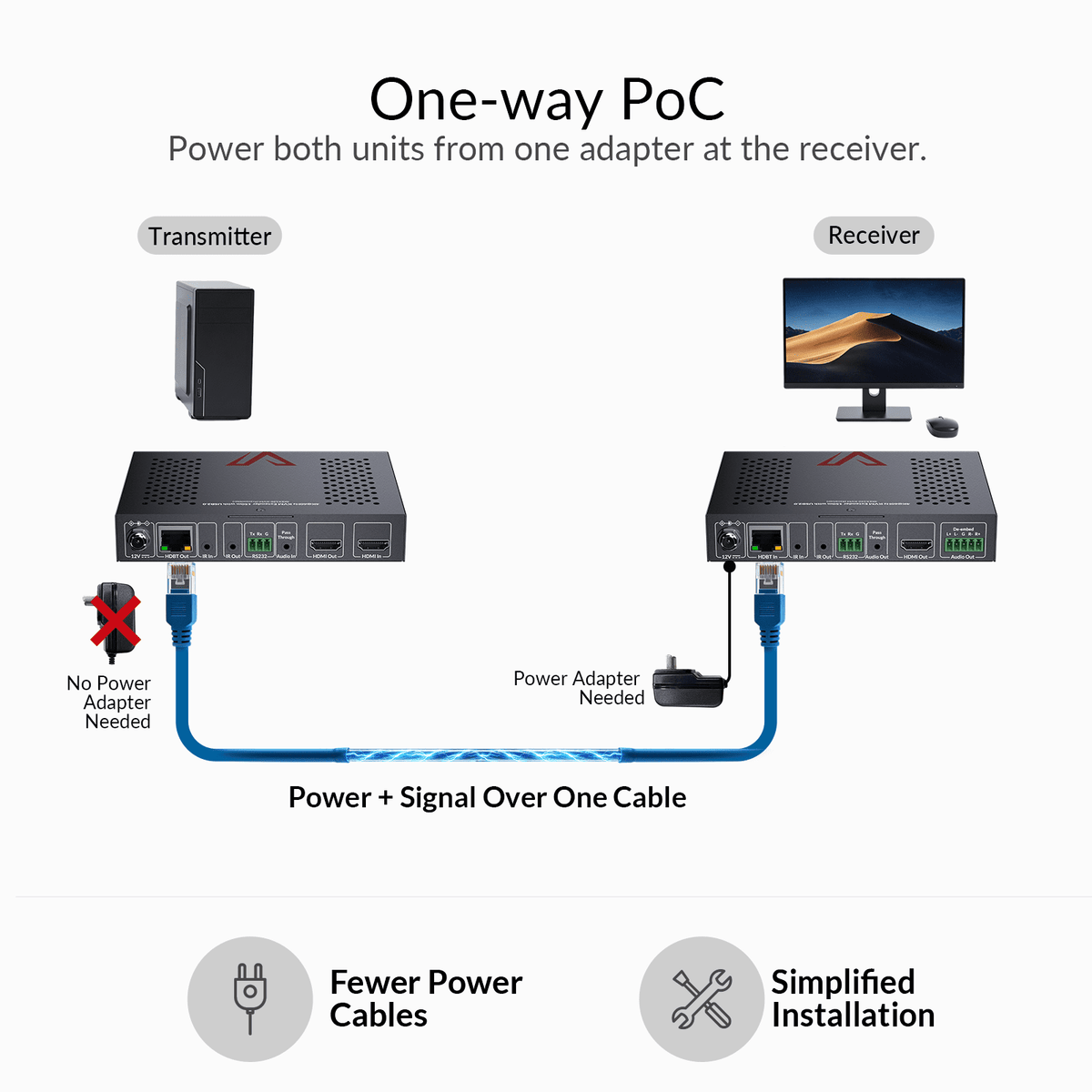

Display and USB at the RX; one adapter powers both.
4KEX150-KVM at a glance.
| Model | 4KEX150-KVM (TX + RX kit) |
|---|---|
| Video | HDMI 2.0, HDCP 2.3, up to 4K@60Hz 4:4:4 |
| Range | 150m long-reach; 100m HDBaseT (Cat 5e/6/6A/7) |
| USB | 4× USB 2.0 |
| Loop-out | HDMI at transmitter |
| Audio | De-embedding up to PCM 7.1 |
| Control | Bi-directional IR and RS-232 |
| Power | 12V/3A, one-way PoC |
| Power consumption | 29.5W |
| Size / weight | 140×25×100mm; approx. 0.33kg per unit |
A little clarity before you buy.
What is a KVM extender?
It extends video and USB over a long distance so a computer can be controlled from somewhere else, such as a server room or control desk.
Can I connect devices other than keyboard and mouse?
Yes, as long as they are USB 2.0 (or older) devices.

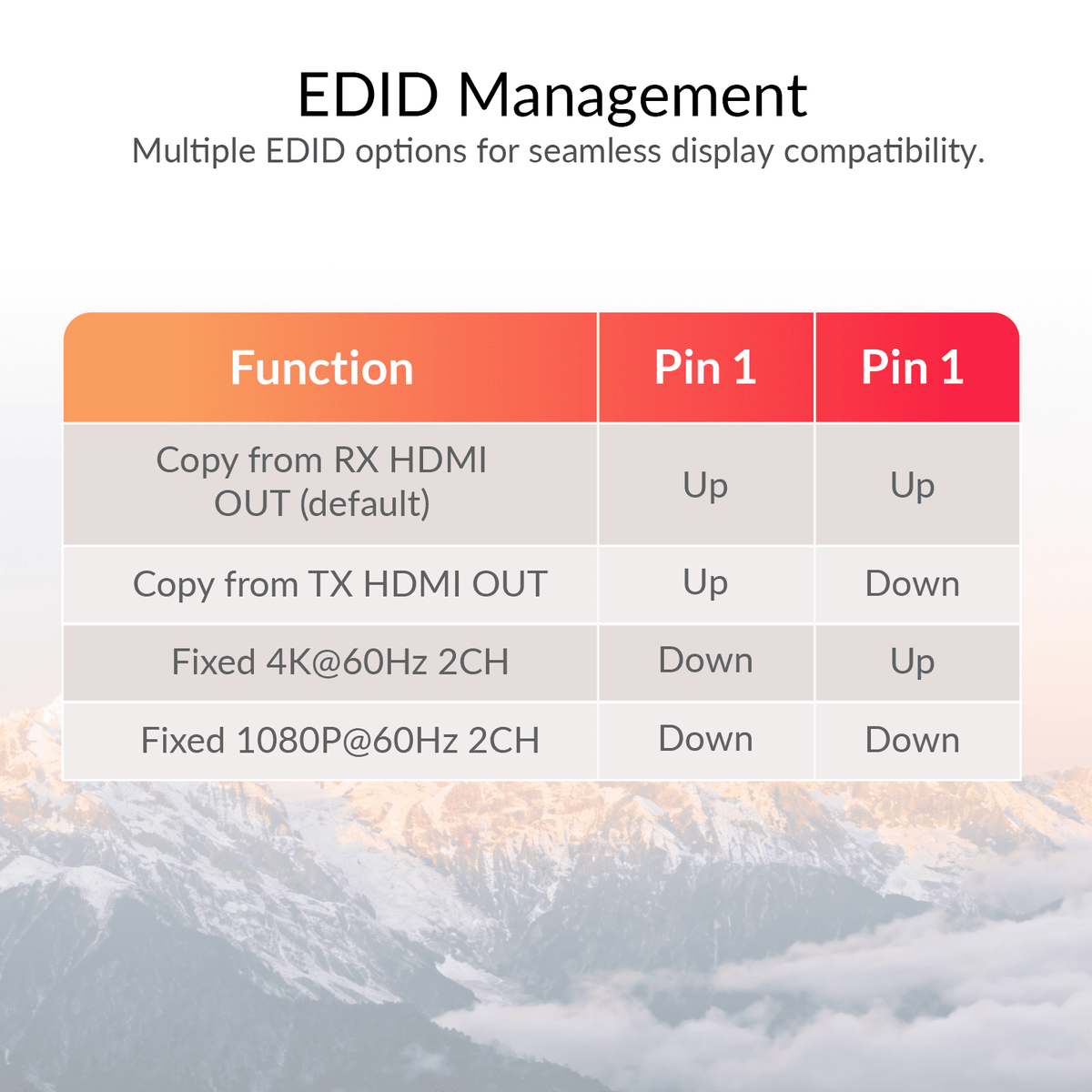

What is the DIP switch for?
It sets RS-232 functions, long-reach or HDBaseT mode, and EDID; set both units to match.
