Keep the refresh rate. Lose the noise.
4KEX50-KVM lets a gaming PC or workstation live in another room without giving up speed. It extends 4K@60Hz — or up to 1080P@240Hz — plus four USB 2.0 ports up to 50m over one Cat cable, with zero latency.

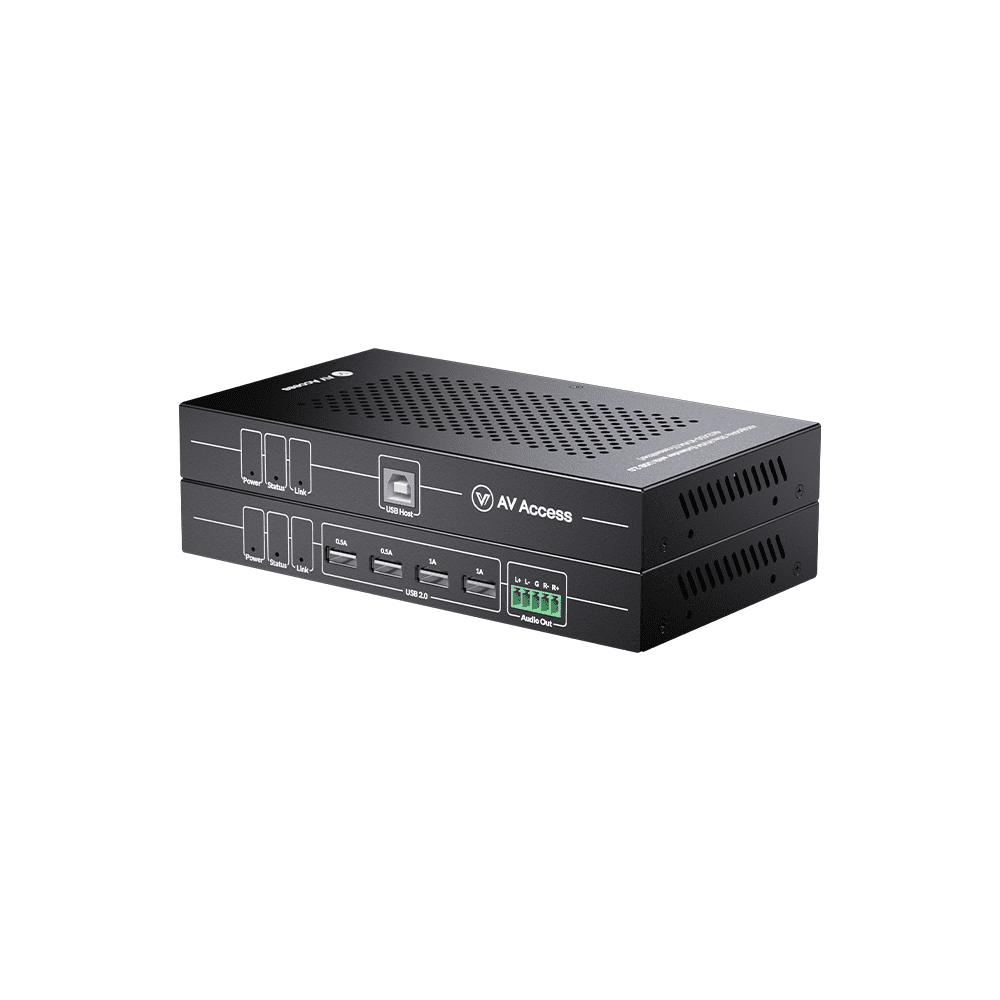

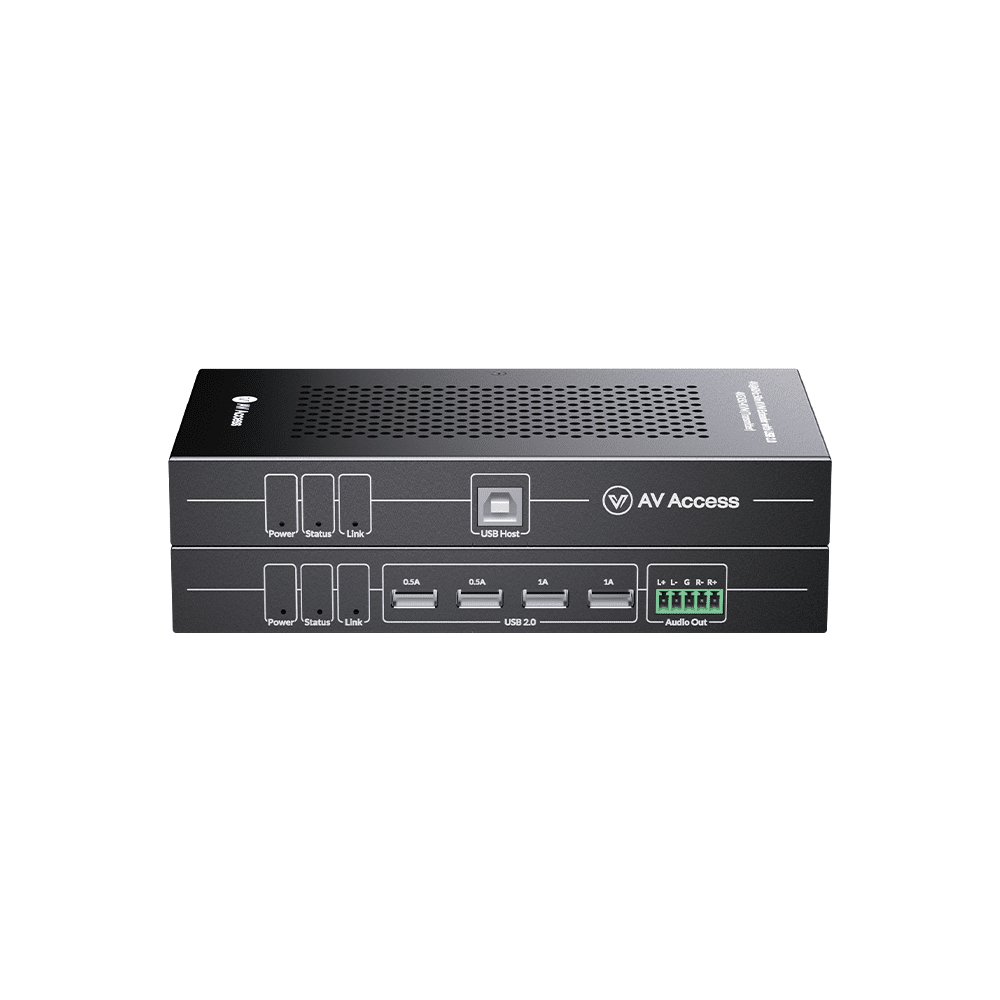

4KEX50-KVM

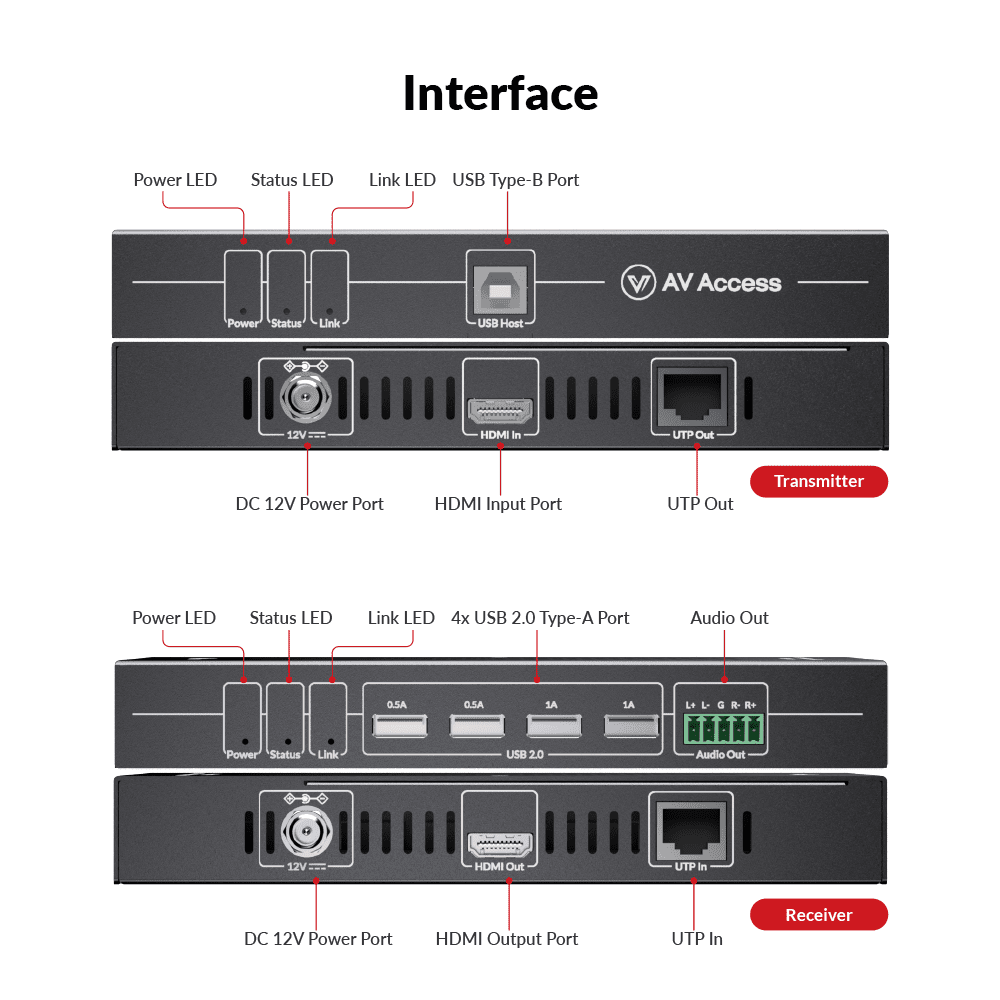

Know what connects where.
Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
Made for high refresh
Pass 1080P at 240/165/144Hz or 1440p at 144Hz for smooth gaming, trading and CAD — with no added latency.
Four USB 2.0 ports
Two of the four receiver ports supply 1A for power-hungrier peripherals such as lit keyboards or headsets.
Tidy and simple
One-way PoC runs the pair from one 12V adapter, and a Phoenix audio port extracts sound for speakers or an amplifier.
Make sure it fits your setup.
Direct cable only
Does not work through an Ethernet switch; for network extension use 4KIP100-KVM.
One-to-one
One transmitter pairs with one receiver.
Splitters and switches
Can be used with an AV Access HDMI splitter or switch at the source.

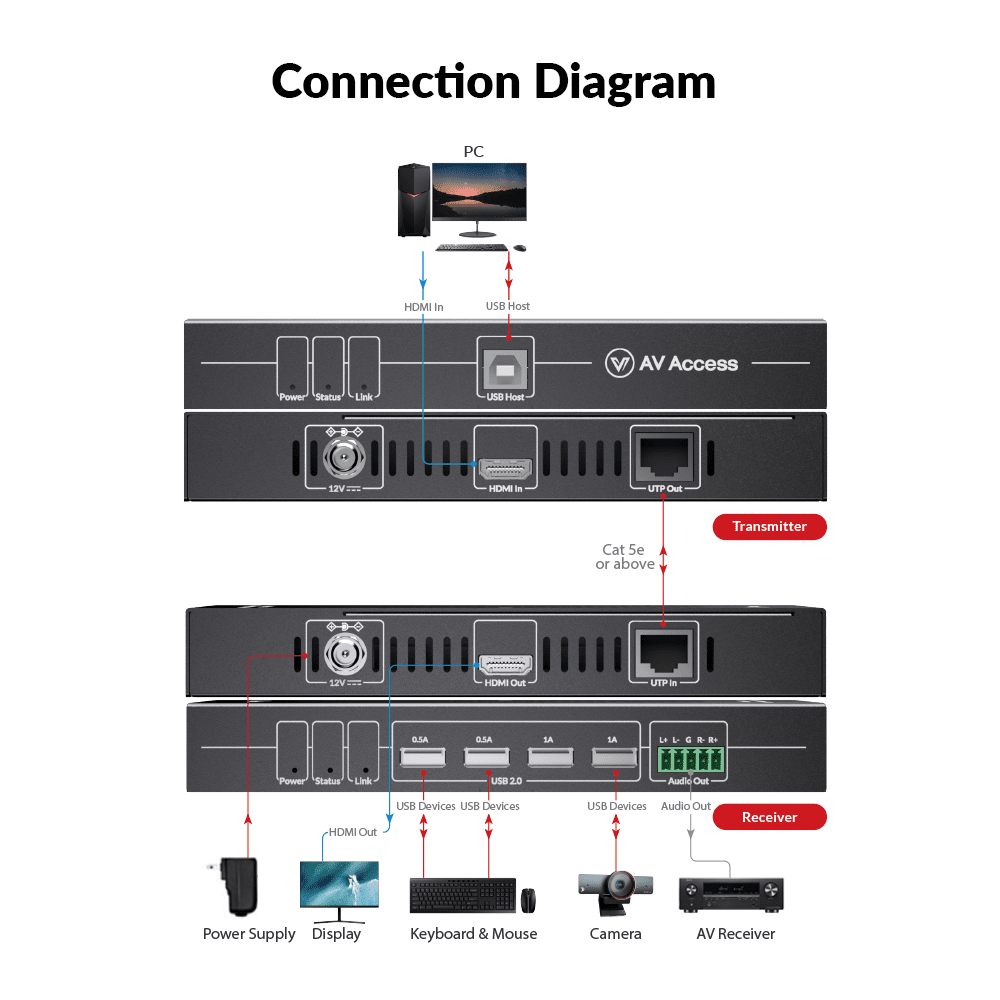

From unboxing to connected.
Connect the PC
HDMI and USB to the transmitter.
Run the Cat cable
Up to 50m to the receiver.
Connect peripherals
Monitor, keyboard, mouse and headset at the RX.
Power
12V adapter at the TX; PoC powers the RX.
4KEX50-KVM at a glance.
| Model | 4KEX50-KVM (TX + RX kit) |
|---|---|
| Video | HDMI, 4K@60Hz 4:4:4 8-bit, HDCP 2.2 |
| High refresh | 1080P@240/165/144Hz; 1440p@144Hz |
| Range | 50m over Cat 5e/6/6A/7 |
| USB | 4× USB 2.0 (2× with 1A) |
| Audio | PCM 2.0; up to 5.1 compressed; Phoenix out |
| Data rate | HDMI 18Gbps; USB 480Mbps |
| Power | DC 12V 3A, one-way PoC |
| Power consumption | 32W max |
| Size / weight | 180×25×100mm; 0.33kg per unit |
A little clarity before you buy.
Does it work with a network switch?
No. It is a direct point-to-point extender. Choose 4KIP100-KVM for use over a network.
Can one transmitter feed several receivers?
No, one transmitter works with one receiver.
Will it work with an HDMI switch or splitter?
Yes, it works with AV Access HDMI splitters and switchers.
