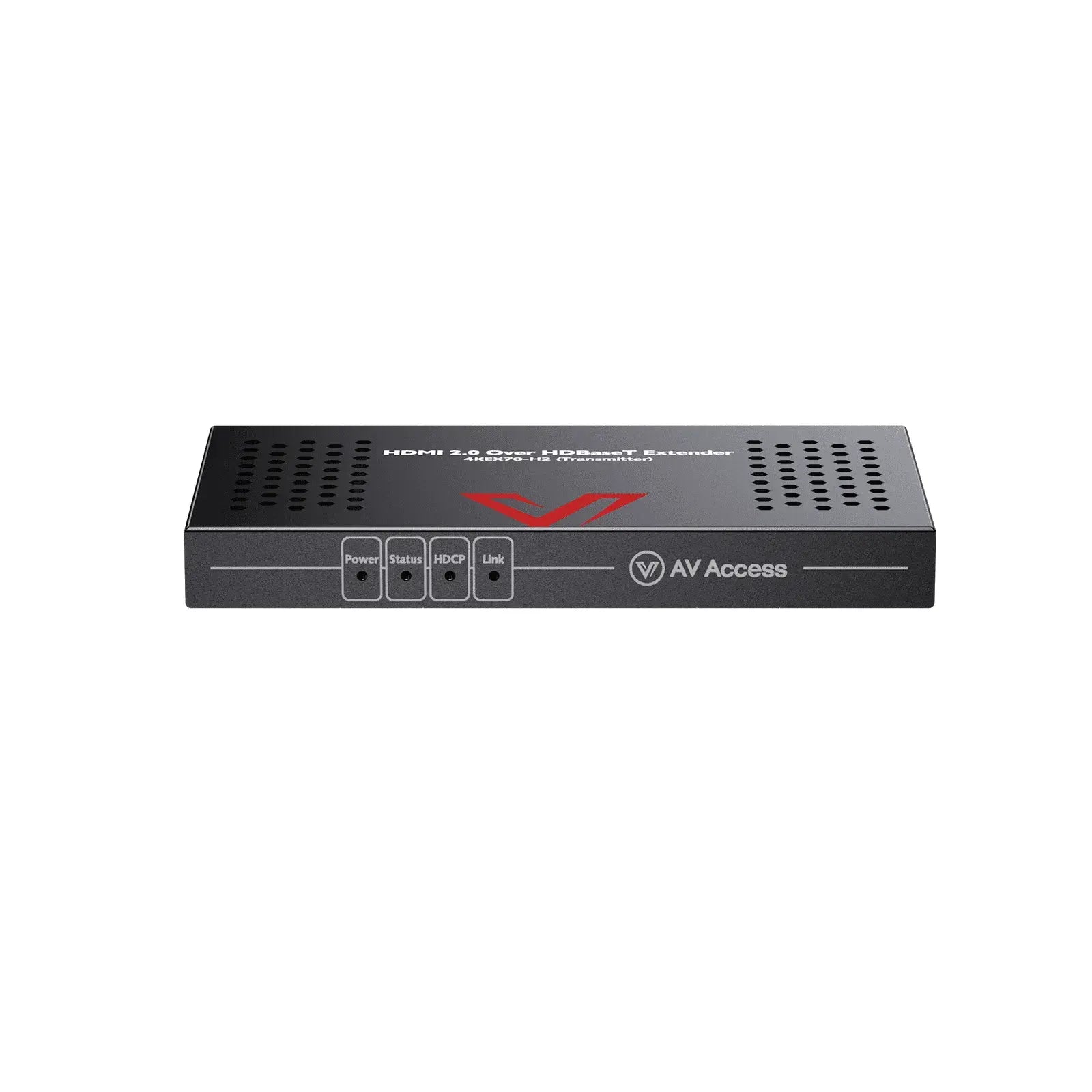

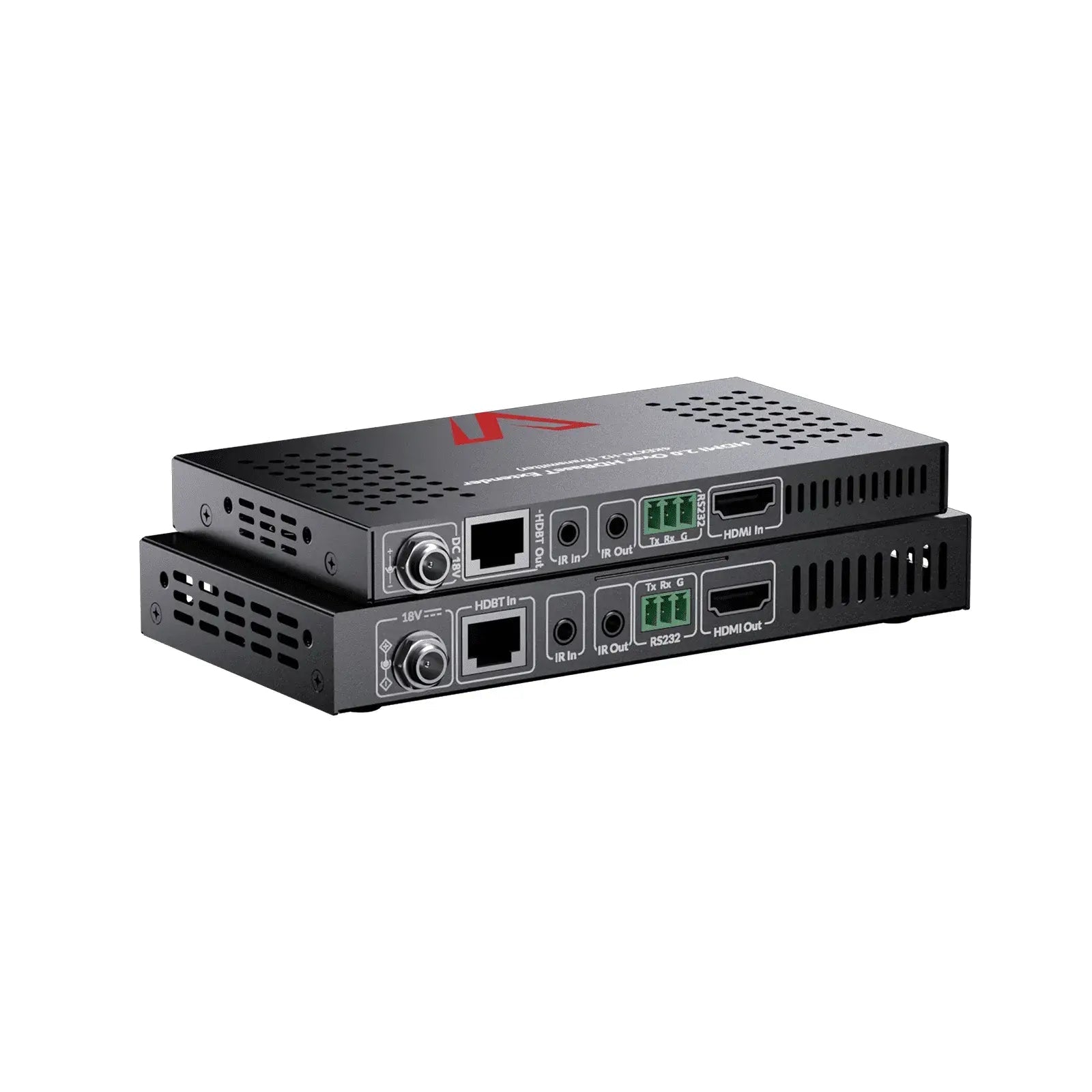

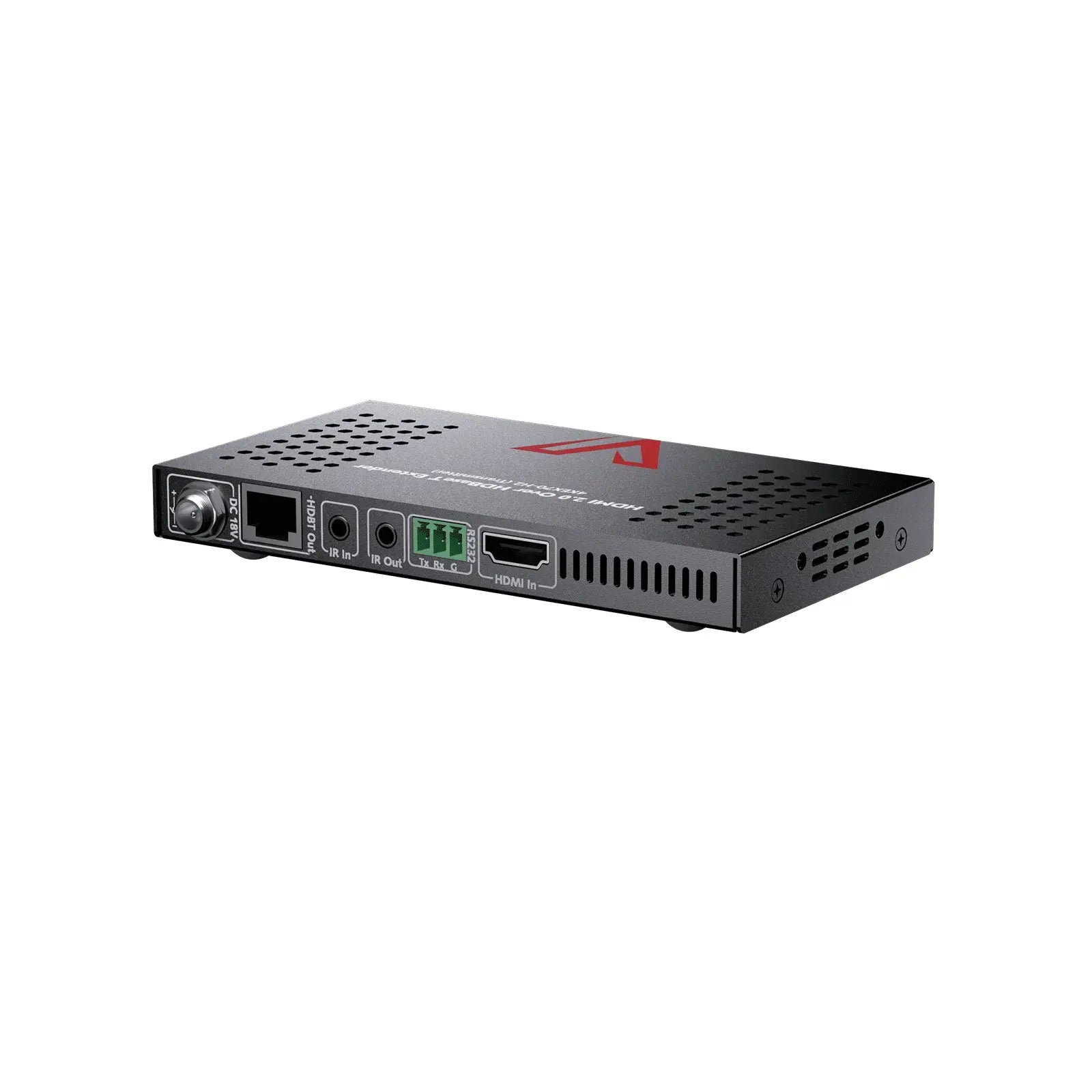

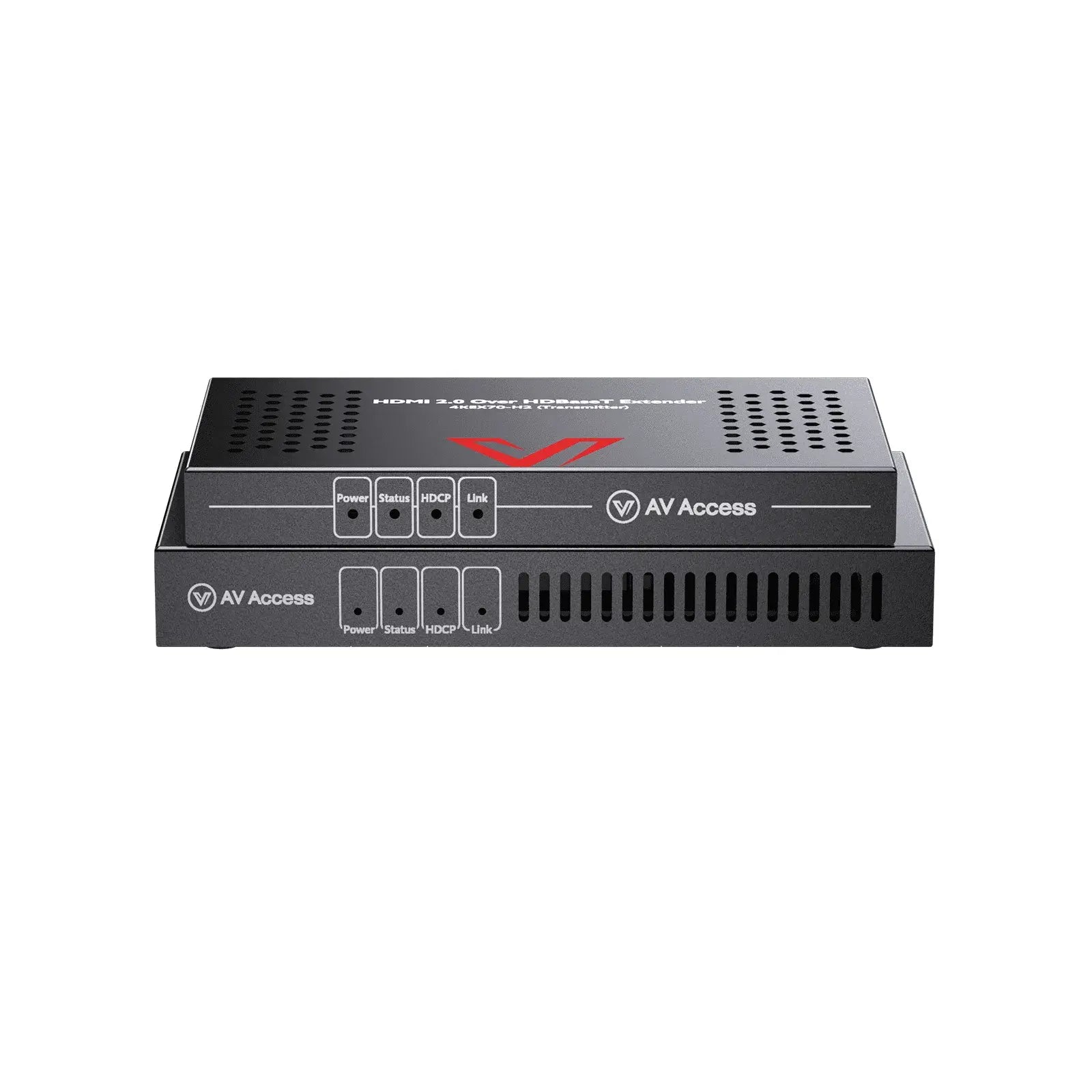

4KEX70-H2 4K HDMI extender supports resolutions up to 4K@60Hz 4:4:4 8bit and HDCP 2.2, transporting HDMI signals up to 131ft (40m) at 4K and up to 230ft (70m) at 1080P via a CATX cable, along with bi-directional IR and power. The transmitter and receiver are easy to install. They are space saving and offer ideal solutions for homes, offices, digital entertainment centers, control centers, conference rooms, schools and corporate training environments.
Notes:
1. This product is a transmitter and receiver kit. We don’t sell them separately.
2. One transmitter can work with only one receiver.
Main Features:
The extender applies HDBaseT technology and supports resolutions up to 4K@60Hz 4:4:4 8bit and HDCP 2.2, transporting HDMI signals up to 131ft (40m) at 4K and up to 230ft (70m) at 1080P via a CATX cable. HDBaseT extender kits are more versatile in the AV data tranmission and distribution.
With HDMI 2.0 technology which supports up to 4K@60Hz (4:4:4) HDR 3D resolution, the extender brings ultra-high definition picture with more vivid visual effect and no signal loss or delay.
The extender supports Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master and LPCM 2.1/5.1/7.1CH, so it can work perfectly with AV receiver, home cinema, speaker, amplifier, etc.
The extender is compatible with the latest HDMI source and display devices, such as Apple TV 4K, Roku 4, Amazon Fire TV 4K, Cisco cable box, Comcast, Xbox One X, PS4 Pro, Vizio TV, Sky Q. No more hesitation on choosing HDR or 4K@60hz for you could have both
The extender provides bi-directional PoE, enabling only one power adapter connected to either transmitter or receiver to power both units. Bi-directional IR pass through allows you to control the source at the display location or control the display at the source location with ease.
4K@60Hz (4:4:4) 18Gbps up to 40m/131ft：
1080P@60Hz up to 70m/230ft, Support Dolby vision up to 4K@30.
HDCP2.2 with Excellent Audio Pass through：
Backwards support HDCP1.4 and Dolby Atmos, DTS: X, DTS-HD, Master Audio, True-HD, PCM7.1.
Delicate Design and Easy Installation：
Small metal casing with mounting ear makes it fit in anywhere. Threaded power adapter for safety using.
Notes:
Please use HDMI 2.0 cables for better performance. And this extender does not support ARC function. Please refer to the 4KEX70-ARC-H2 HDMI ARC extender if you need.

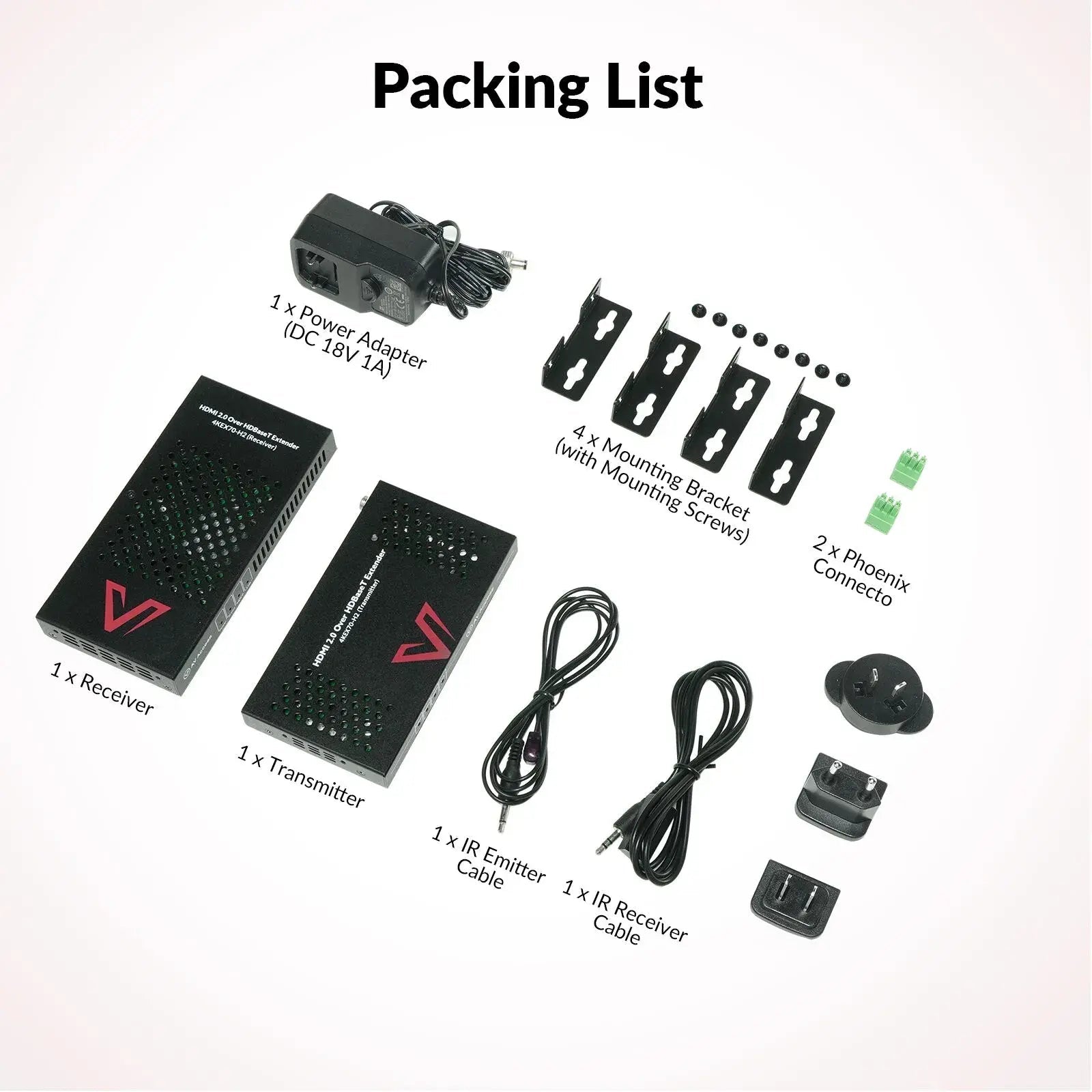

Packing Contents:
