Every source, on any screen, over your network.
4KIPJ200D is the display end of the 4KIPJ200 KVM over IP system. Connected to a standard Gigabit switch, it receives 4K@60Hz video, USB and audio from any 4KIPJ200E encoder, for control rooms and video walls.

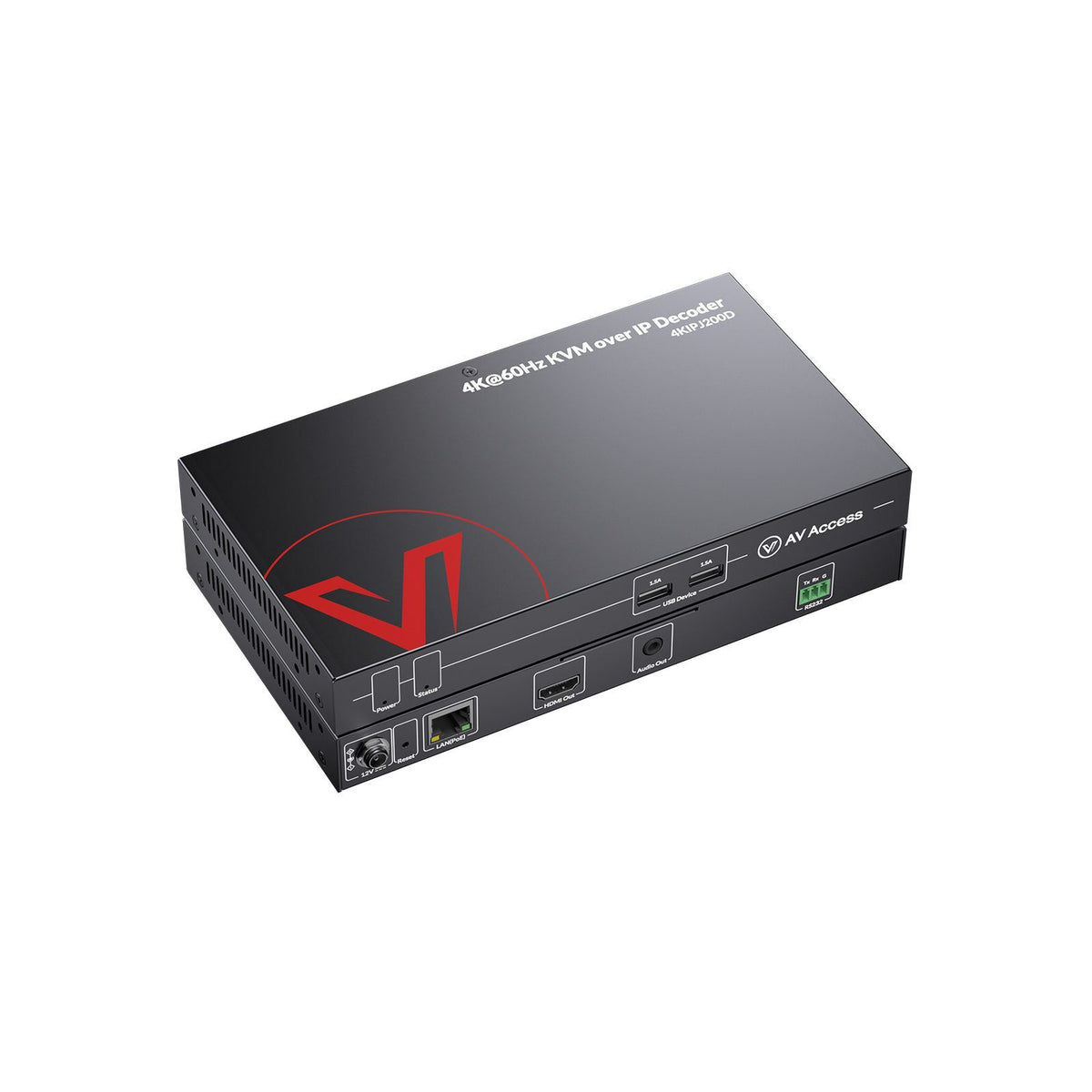

4KIPJ200D
Know what connects where.

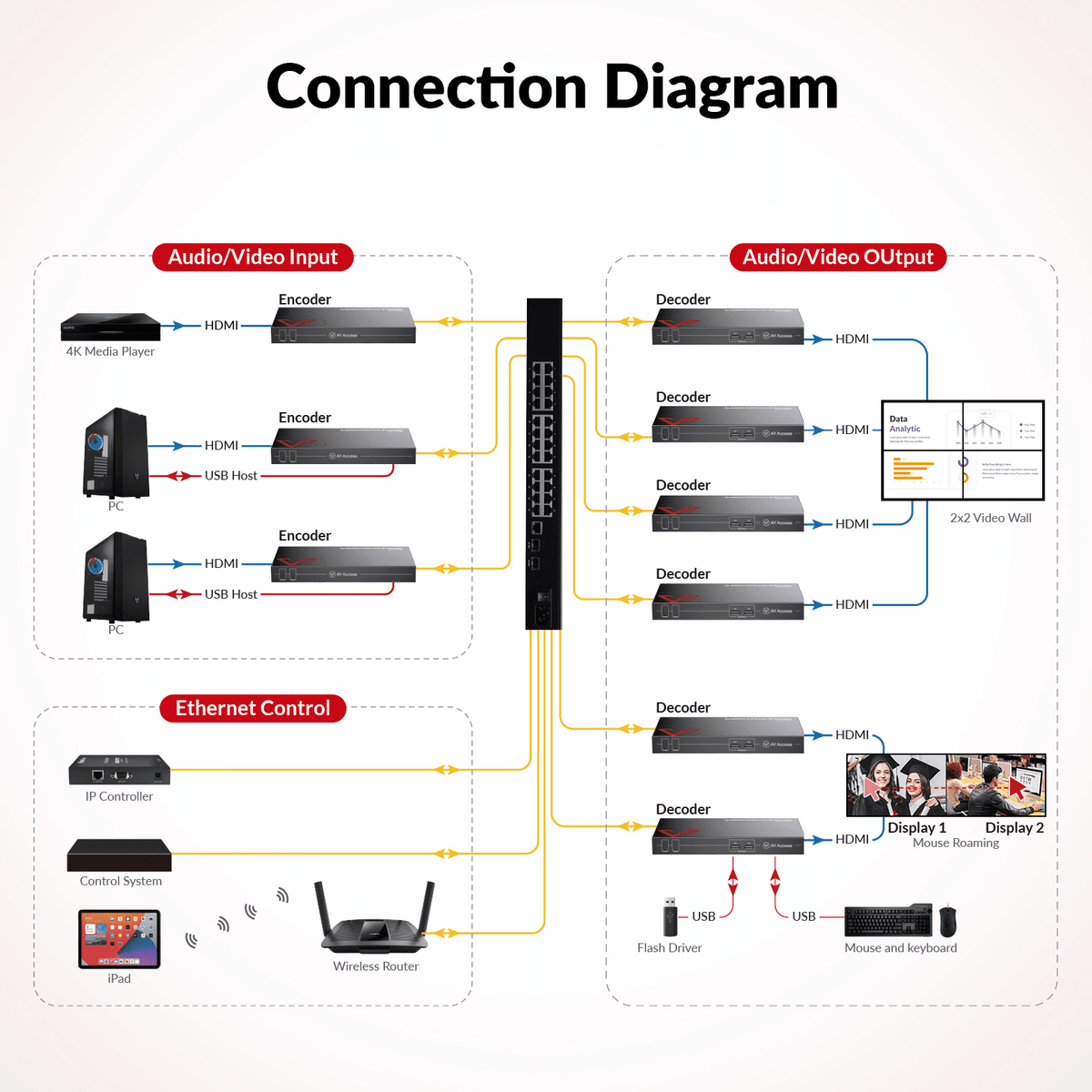

Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
Matrix switching over IP
Route any encoder to any decoder — one-to-one, one-to-many or many-to-many — using a standard Gigabit network.
Mouse roaming
Move the mouse across screens to control different computers from one keyboard and mouse, as if they were one desktop.
Video walls and visual control
Build walls up to 16×16 and manage the system from the HDIP-IPC controller, VisualM or the on-screen menu. PoE simplifies power.
Make sure it fits your setup.
Needs an encoder
The decoder must be used with 4KIPJ200E encoders in the same system.
Gigabit network
Use a Gigabit switch dedicated to AV where possible for the best performance.
Controller for larger systems
Add an HDIP-IPC controller for centralised routing and management.
From unboxing to connected.
Connect to the switch
LAN from the decoder to the Gigabit switch (PoE optional).
Connect the display
HDMI to the screen; USB keyboard and mouse.
Pair with encoders
Encoders on the same network are discovered.
Route and control
Use HDIP-IPC, VisualM or OSD to switch sources.

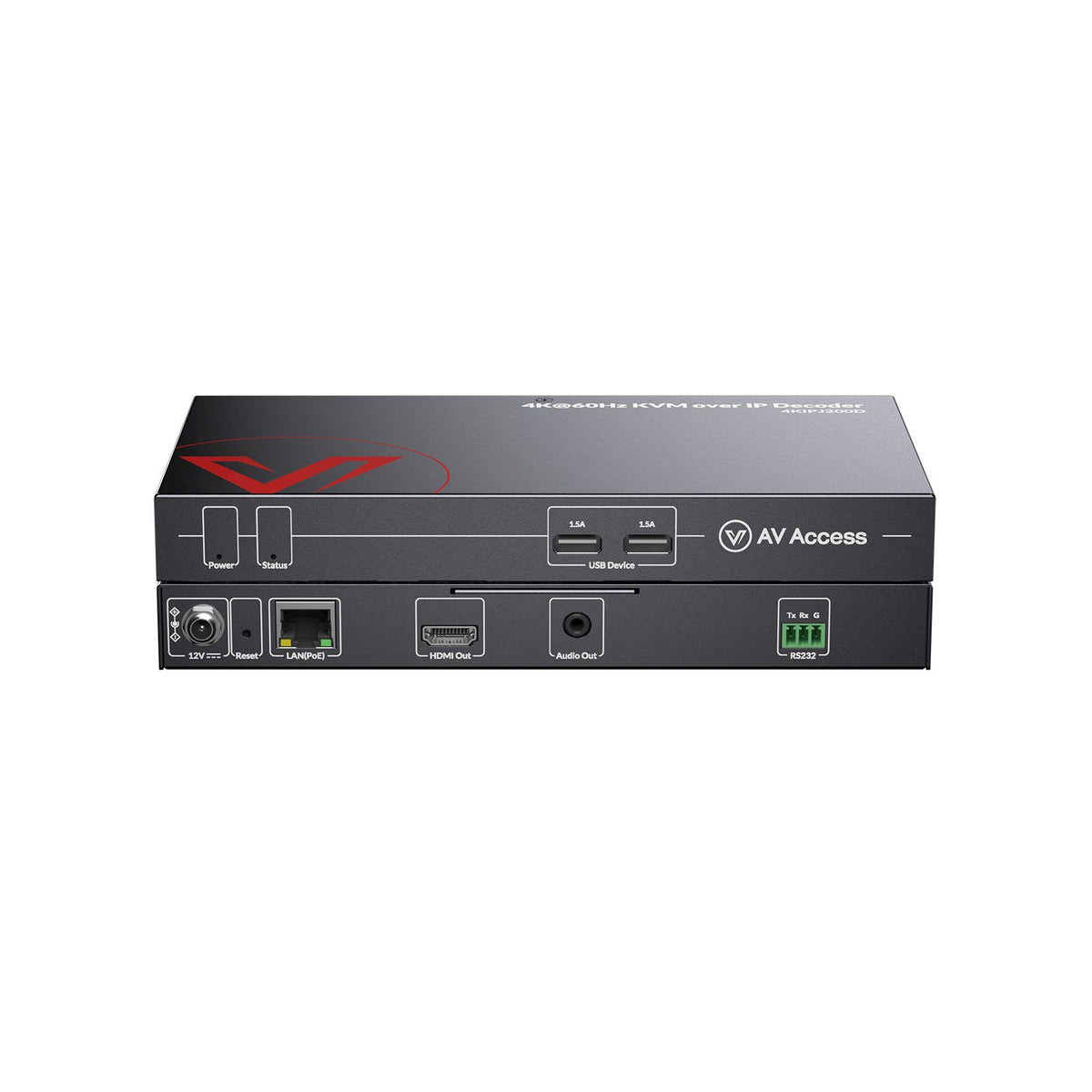

4KIPJ200D at a glance.

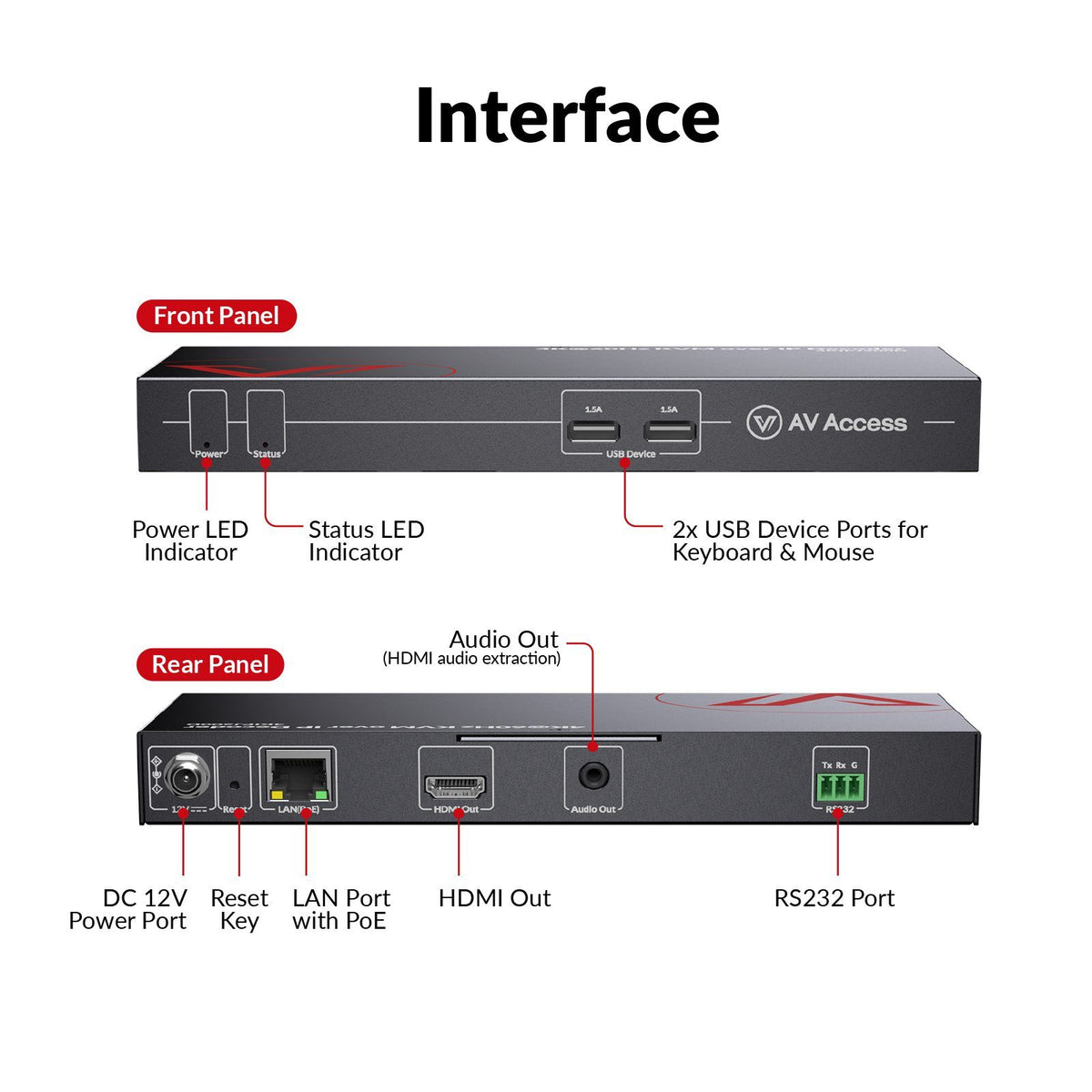

| Model | 4KIPJ200D decoder |
|---|---|
| Output | 1× HDMI 2.0, HDCP 2.2/2.3; 1× audio out |
| Resolution | 3840×2160@50/60Hz 4:4:4 |
| USB | 2× USB-A 2.0 |
| Network | 1× RJ45, Gigabit Ethernet |
| Control | HDIP-IPC, VisualM, OSD, RS-232 |
| Architecture | 1:1, 1:many, many:many |
| Scale | Up to 254 endpoints per LAN |
| Video wall | Up to 16×16 |
| Power | DC 12V 1A or PoE |
A little clarity before you buy.
What is KVM over IP?
A way to extend and switch keyboard, video and mouse signals over a standard IP network, so users can control computers from anywhere on the network.
How is 4KIPJ200 different from 4KIP200?
4KIPJ200 supports 4K@60Hz 4:4:4 with KVM (USB) control; 4KIP200 is 4K@30Hz video without KVM.
What latency should I expect?
Less than 4ms end to end.
