Put any computer on the network, in 4K.
4KIPJ200E is the source end of the 4KIPJ200 KVM over IP system. It streams a computer’s 4K@60Hz HDMI video, USB, audio and RS-232 over a standard Gigabit switch to one or up to 50 4KIPJ200D decoders.
4KIPJ200E

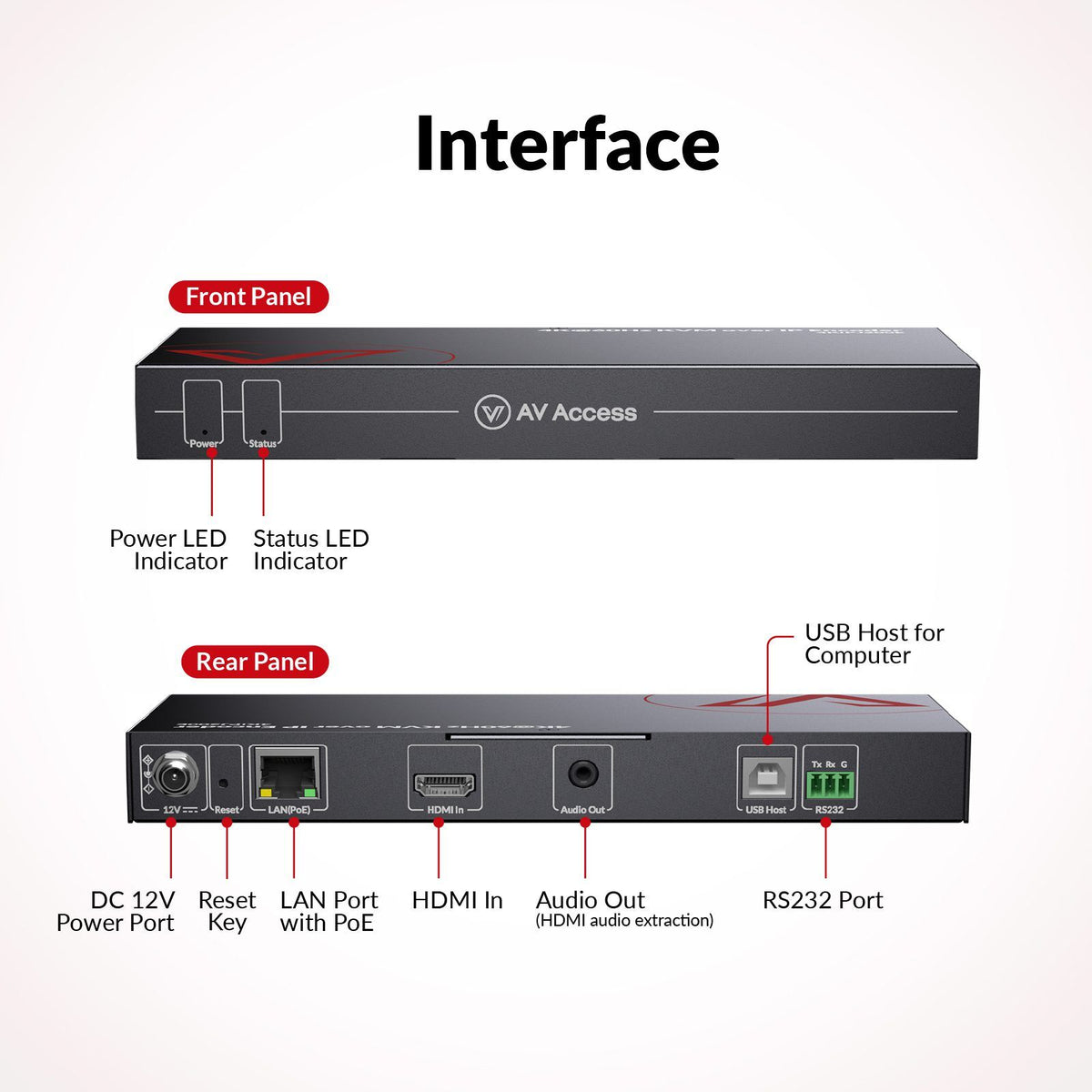

Know what connects where.

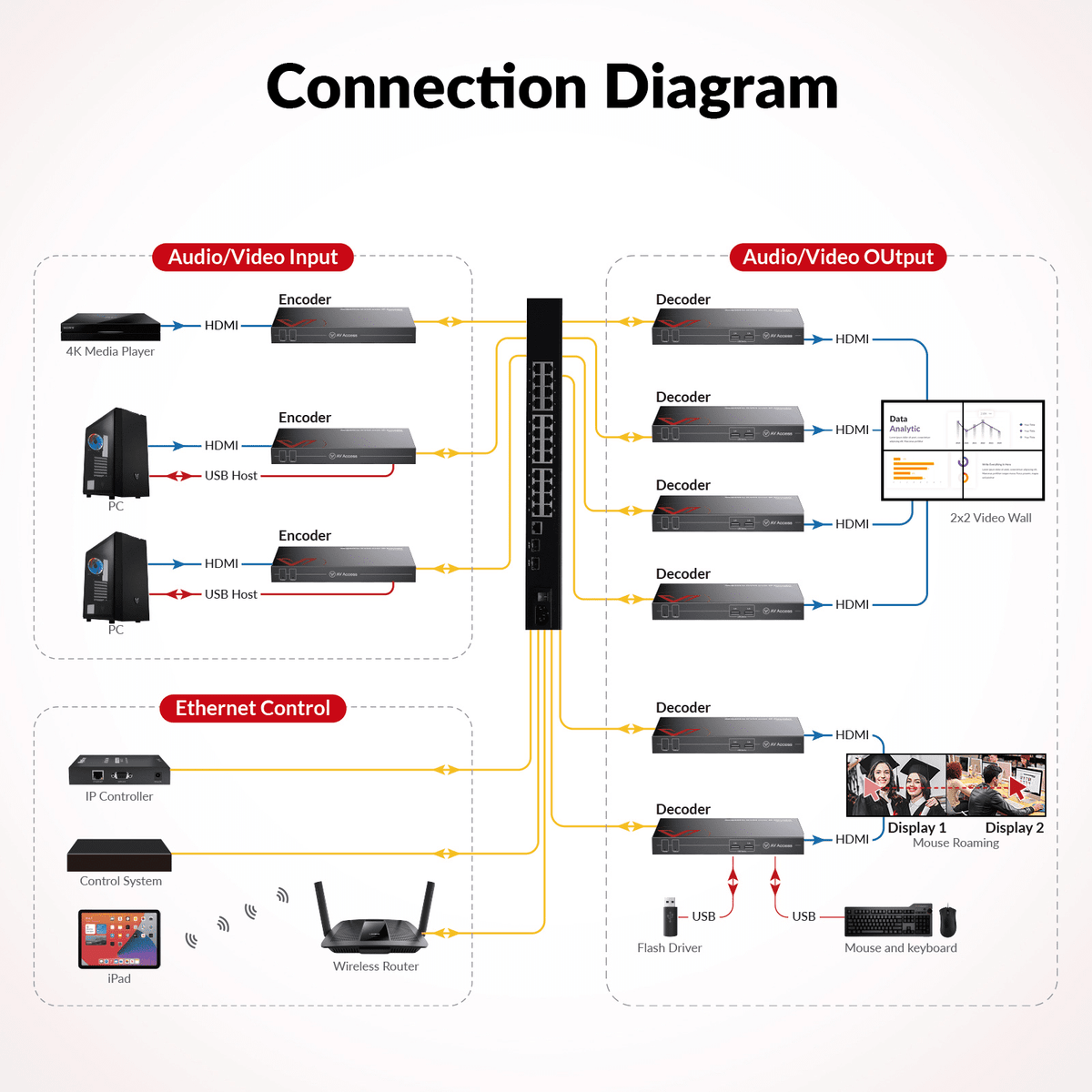

Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
From one PC to many screens
Send a single source to up to 50 decoders at once, or build a full matrix with multiple encoders on the same network.
Full KVM, not just video

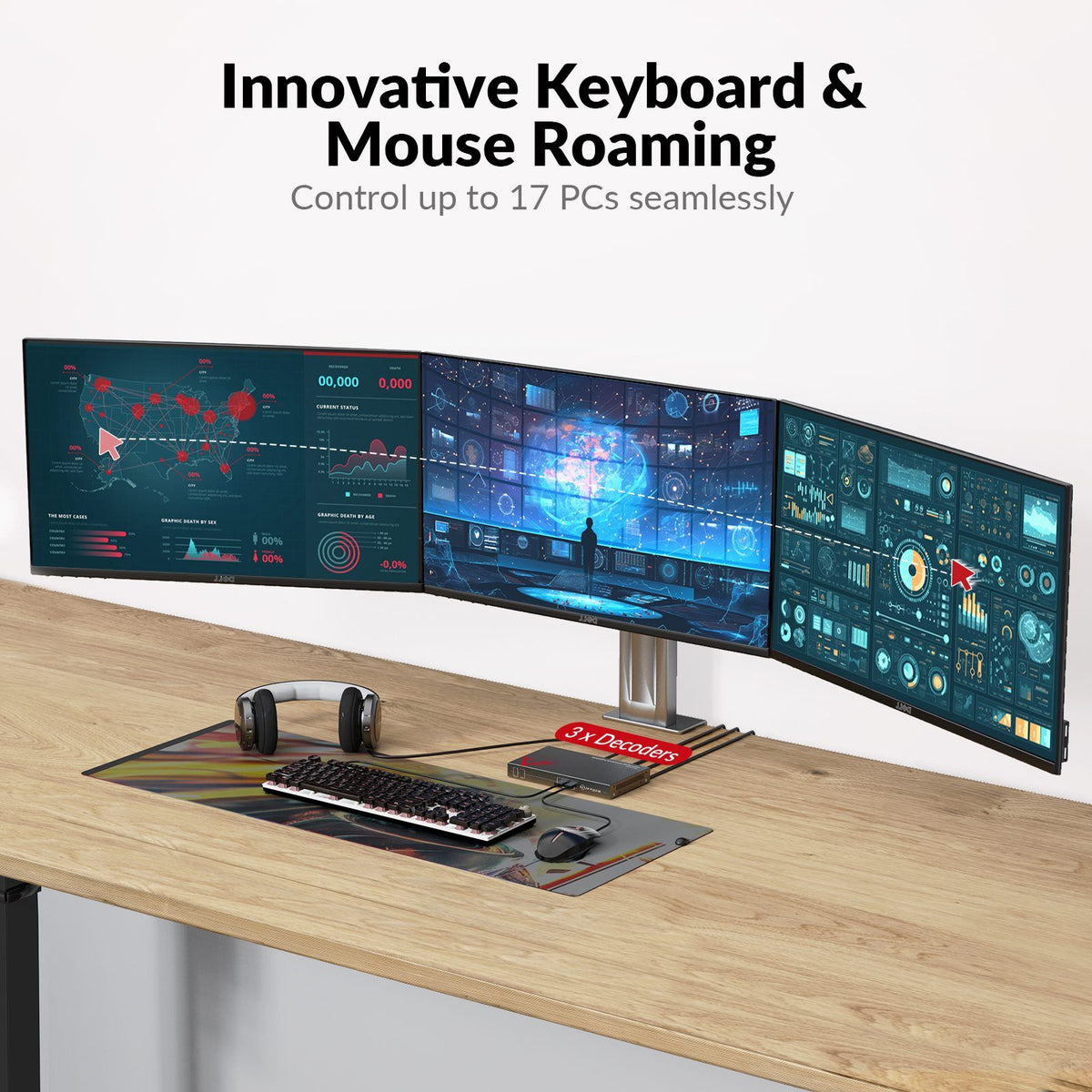

The USB-B port returns keyboard and mouse control from any decoder, with mouse roaming across screens.
Standard IT infrastructure
Works with managed or unmanaged Gigabit switches, controlled by HDIP-IPC, VisualM, the OSD or third-party control systems.
Make sure it fits your setup.
Needs a decoder
The encoder cannot work alone; pair it with 4KIPJ200D decoders.
Gigabit switch
Plan for a Gigabit Ethernet switch with enough ports (and PoE if used).
Controller for routing
Add HDIP-IPC for centralised control of larger systems.
From unboxing to connected.
Connect the source
HDMI and USB-B from the computer.
Connect to the switch
LAN to the Gigabit switch; PoE or 12V power.
Add decoders
Decoders on the network find the encoder.
Route
Switch sources from the controller or app.
4KIPJ200E at a glance.
| Model | 4KIPJ200E encoder |
|---|---|
| Input | 1× HDMI 2.0, HDCP 2.2/2.3; 1× USB-B (KVM) |
| Resolution | 3840×2160@50/60Hz 4:4:4 |
| Audio | 1× audio out |
| Network | Gigabit Ethernet, no IGMP required |
| Control | HDIP-IPC, VisualM, OSD, RS-232 |
| Distribution | Up to 50 decoders per encoder |
| Scale | Up to 254 endpoints per LAN |
| Included | 12V adapter, Phoenix connector, brackets |
| Power | DC 12V 1A or PoE |
A little clarity before you buy.
Can the 4KIPJ200E work alone?
No. It must be used with compatible 4KIPJ200D decoders.
What resolution does it support?
HDMI up to 4K@60Hz 4:4:4, with USB and audio.
How is it controlled?
Through the web interface, VDirector app, RS-232 or third-party control systems.
