Four computers. One desk. One click.
4KSW41C-KVM lets one keyboard, mouse and 4K monitor control four computers — one by USB-C with 60W laptop charging, three by HDMI — with a built-in USB 3.0 hub and high refresh rates for work and play.

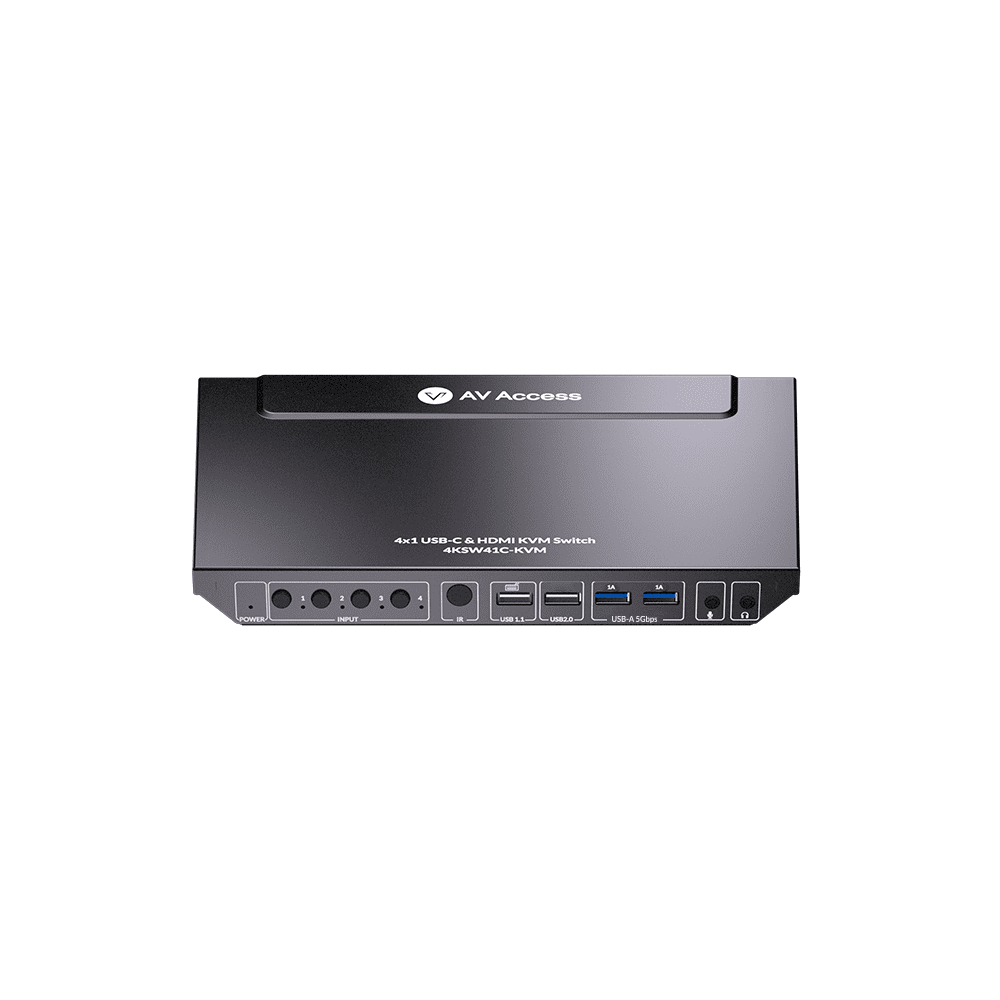

4KSW41C-KVM

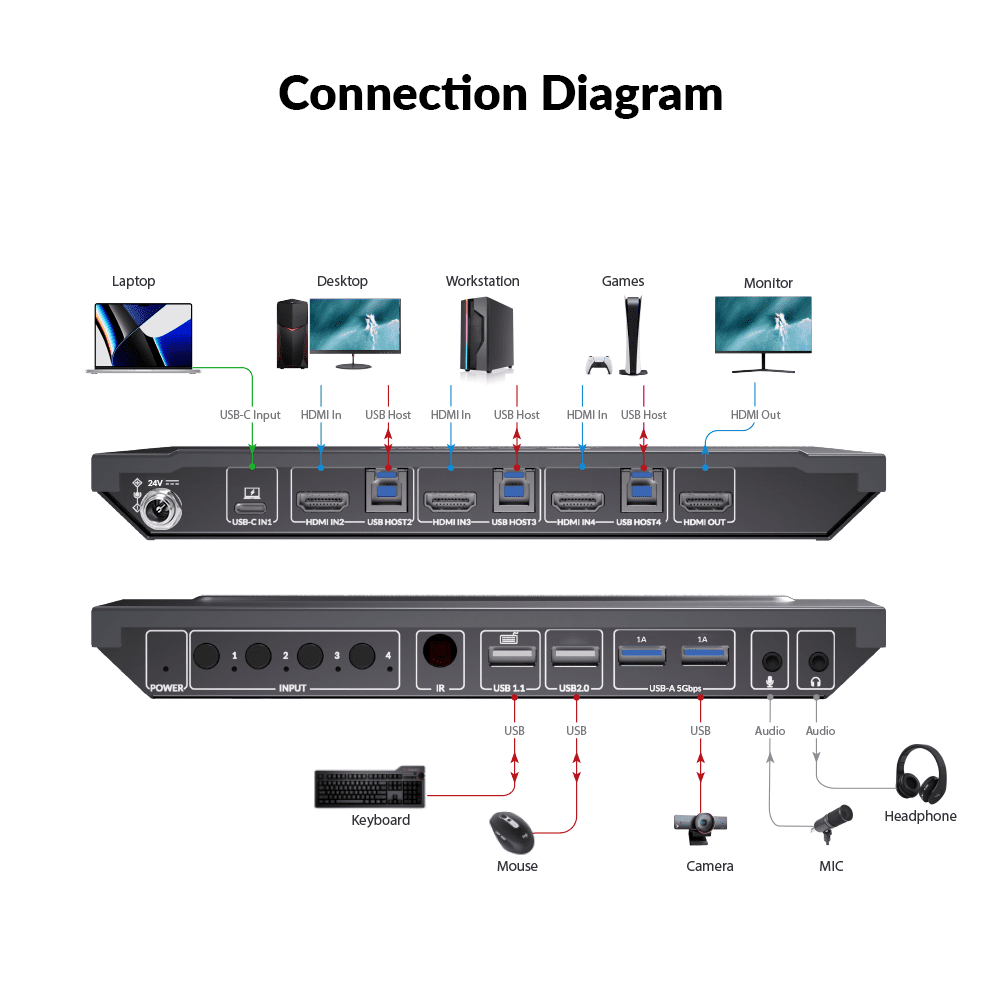

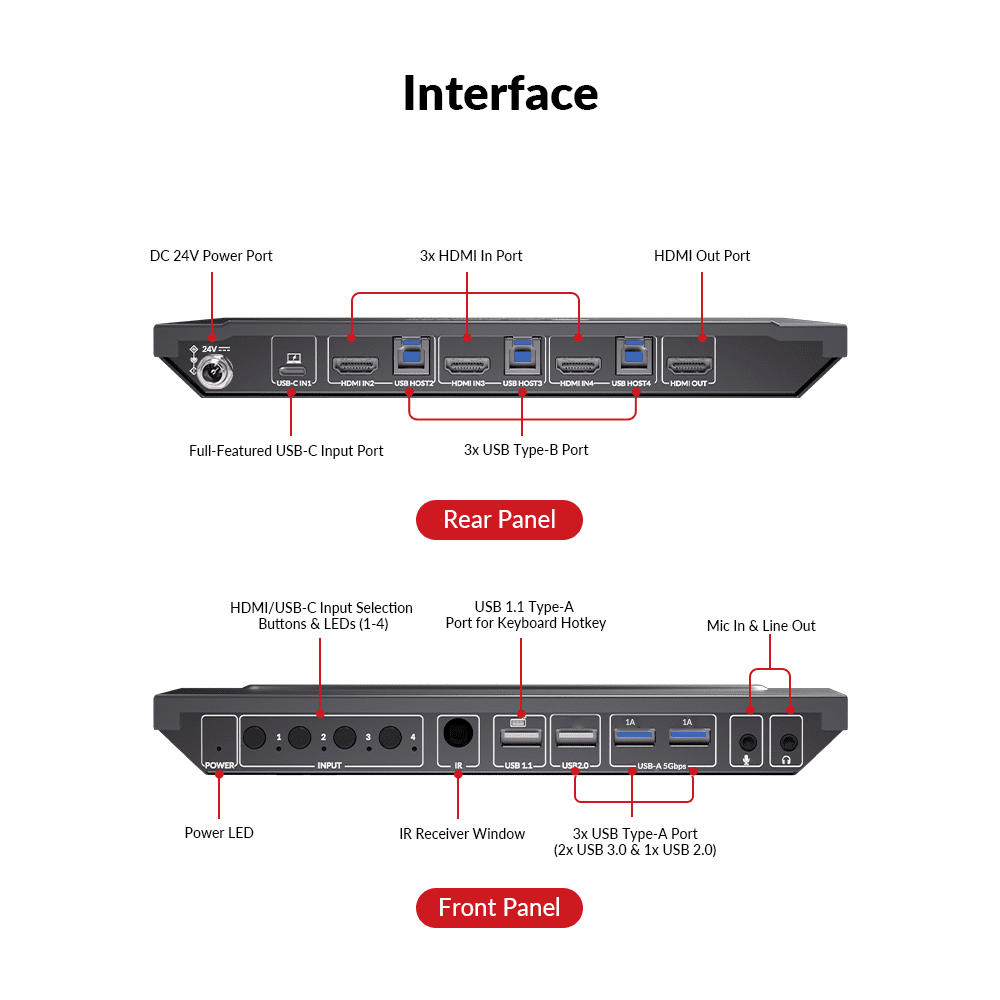

Know what connects where.
Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
A full USB-C port
One cable connects the laptop for display, USB and up to 60W charging — no separate charger at the desk.
Fast enough for gaming
Supports 1080P@240/165Hz and 1440p@144/120Hz, so a gaming PC and work laptops can share the same monitor.
Switch your way
Front-panel buttons, IR remote or keyboard hotkeys. EDID emulation keeps windows in place and auto wake-up rouses sleeping PCs.
Make sure it fits your setup.
USB-C resolution
Over USB-C, 4K@60Hz runs at 4:2:0 (or 4K@30Hz 4:4:4). HDMI inputs support full 4K@60Hz 4:4:4.
USB-C must carry video
The laptop’s USB-C port must support DisplayPort Alt Mode.
One monitor output
This model drives a single display.
From unboxing to connected.
Connect the computers
USB-C laptop and up to three HDMI + USB-B PCs.
Connect the desk
Monitor on HDMI out; keyboard, mouse and USB devices.
Power on
Connect the 24V adapter.
Switch
Use buttons, remote or hotkeys.
4KSW41C-KVM at a glance.
| Model | 4KSW41C-KVM |
|---|---|
| Inputs | 1× USB-C, 3× HDMI, 3× USB-B host |
| Output | 1× HDMI |
| Video | HDMI 2.0b 4K@60Hz 4:4:4; USB-C 4K@60Hz 4:2:0 |
| High refresh | 1080P@240/165Hz; 1440p@144/120Hz |
| USB | 2× USB 3.0, 1× USB 2.0, 1× USB 1.1 |
| Charging | Up to 60W via USB-C |
| Control | Buttons, IR remote, hotkeys |
| Power | DC 24V 5A; 72.7W max |
| Size / weight | 230×26×143mm; 0.86kg |
A little clarity before you buy.
What is a USB-C HDMI KVM switch?
A device that lets one keyboard, mouse and monitor control several computers — here, one USB-C and three HDMI computers.
Does it support 120Hz and 144Hz?
Yes: 1080P at up to 240Hz and 1440p at 144/120Hz.
What makes it different?
A full-featured USB-C input with charging, high refresh rates, a USB 3.0 hub, EDID emulation and PC wake-up.
