Bring people, presentations and room devices together.
eShare W90 gives a shared room a central place for wired and wireless presentation. Connect the display and supported USB meeting equipment once, then choose the input and sharing method that suit the presenter’s device.

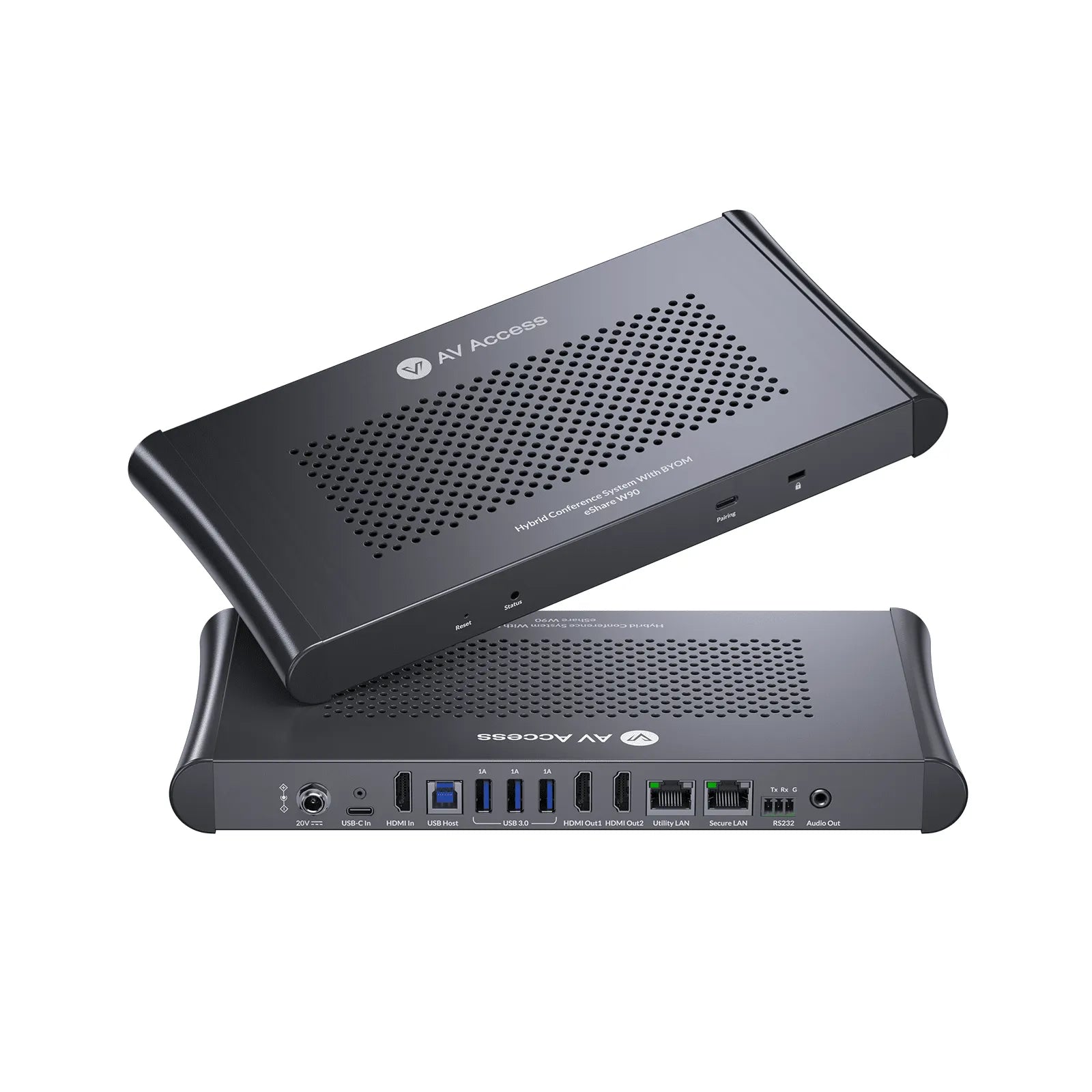

eShare W90

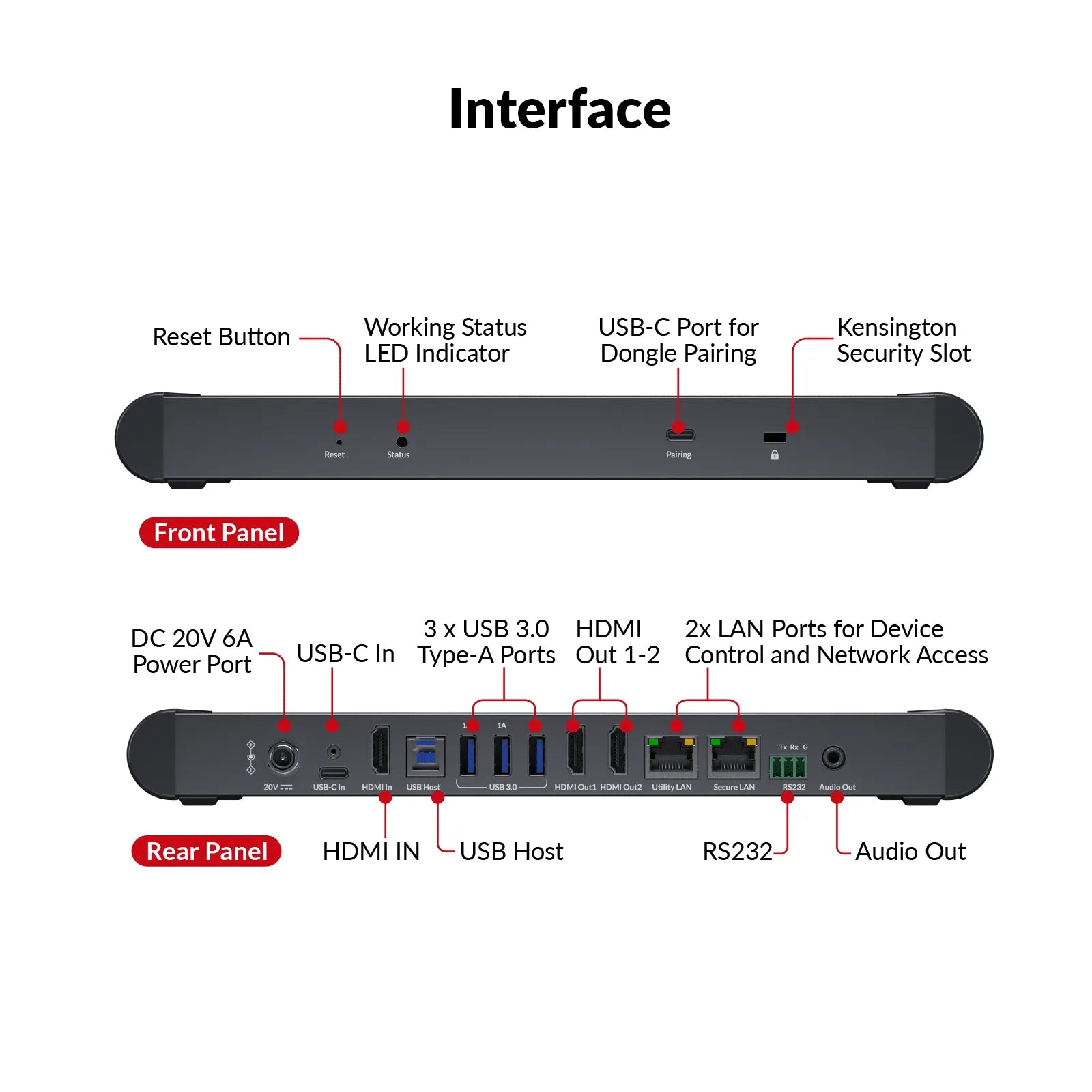

Know what connects where.
Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
Give guests a choice of connection
Use the supported wired inputs, AirPlay or Miracast, or pair the matching eShare D30 / supported D20 casting accessory. The matching casting dongle supports up to 4K30. Wireless resolution and stability depend on the connection mode and room conditions.
Let the screen arrangement serve the meeting

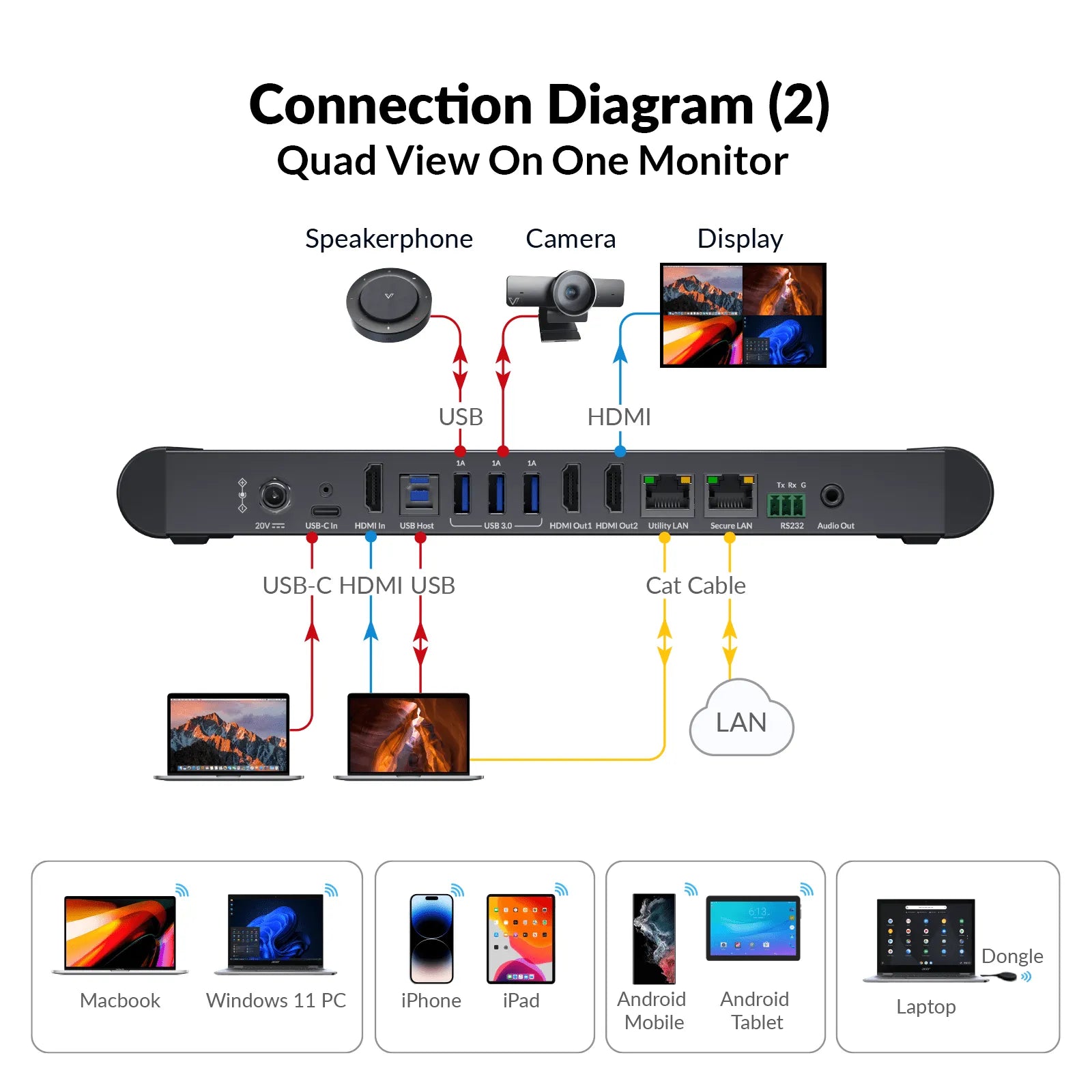

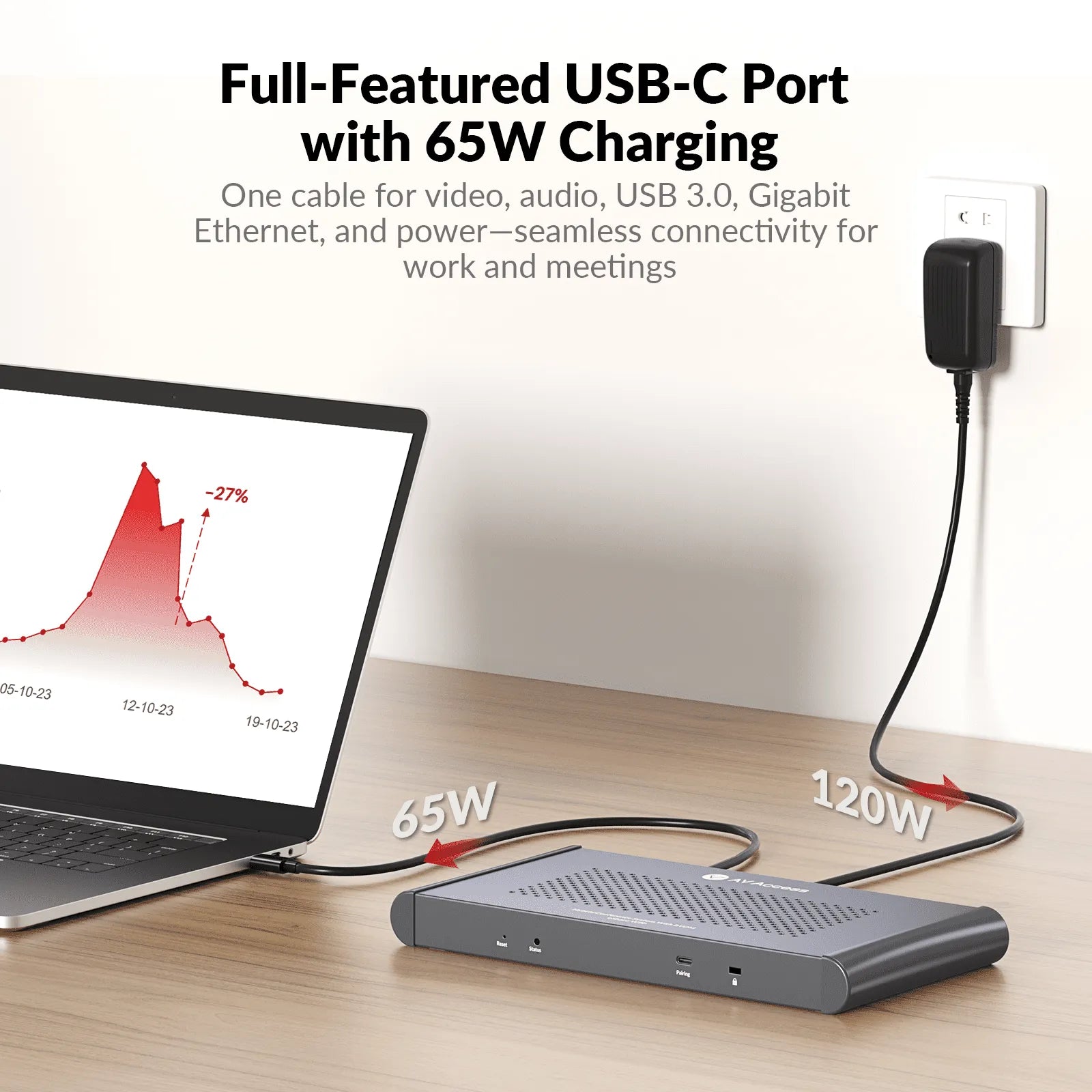

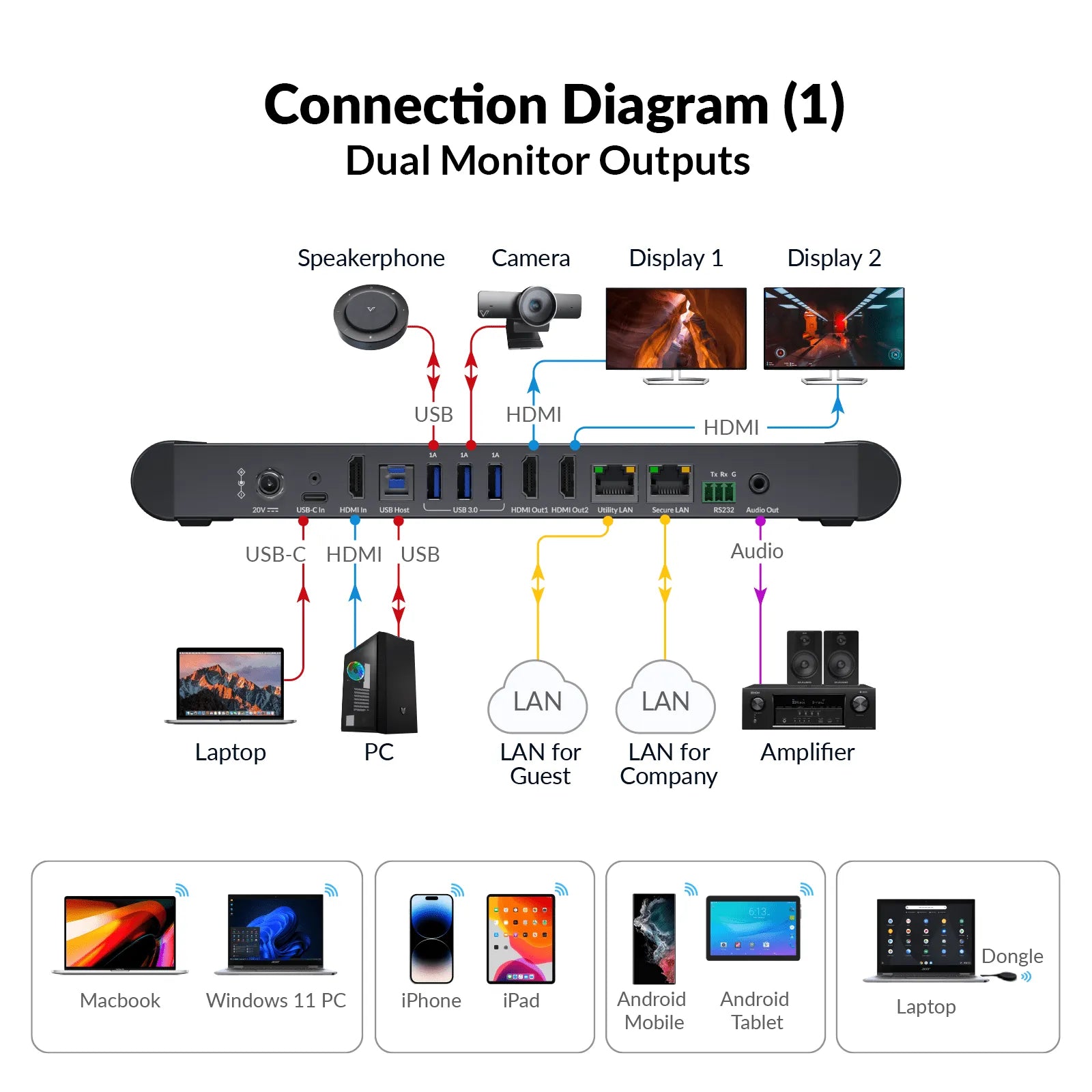

Quad view can place up to four sources on one display, while dual HDMI outputs support a room with two screens. The USB-C wired input can also supply up to 65W to a compatible laptop.
Understand how the room USB devices are shared
A paired compatible dongle can give the presenter’s laptop wireless access to supported room USB conferencing devices. Select the room camera, microphone and speaker in the meeting app; screen casting alone is a separate function.
Make sure it fits your setup.
Choose the matching dongle
eShare D30 / supported D20 is a separate accessory unless the selected offer explicitly includes it. Dongles are not universal receivers and must be paired with a compatible base.
Host and app support
Check the presenter device’s wired video or wireless casting capability. Protected content and operating-system restrictions can limit screen sharing.
Plan the complete room
Displays, cameras, speakerphones and the conferencing computer are separate equipment. W90 wired USB-C/HDMI inputs accept up to 4K30; HDMI Out 1 can output up to 4K60 and Out 2 up to 4K30. Output timing does not create extra frames in a 4K30 source.
From unboxing to connected.
Prepare the room
Connect the compatible base station to the display and room peripherals.
Choose a connection
Use the supported wired input or pair the matching wireless dongle.
Share your content
Connect the presenter’s device and select the required sharing mode.
Check meeting devices
In your meeting app, select the intended camera, speaker and microphone.
eShare W90 at a glance.
| Model | eShare W90 |
|---|---|
| Wired inputs | USB-C + HDMI |
| HDMI outputs | 2 |
| Wired source video | Up to 4K30 |
| Display output | HDMI Out 1 up to 4K60; Out 2 up to 4K30 |
| Multiview | Quad view |
| Room USB ports | 3 × USB 3.0 |
| Wireless methods | AirPlay, Miracast and compatible casting dongle |
| Matching dongle | eShare D30 / supported D20 |
| Wireless room USB | Supported through matching conferencing dongle |
| Laptop charging | Up to 65W through USB-C |
| Configuration | Web interface and documented on-screen/system controls |
A little clarity before you buy.
Is a casting dongle included?
Only if the selected product offer explicitly says it is a bundle. The compatible dongle is otherwise a separate accessory.
Does screen casting automatically share the room camera?
No. Screen casting and USB conferencing are different functions. Use the matched dongle’s wireless conferencing function and select the room devices in the app.
Does it run Teams or Zoom by itself?
No. The meeting application runs on a compatible computer. The base connects the room display and peripherals to that workflow.
