Up to ten IP endpoints, one tidy rack.

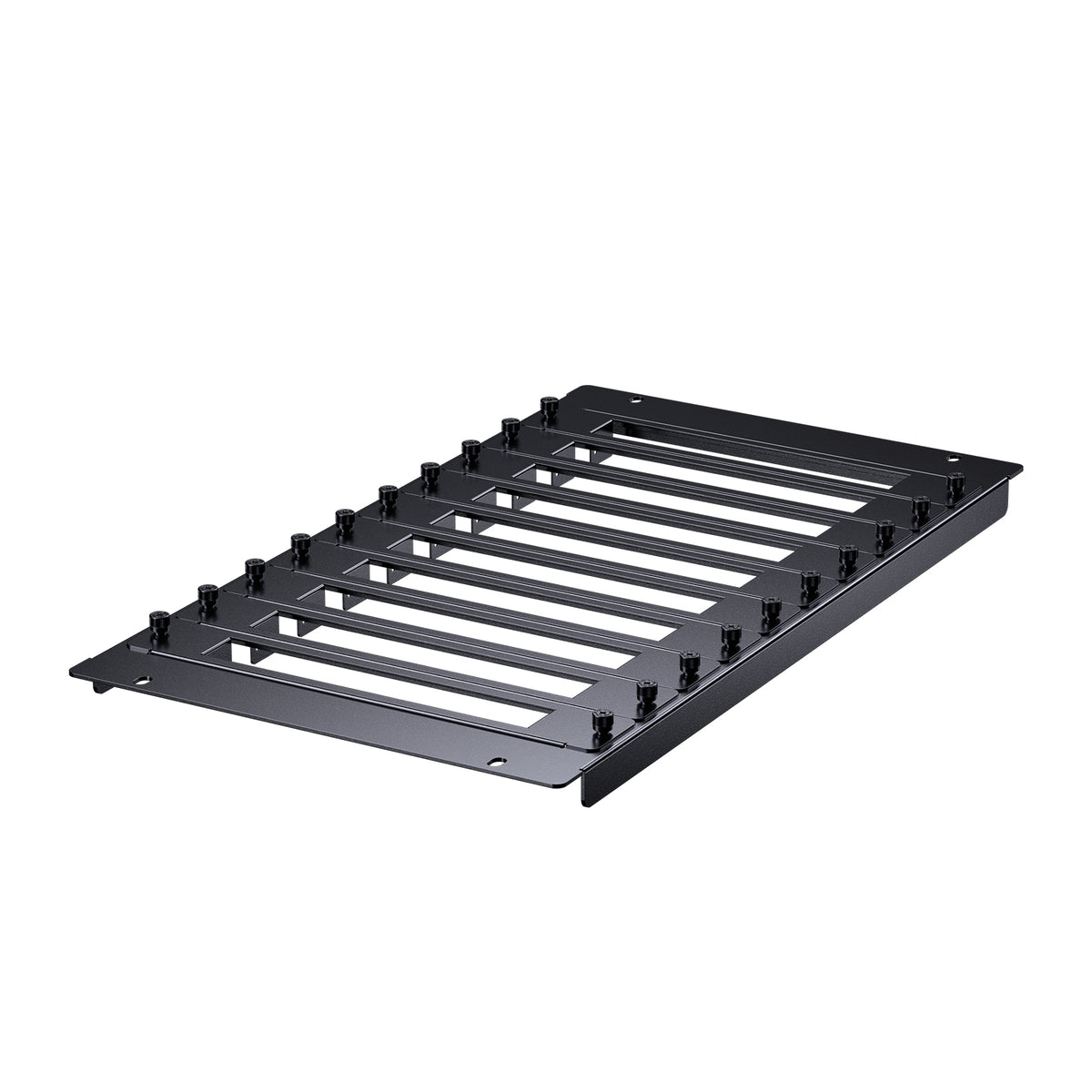

HDIP-6U is a 19-inch rack shelf for AV Access HDIP100 and 4KIP200 series encoders and decoders. It holds up to ten units side by side, so a whole AV over IP system can live neatly in a standard rack.
HDIP-6U
Know what connects where.
Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
Organise an IP system
Mount encoders and decoders together for clean cabling to the network switch and easy access for service.
Fits the series
Designed around HDIP100 and 4KIP200 series units so they sit securely side by side.
Standard 19-inch mounting
Fits common equipment racks used in AV, IT and control rooms.
Make sure it fits your setup.
Compatible units
Designed for HDIP100 and 4KIP200 series encoders and decoders.
Rack space
Allow 6U of rack height and suitable ventilation.
Units sold separately
Encoders and decoders are not included.
From unboxing to connected.
Fix the shelf
Mount HDIP-6U to the 19-inch rack rails.
Place the units
Seat up to ten encoders/decoders.
Secure
Fix units with the mounting hardware.
Cable up
Connect LAN, HDMI and power neatly.
HDIP-6U at a glance.
| Model | HDIP-6U |
|---|---|
| Type | 19-inch rack mount shelf |
| Rack height | 6U |
| Capacity | Up to 10 units |
| Compatible with | HDIP100 and 4KIP200 series |
| Mounting | Standard 19-inch rack rails |
| Included | Shelf and mounting hardware |
| Devices | Sold separately |
A little clarity before you buy.
Which products fit this shelf?
HDIP100 and 4KIP200 series encoders and decoders.
How many units does it hold?
Up to ten.
Are the encoders included?
No, HDIP-6U is the shelf only.
