A compact route to a remote 4K screen.
Place the source equipment where it belongs and keep the viewing area uncluttered. 4KEX60-H2 carries HDMI video and embedded audio between a matched transmitter and receiver over Cat6 or better for 4K; Cat5e or better for 1080p, making longer installed connections easier to plan.
4KEX60-H2

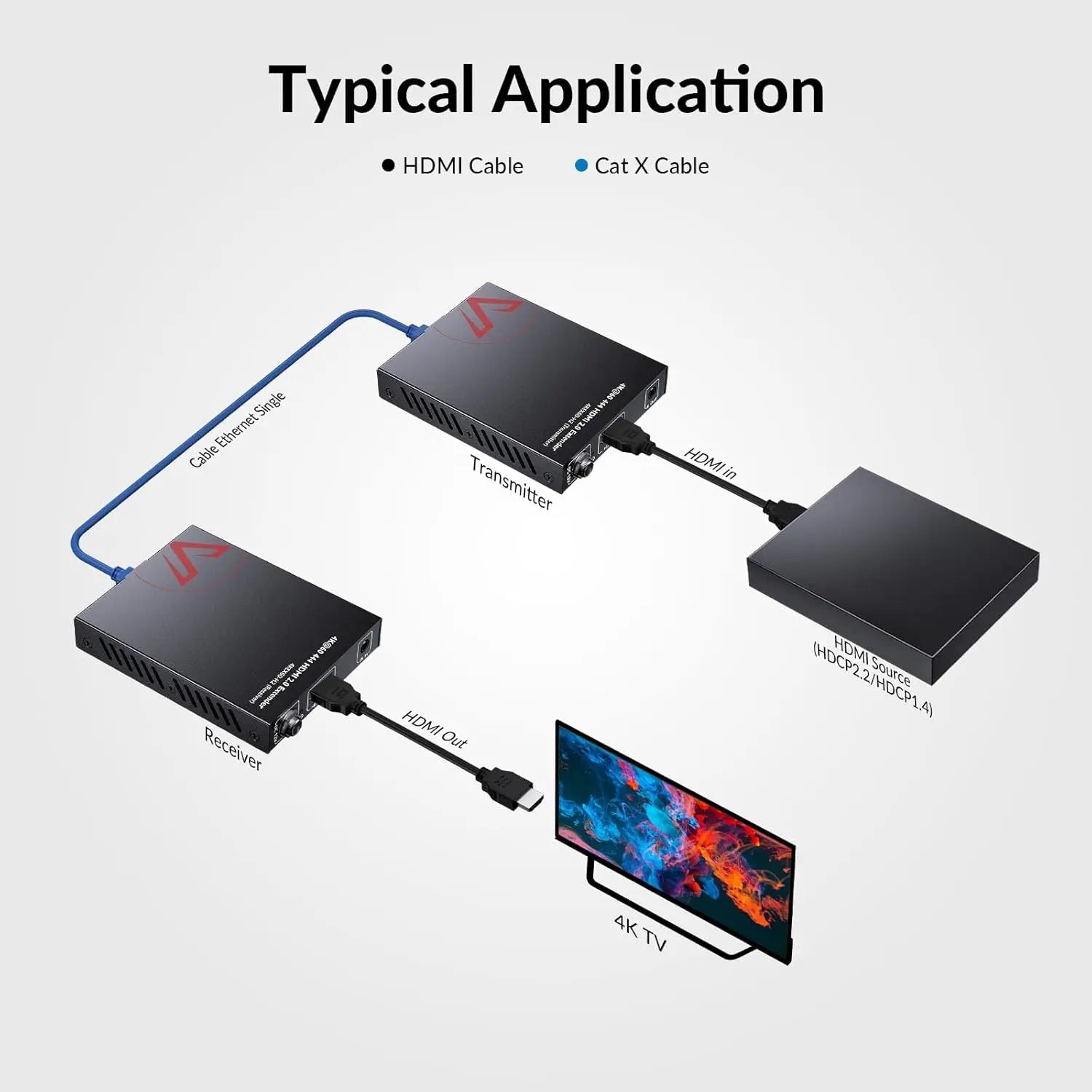

Know what connects where.
Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
Bring the picture to the right place
Use the transmitter beside the source and the receiver beside the remote display. The specified video limit is 4K60, 4:4:4; distance depends on cable type and the selected signal. 4K: 35m · 1080p: 50m is the relevant planning limit for this model.
Keep the remote end useful
The 18Gbps HDMI 2.0 link carries high-detail video and embedded sound, with one-way IR control from the display side. Dolby Vision is specified up to 4K 30Hz.
Plan the cable and power together

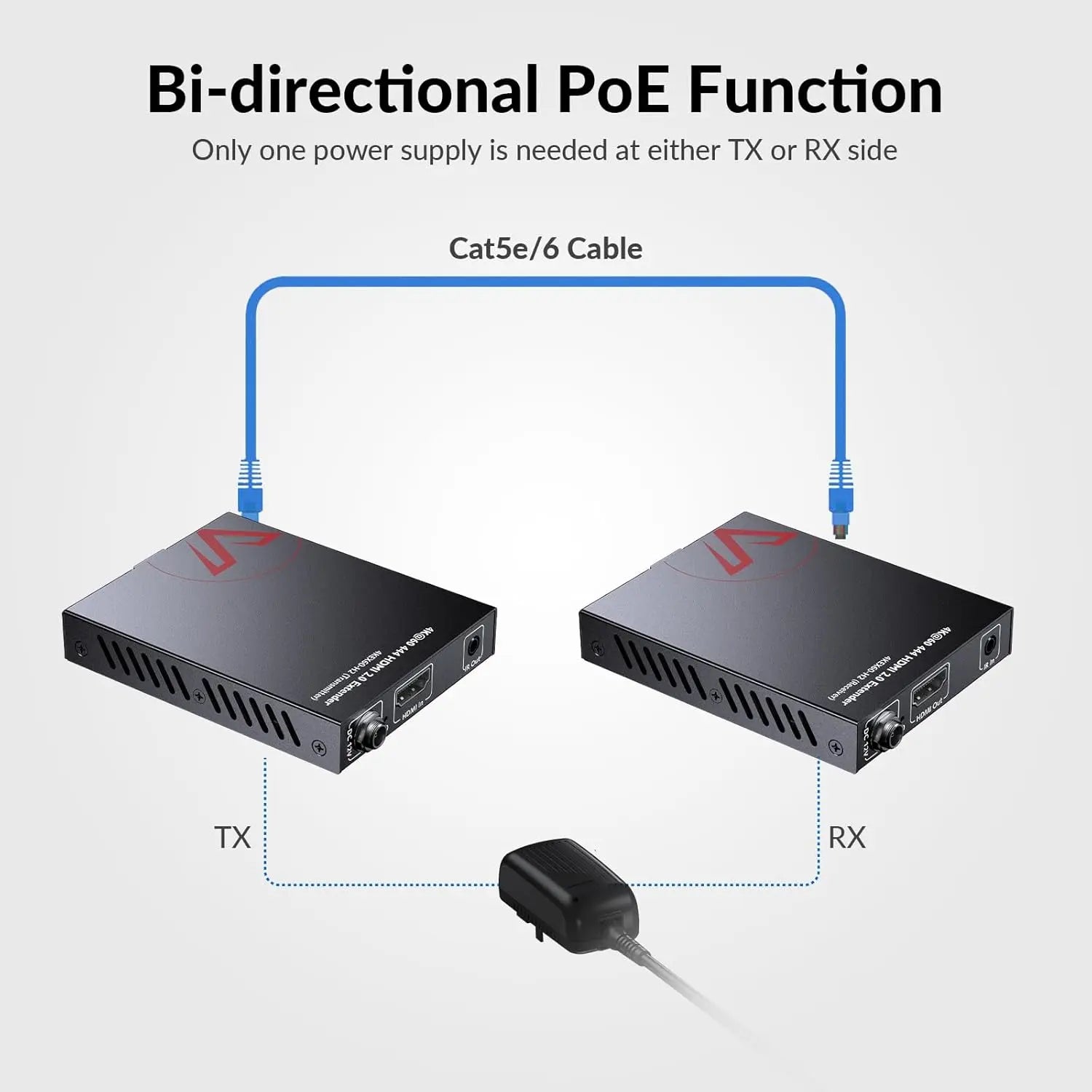

Use Cat6 or better for 4K; Cat5e or better for 1080p. Bidirectional PoC allows one supplied adapter to power both units. Test the complete link, including short video cables at each end, before pulling cable through walls or securing equipment.
Make sure it fits your setup.
The correct cable
Cat6 or better for 4K; Cat5e or better for 1080p. Use a properly terminated, continuous run within the documented distance.
Direct link required
Connect the labelled extender ports directly to one another. An RJ45 connector does not make this link compatible with a normal Ethernet switch.
Power and peripherals
Bidirectional PoC allows one supplied adapter to power both units. This model is for video/audio extension; it is not a general USB extender.
From unboxing to connected.
Plan the link
Match the cable type, total length and required resolution to this model’s limits.
Connect both ends
Put the transmitter at the source and the receiver at the display or USB devices.
Power the kit
Use the power connection specified for this model; then check the link indicators.
Test before installing
Confirm video, sound and any USB/control functions before securing the cable run.
4KEX60-H2 at a glance.
| Model | 4KEX60-H2 |
|---|---|
| Maximum video | 4K60, 4:4:4 |
| Transmission range | 4K: 35m · 1080p: 50m |
| Link medium | Cat6 or better for 4K; Cat5e or better for 1080p |
| Topology | Point-to-point transmitter + receiver |
| Power arrangement | Bidirectional PoC allows one supplied adapter to power both units. |
| Additional functions | The 18Gbps HDMI 2.0 link carries high-detail video and embedded sound, with one-way IR control from the display side. Dolby Vision is specified up to 4K 30Hz. |
| HDMI / HDCP | HDMI 2.0 / HDCP 2.2 |
| Infrared | One-way IR |
| Dolby Vision limit | Up to 4K 30Hz |
A little clarity before you buy.
Can I connect it through a network switch?
No. This model needs the specified direct link between its transmitter and receiver. Choose a documented AV-over-IP model for switched-network distribution.
Is the maximum distance the same at every resolution?
4K: 35m · 1080p: 50m. Follow the model documentation for cable category and signal-specific limits.
What should I check if there is no picture?
Check input/output direction, power indicators and cable termination. Try a lower source resolution and a short known-good link before testing the installed run.
