One HDMI source. The same picture on 4 screens.
Distribute a player, set-top box or computer’s HDMI signal to 4 displays. 4KSP14-S is a straightforward way to repeat one programme across a shop, presentation area or home entertainment setup.

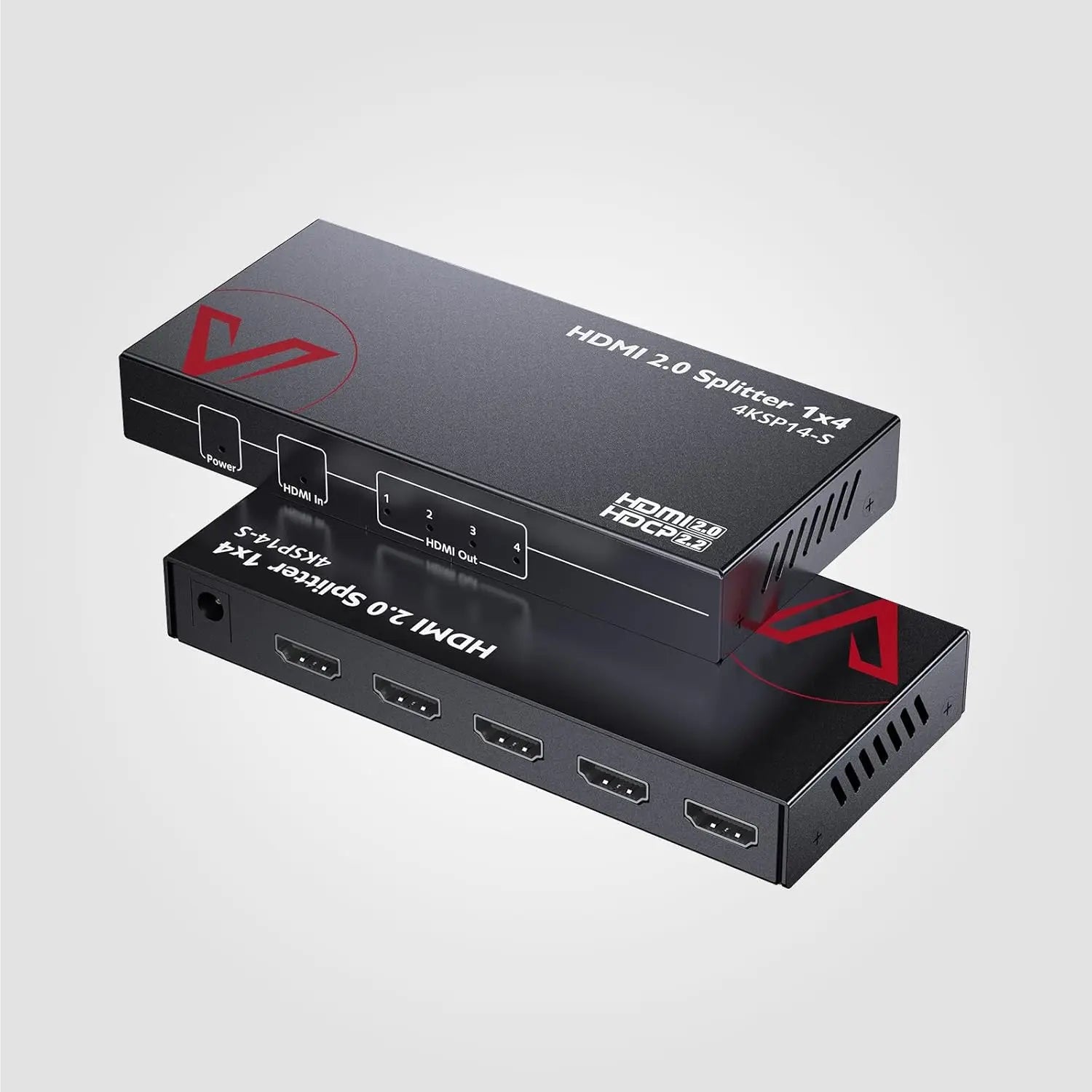

4KSP14-S
Know what connects where.
Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
Share the same moment everywhere
All 4 HDMI outputs carry the selected source’s content. It is useful for screens showing one presentation, promotional loop or live feed; the source remains in control of the picture.
Match the display mix

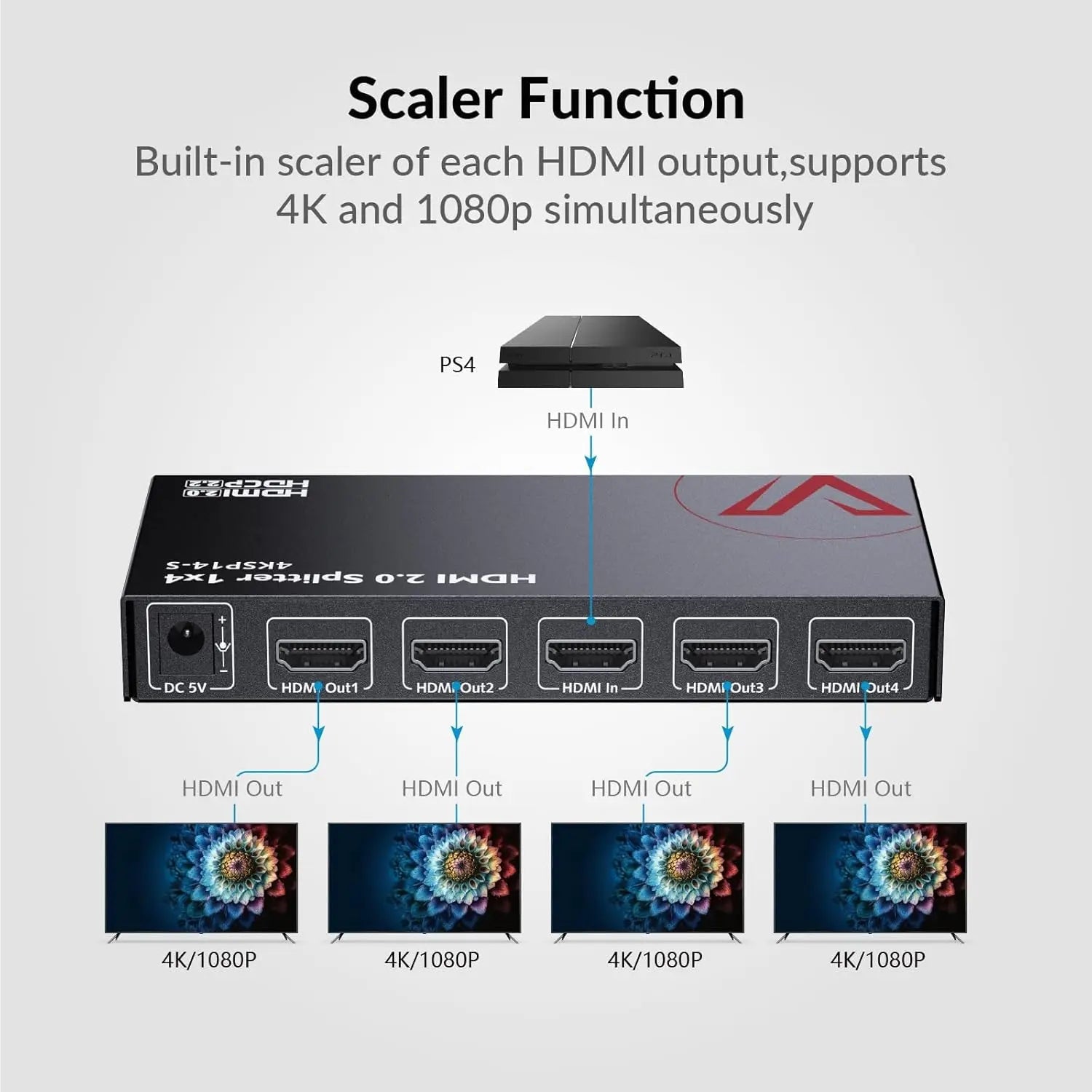

Automatic 4K-to-1080p downscaling helps combine a compatible 4K display with Full HD screens. Resolution scaling does not guarantee HDR-to-SDR conversion or compatibility with every audio format.
Plan each output connection
Connect the source to HDMI IN and run a suitable HDMI cable from each output to a display. EDID negotiation helps establish the source format; long output runs may need a separately matched extender.
Make sure it fits your setup.
Same content
A splitter duplicates one video stream. It cannot create independent extended desktops or choose different programmes for each display.
Format support

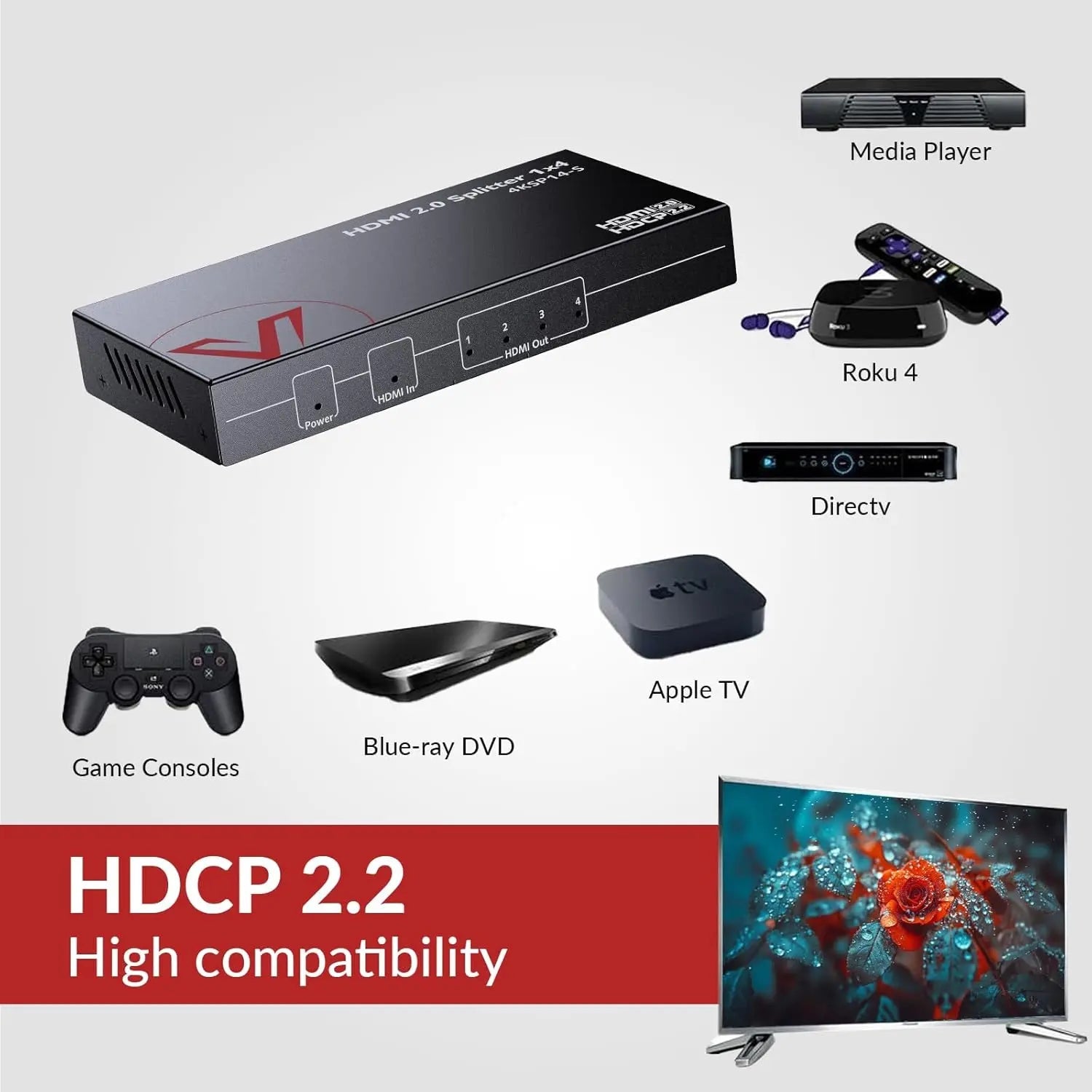

HDMI 2.0, HDCP 2.2 and up to 18Gbps; HDR operation requires compatible equipment.
Audio compatibility
The source audio format must work with the destination devices. A splitter does not convert unsupported surround audio into stereo for every screen.
From unboxing to connected.
Match your devices
Check connector types, signal direction and the required output mode.
Make the connections
Follow the labelled input and output ports for the selected arrangement.
Select your settings
Choose the source, layout or pairing mode supported by this model.
Confirm operation
Check the image, sound and controls with your actual connected equipment.
4KSP14-S at a glance.
| Model | 4KSP14-S |
|---|---|
| Input / outputs | 1 × HDMI in / 4 × HDMI out |
| Maximum video | 4K60, 4:4:4 |
| HDMI / HDCP | 2.0 / 2.2 |
| Bandwidth | 18Gbps |
| 4K to 1080p scaler | Supported |
| Power | 5V/1A |
| Output behaviour | Same input signal on all outputs |
A little clarity before you buy.
Will this create an extended desktop?
No. Each screen receives the same source signal. Use independent graphics outputs or a suitable dock for extended desktops.
Can each display show a different channel?
No. Different programmes require different sources and a matrix or other routing system.
Can I mix a 4K and 1080p screen?
This model provides automatic resolution downscaling, subject to format compatibility.
