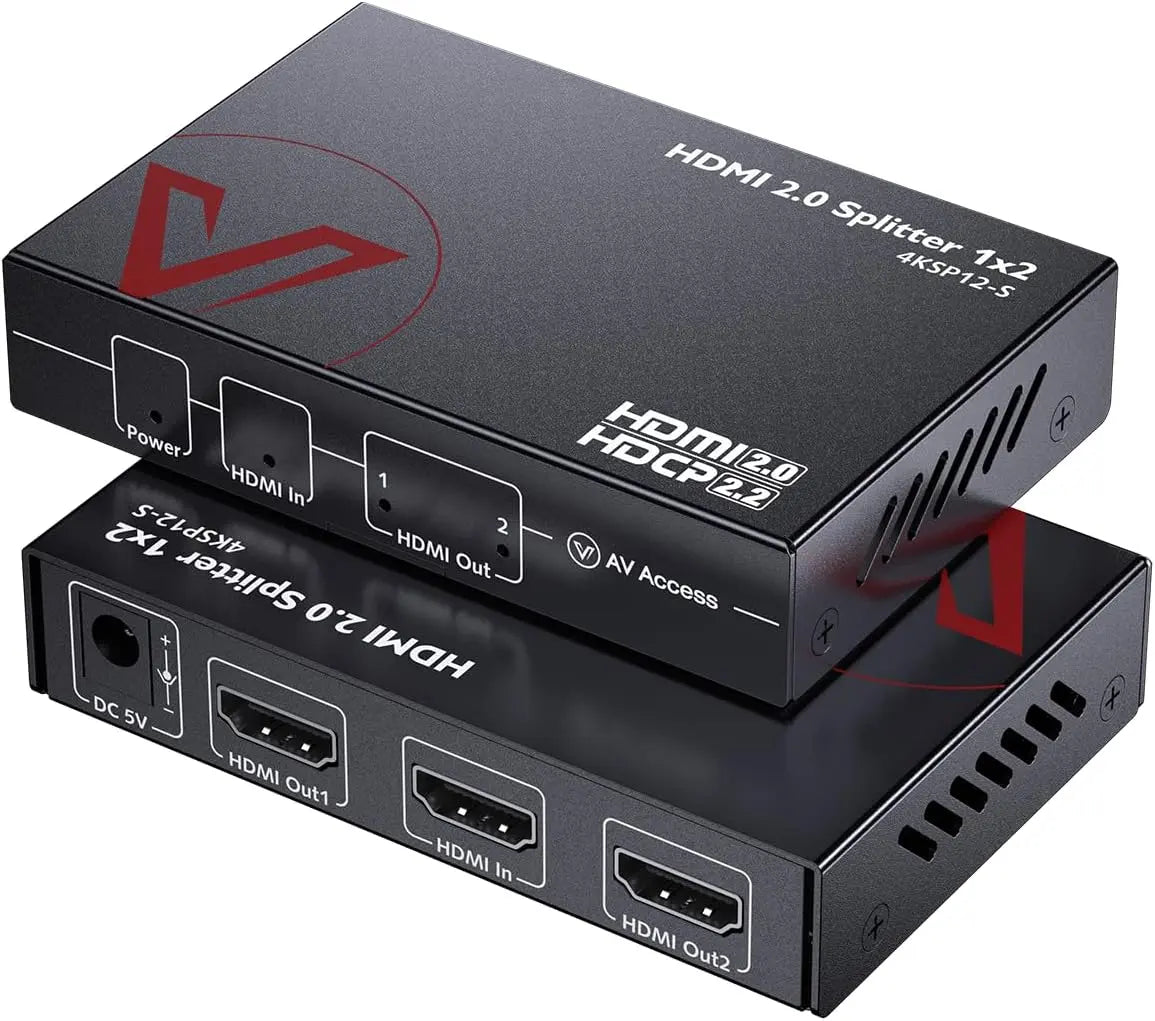

1×2 4K HDMI Splitter with Scaler
The 4KSP12-S is a 1×2 4K HDMI splitter with scaler, reliably distributes one HDMI input signal to two outputs at resolutions up to 4K@60Hz 4:4:4 chroma subsampling. It follows HDCP 2.2 and HDMI 2.0b specifications, including supported data rates up to 18 Gbps, HDR (high dynamic range), 3D and HD lossless audio formats.

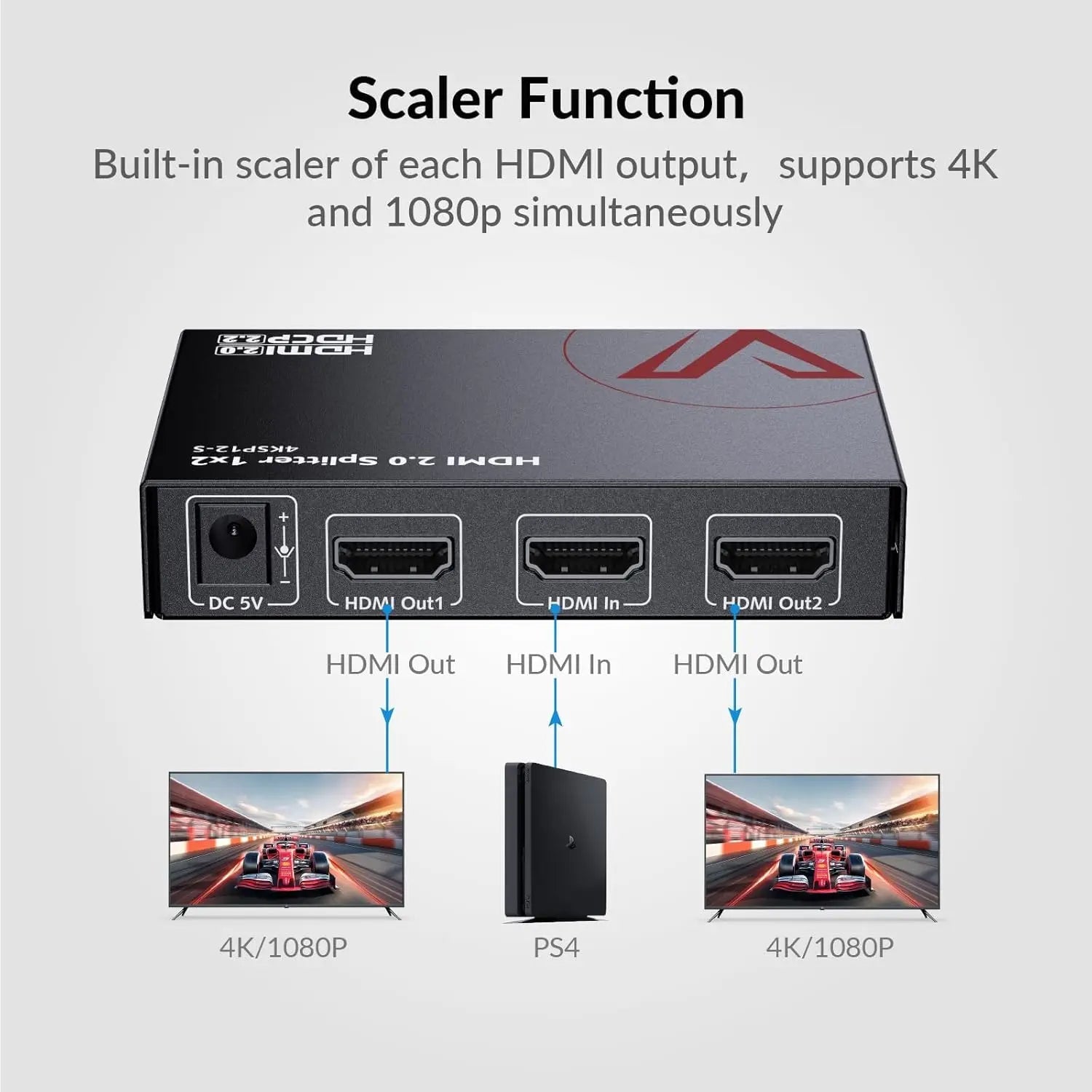

With the built-in scaler, when connected to two different displays, the corresponding HDMI output is capable of scaling down automatically (down to 1080P) to feed an optimal output signal to its attached display.
The splitter provides HDCP management which continuously authenticates HDCP encryption between all devices, ensuring correct source content is output to each display. It also features automatic input cable equalization, actively conditions input HDMI signals to compensate for signal loss when using long cables or cascading multiple units.
Main Features:
- Distributes one HDMI input signal to two HDMI displays
- Supports HDMI 2.0b Specifications, including: Data rates up to 18.0 Gbps ,3D, HDR, HD lossless audio formats
- HDCP 2.2 compliant
- Each HDMI output supports scaling down to 1080P individually (fps will not change during scaling down from 4K to 1080P)
- HDMI Input and output cable length up to 10m/33ft + 15m/50ft for 4Kx2K@30Hz, up to 5m/16ft +5m/16ft for 4Kx2K@60Hz
- Front panel LED indication for I/O and Power connectivity
- Automatic input cable equalization for signal regeneration compensation
