AV Access 4KEX100-KVM-Pro Advanced HDBaseT 3.0 HDMI KVM Extender, Uncompressed 4K@60 up to 100m/330ft, 144/165/240Hz Refresh Rate, Zero Latency

Rs. 50,119.00 INR
Rs. 50,119.00 INR
Rs. 64,879.00 INR
Shipping calculated at checkout.

● Uncompressed 4K60 over HDBaseT 3.0: Extends uncompressed 4K@60Hz (4:4:4) HDMI signal up to 100m/330ft over a single Cat 6a/7 cable, with zero latency. Ideal for both home and business applications.
● Extend 4x USB 2.0 Devices: Connect up to 4 USB 2.0 peripherals such as a keyboard, mouse, speakerphone, webcam, with seamless extension up to 100m/330ft and zero latency.
● High Refresh Rate for Fluid Motion: Supports 4K@120Hz (YCbCr 4:2:0 mode), 5K@30Hz, 5120×1440@60Hz, 1080P@240/165/144Hz, 2560×1440@144/120Hz, etc., ensuring ultra-smooth visuals for your gaming and professional applications.
● Versatile Audio Solutions: Both the transmitter and receiver allow you to extract PCM 2.0 audio from the HDMI source, providing flexible integration with your audio system. The transmitter also supports HDMI Loop Out, allowing for easy connection to additional displays. Also supports audio pass-through from transmitter to receiver for seamless, synchronized audio throughout your setup.
● Plug & Play, Universal Compatibility: Compatible with Windows 10/8/7/XP, Mac OS, and Linux. No drivers required – simply plug and play for hassle-free setup.
● Important Notes: For 4K@60Hz transmission up to 100m, a Cat 6a/7 U/FTP or F/FTP cable is required to ensure optimal performance. When using a 4K@120Hz high refresh rate, ensure that your computer is set to YCbCr mode for optimal display quality.

High-End 4K HDBaseT 3.0 KVM Extender

Enjoy Uncompressed 4K with Zero Latency


20241021 4KEX100 KVM Pro banner
01 02 03 04 05  06  07  08

Typical Applications

This high-performance HDBaseT 3.0 KVM extender is built to deliver seamless 4K transmission across various professional and gaming environments. Here’s how it can optimize your setup:

600 500 04

Gaming

Enjoy smooth, zero-latency gameplay with support for high refresh rates up to 240Hz, 165Hz, and 144Hz. This extender delivers exceptional performance across resolutions like 1920×1080@240Hz and 2560×1440@144Hz, ensuring a seamless gaming experience for competitive players.

600 500 01

Enterprise Server Room

Streamline your server management with uncompressed 4K video and fast USB 2.0 peripheral support, allowing remote control of server operations with zero delay. Ideal for maintaining efficiency and control in critical enterprise environments.

Data Control Center

Monitor data systems in real-time with long-distance 4K transmission and zero latency. This extender provides reliable, high-resolution video for precise data visualization, essential for military, traffic, and industrial control rooms.600 500 03

Video Surveillance Center

Enhance surveillance monitoring with uncompressed 4K video across multiple displays, ensuring no detail is missed. The long-distance transmission and zero-latency response make it perfect for large surveillance network.

HDBaseT 3.0 Uncompressed Transmission

Experience seamless, uncompressed 4K@60Hz transmission with the latest HDBaseT 3.0 technology. By delivering zero latency, this extender ensures that even the most demanding video and audio signals are transmitted in their purest form. Perfect for professional environments where video quality and real-time performance are critical.

1460 600 03

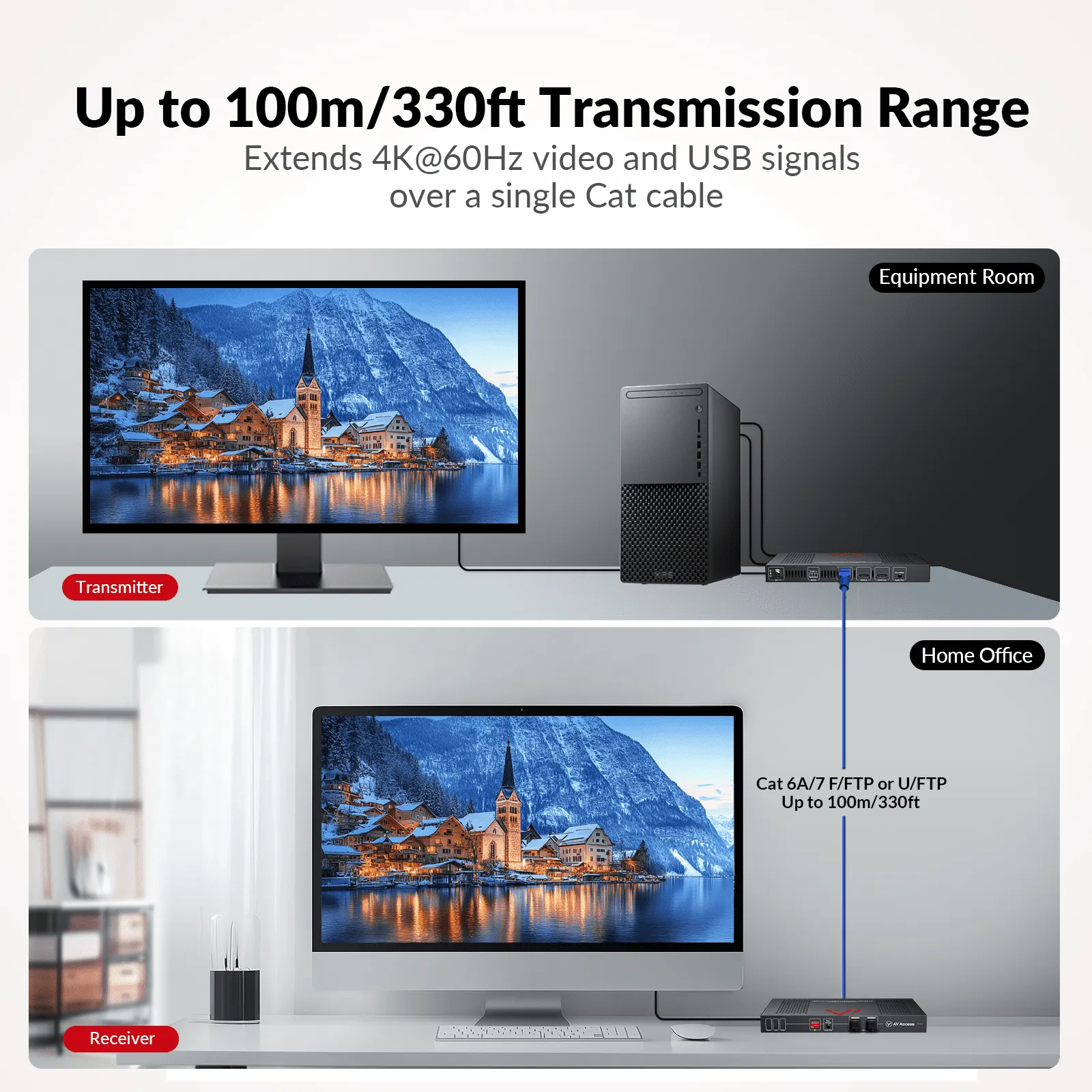

100m/330ft Long-Distance Transmission

Transmit high-quality 4K HDMI signals over 100m/330ft via a single Cat 6A/7 F/FTP or U/FTP cable. This extended range provides the flexibility to cover large spaces like data control centers and video surveillance center without sacrificing signal integrity.

1460 600 01

High Refresh Rate for Fluid Gameplay

Supporting refresh rates like 4K@120Hz (YCbCr 4:2:0), 5K@30Hz, 5120×1440@60Hz, 1080P@240Hz, and 2560×1440@144Hz, this KVM extender ensures smooth, stutter-free visuals. Its high refresh rate enhances user experience across various applications, including gaming, live broadcasting, and multitasking-intensive workflows, delivering fluid motion and reducing visual lag.

Compatibility with Multiple USB Devices

With support for up to 4 USB 2.0 peripherals, this extender allows easy control of keyboards, mice, webcams, and more. It is ideal for scenarios where multiple device control is needed, such as in server rooms or data control centers.

1200x630 02

One-Way Power over HDBaseT (PoH)

With 12V PoH integrated inside, this HDMI KVM extender only requires one power supply connected to the receiver to power both units.

1200x630 1

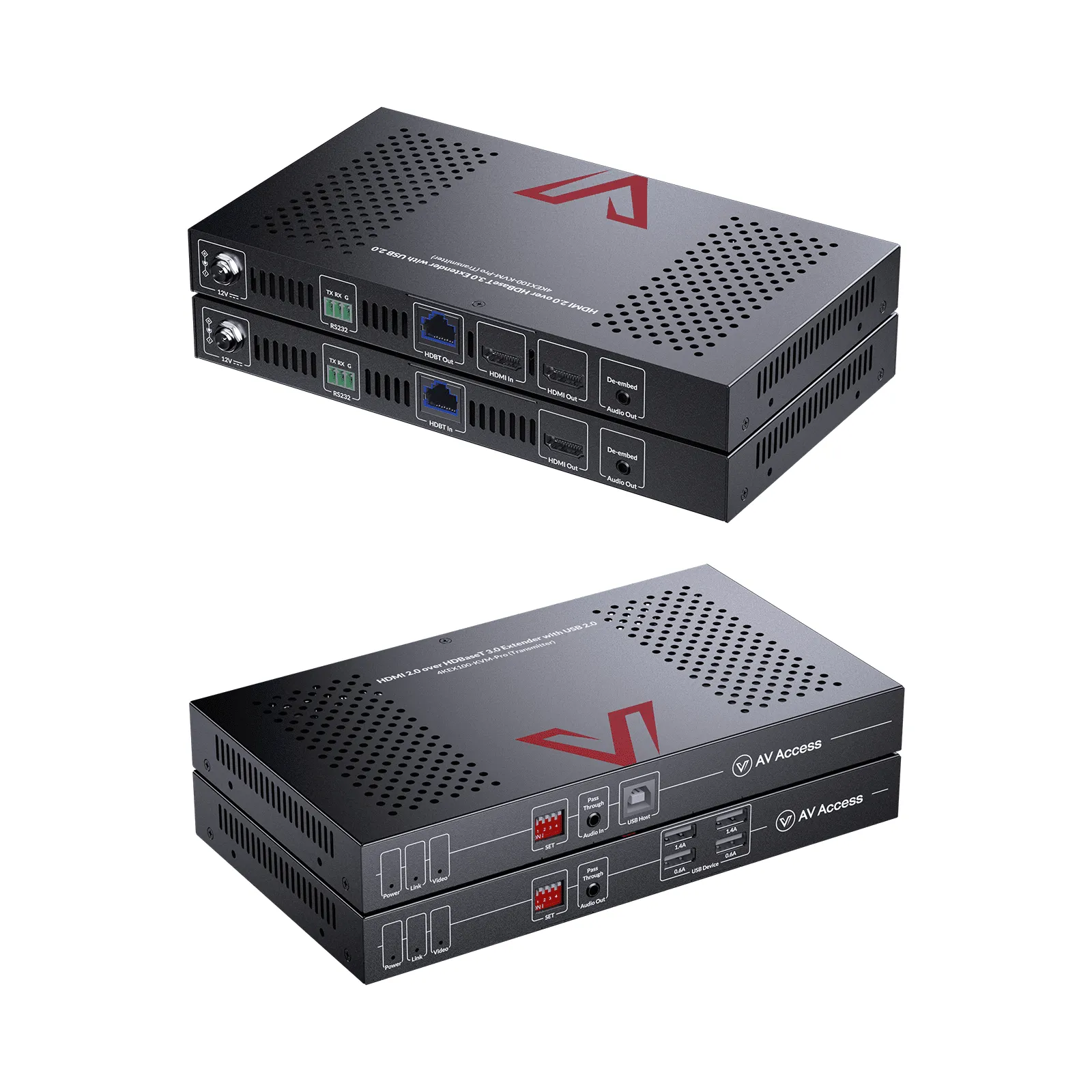

Compact Design with Efficient Heat Dissipation

Its sleek, compact design with built-in ventilation holes ensures reliable performance and easy integration, even in tight spaces.

Technical
Input/Output Video Signal HDMI with 4K@60 YUV 4:4:4, HDCP 2.2
Input/Output Resolutions SMPTE:

4096×21601,2,3,4,5, 3840×21601,2,3,4,5, 3840×21606,7(YUV 420), 2560×10804,5, 1920x1080P1,2,3,4,5,6,7,8,9,10, 1920x1080i4,5,7, 1280×7201,2,3,4,5,6,7

VESA:

3840×14404,5,6, 3840×10804,5,6,7, 3440×14404,5,6, 2560×16004,5,6,7, 2560×14404,5,6,7,8, 2560×10804,5,6,7,8,9, 1920×14404,5,6,7,8, 1920×12004,5,6,7,8,9, 1680×10504,5, 1600×12004,5, 1600×9004,5, 1440×9004,5, 1366×7684,5, 1360×7684,5, 1280×10244,5, 1280×9604,5, 1280×8004,5, 1280×7684,5, 1280×7204,5, 1024×7684,5, 800×6004,5

1=24Hz, 2=25Hz, 3=30Hz, 4=50Hz, 5=60Hz, 6=100Hz, 7=120Hz, 8=144Hz, 9=165Hz, 10=240Hz
Audio Format Audio In/Out (pass-through): Stereo

HDMI In/Out: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X

Audio De-embedding: Stereo
Maximum Pixel Clock 600MHz
Maximum Data Rate HDMI: 18Gbps

USB: 350Mbps
USB Specification USB 2.0 and backward compatible with USB 1.1/1.0
General
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 20% to 90%, non-condensing
ESD Protection Human-body Model:

±8kV (Air-gap discharge)/

±4kV (Contact discharge)
Power Supply DC 12V 3A
Power Consumption (Max) 18.96W
Device Dimensions

(W x H x D)

 Transmitter/Receiver: 215 mm × 25 mm × 120 mm/ 8.46” x 0.98” x 4.72”
Product Weight Transmitter: 0.56kg/1.23lbs

Receiver: 0.57kg/1.26lbs
