See several network sources on one screen.
Bring up to four compatible network video streams into a single viewing layout. 4KIP200M is a display-side multiview processor for an AV Access IP system, useful for comparing sources or watching several feeds without installing a monitor for each one.
4KIP200M
Know what connects where.

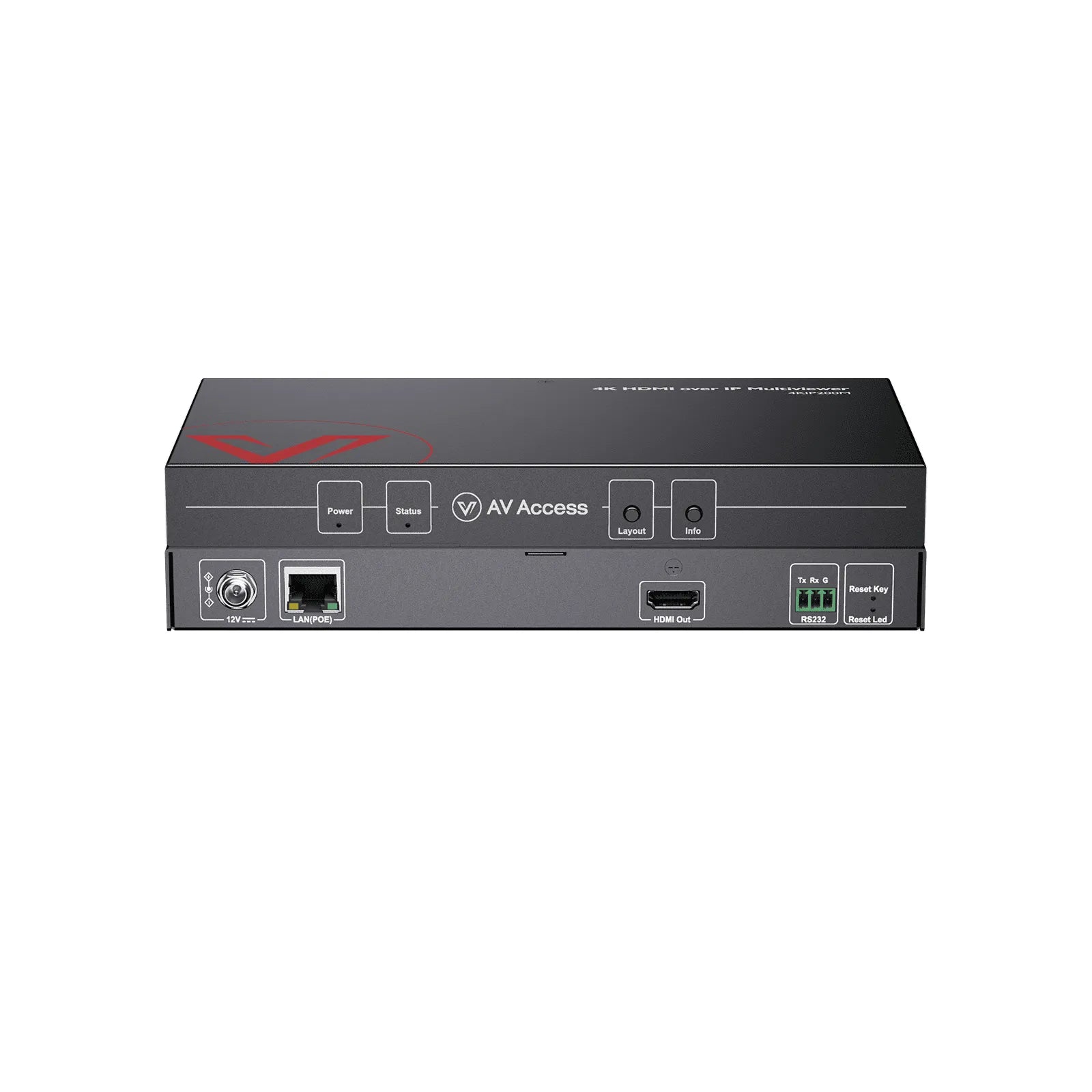

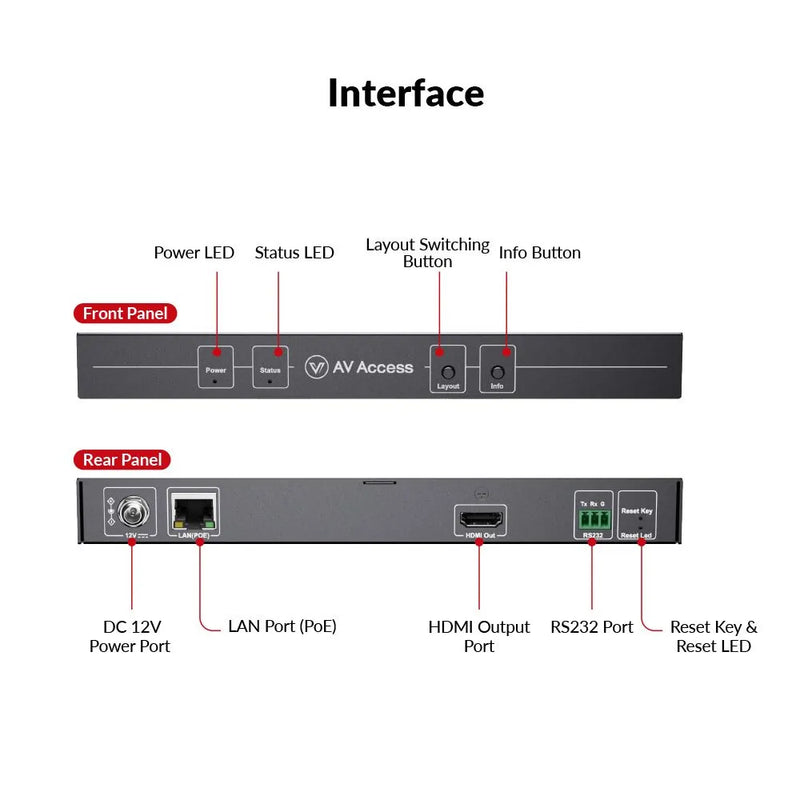

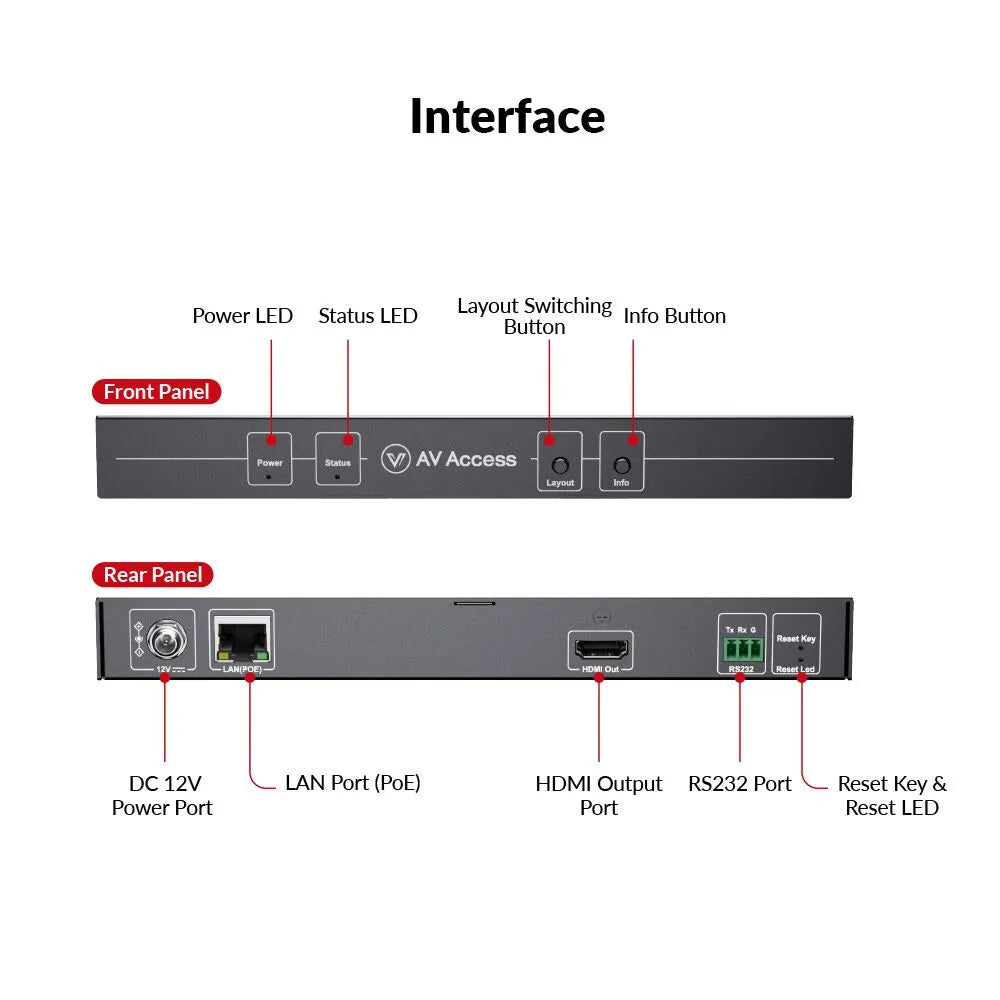

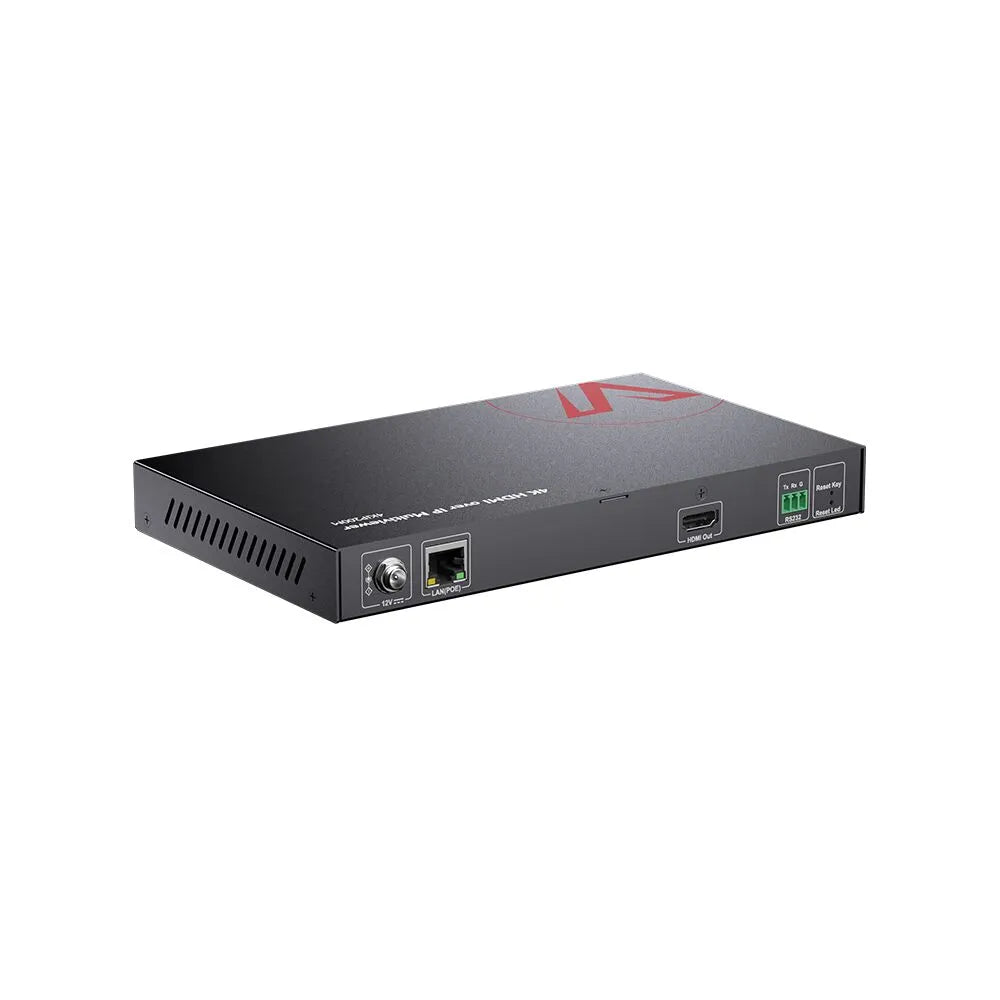

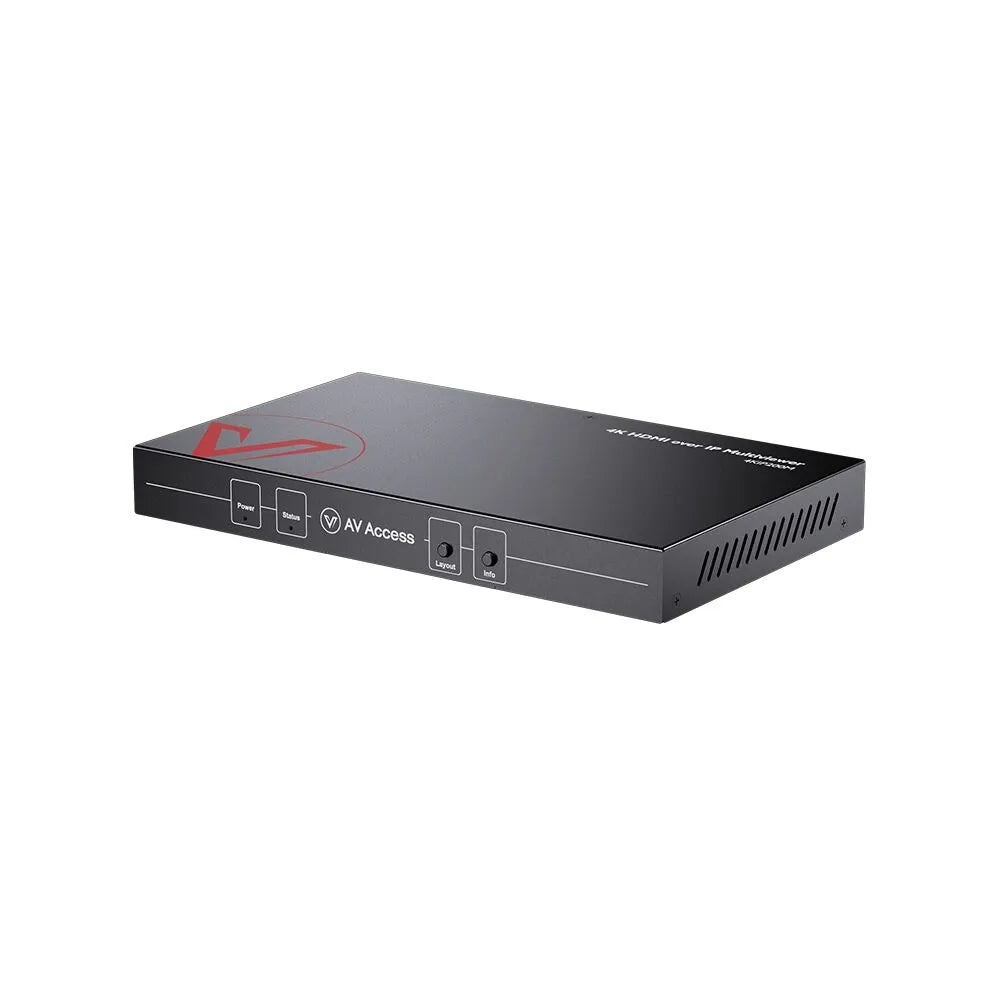

Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
Choose how the feeds share the screen
Select a single source, picture-in-picture or supported multi-source layout. The processor combines compatible streams into one HDMI output rather than providing four separate physical video inputs.
Use the right encoders upstream
Feed the system with 4KIP200E single-input encoders or the 4KIP204E four-input encoder. Source and output resolution depend on the selected layout and system settings; a 4K output does not mean four independent full-resolution 4K pictures on one 4K screen.
Keep audio and control understandable
Select the required audio source for the output and use the documented system controls for layout and routing. PoE or the specified 12V/1A supply provides installation flexibility.
Make sure it fits your setup.
Network sources only
This is a receiver/processor with one HDMI output. Source devices first connect to compatible encoders.

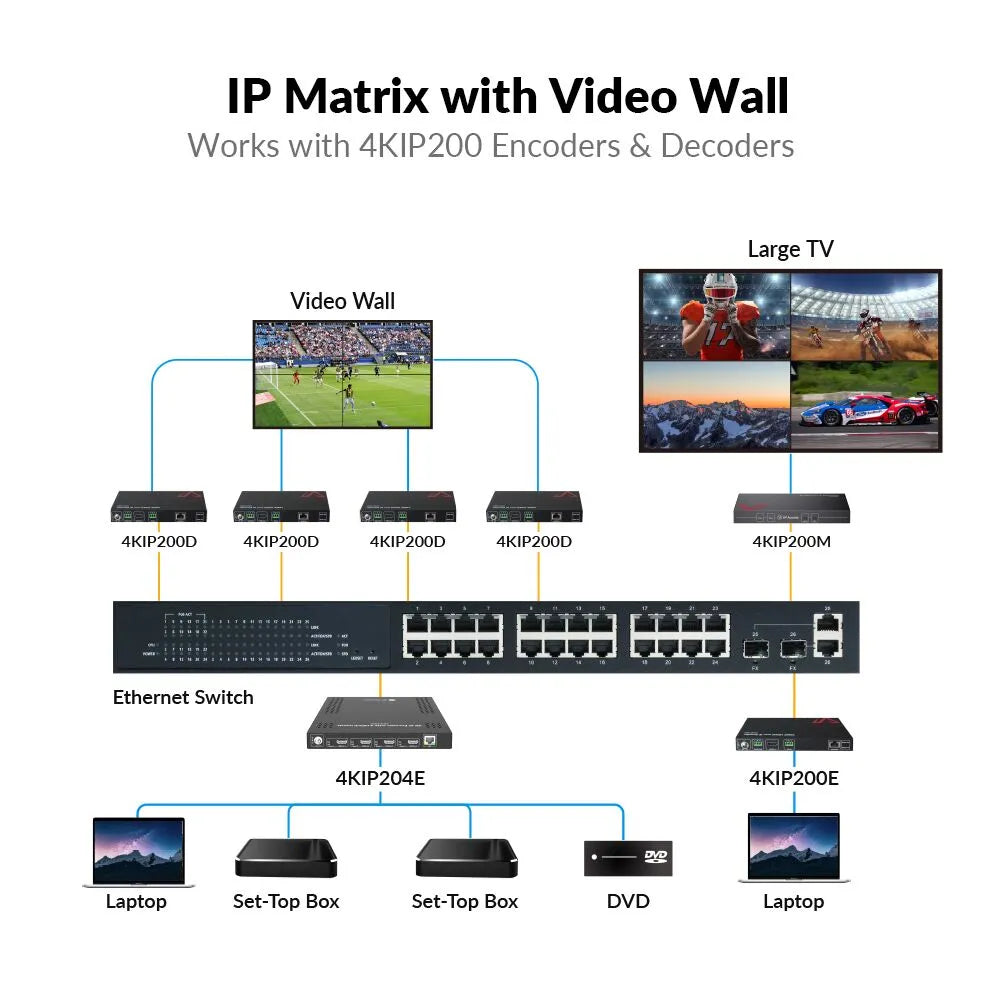

Multiview versus video wall
Multiview puts several sources on one screen. For a wall spread across several screens, plan the supported 4KIP200D decoder system.
Mode-dependent output
Confirm the required layout, input format and output timing in the model manual before designing a control-room display.
From unboxing to connected.
Match the system
Choose compatible encoders and decoders from the documented product family.
Wire the network
Use Ethernet links and switching capacity appropriate to the number of sources.
Connect source and display
Place encoders at HDMI sources and decoders at their intended screens.
Route and test
Use the supported controls to select streams; check audio and any wall layout.
4KIP200M at a glance.
| Model | 4KIP200M |
|---|---|
| Role | Network multiview receiver / processor |
| Compatible encoders | 4KIP200E / 4KIP204E |
| Concurrent sources | Up to 4 |
| Display output | 1 × HDMI |
| Layouts | Single view, PIP and supported multi-source layouts |
| Video | Up to 4K output; timing depends on operating mode |
| Power | PoE or DC 12V/1A |
| Audio | Select one source audio stream for output |
A little clarity before you buy.
Can I plug four HDMI sources straight into it?
No. The sources need compatible network encoders. This unit receives the encoded streams.
Is a quad view the same as a four-screen wall?
No. Quad view places four feeds on one screen. A video wall uses multiple displays and an appropriate decoder arrangement.
Can all four audio streams play together?
Select the required source audio; do not plan on four independently mixed soundtracks from this output.
