AV Access 4KSW41-H2 4K HDMI 2.0 Switch 4 In 1 Out, IR Remote, HDR, Dolby Vision, HDCP2.2

Rs. 7,042.00 INR
Rs. 7,042.00 INR
Rs. 9,507.00 INR
Tax included. Shipping calculated at checkout.

AV ACCESS • 4KSW41-H2

AV Access 4KSW41-H2 4K HDMI 2.0 Switch 4 In 1 Out, IR Remote, HDR, Dolby Vision, HDCP2.2

4KSW41-H2 is a purpose-built AV Access solution for dependable professional connectivity. Review the supported formats, interfaces and deployment requirements below to confirm compatibility.

4KDolby Vision
AV Access 4KSW41-H2 4K HDMI 2.0 Switch 4 In 1 Out, IR Remote, HDR, Dolby Vision, HDCP2.2

PURPOSE-BUILT

AV Switching Solution

Designed around the interfaces and performance capabilities stated for 4KSW41-H2.

PLAN WITH CONFIDENCE

Compatibility first

Match the source, display, host ports, cables and accessories to the requirements below.

INDIA SUPPORT

Official AV Access India

India-focused ordering support with GST invoicing and applicable website policies.

PRODUCT DETAILS

Features, applications and specifications

Economical 4×1 4K HDMI Switch

4KSW41-H2 4K HDMI switch features HDMI 2.0 and HDCP 2.2 compatibility and supports resolutions up to 4K@60Hz 4:4:4 8bit, enabling four Ultra HD sources to be switched to one Ultra HD display. It also allows control through top panel button, IR remote and automatic switch.

Designed for simple installation and compact size, 4KSW41-H2 offers the convenience of future-ready Ultra HD AV switching, and the reliability of cutting-edge HDMI 2.0 and HDCP 2.2 compatibility.

Economical 4×1 4K HDMI Switch

4KSW41-H2 4K HDMI switch features HDMI 2.0 and HDCP 2.2 compatibility and supports resolutions up to 4K@60Hz 4:4:4 8bit, enabling four Ultra HD sources to be switched to one Ultra HD display. It also allows control through top panel button, IR remote and automatic switch.

Designed for simple installation and compact size, 4KSW41-H2 offers the convenience of future-ready Ultra HD AV switching, and the reliability of cutting-edge HDMI 2.0 and HDCP 2.2 compatibility.


Main Features:

  • Cost effective 4 to 1 HDMI switcher
  • Fully compliant with HDMI 2.0 and HDCP 2.2
  • HDMI inputs and output support up to 4K@60Hz 4:4:4 8bit
  •  HDMI input and output cable length up to 49ft/15m + 49ft/15m for 1080P, and up to 10ft/3m + 16ft/5m for 4K@60Hz 4:4:4
  • Compact size and easy-to-install

AV Access_4KSW41-H2 4x1 4K HDMI Switch_4K Ultra-HD Image

4K Ultra-HD Image

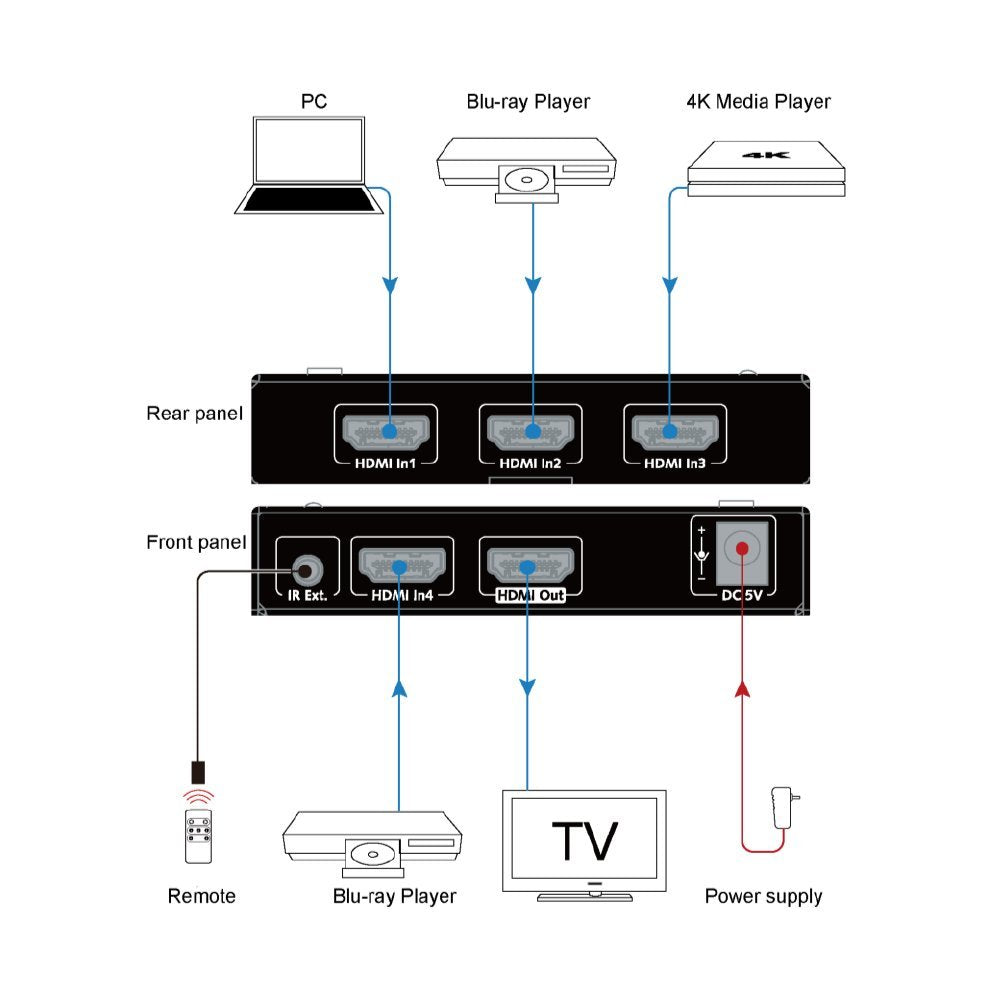

With four input ports and one output port, the compact HDMI switcher allows four Ultra HD sources to be switched to one Ultra HD display at resolutions up to 4K@60Hz 4:4:4 8bit, delivering ultra-HD visual feast.


High Compatibility

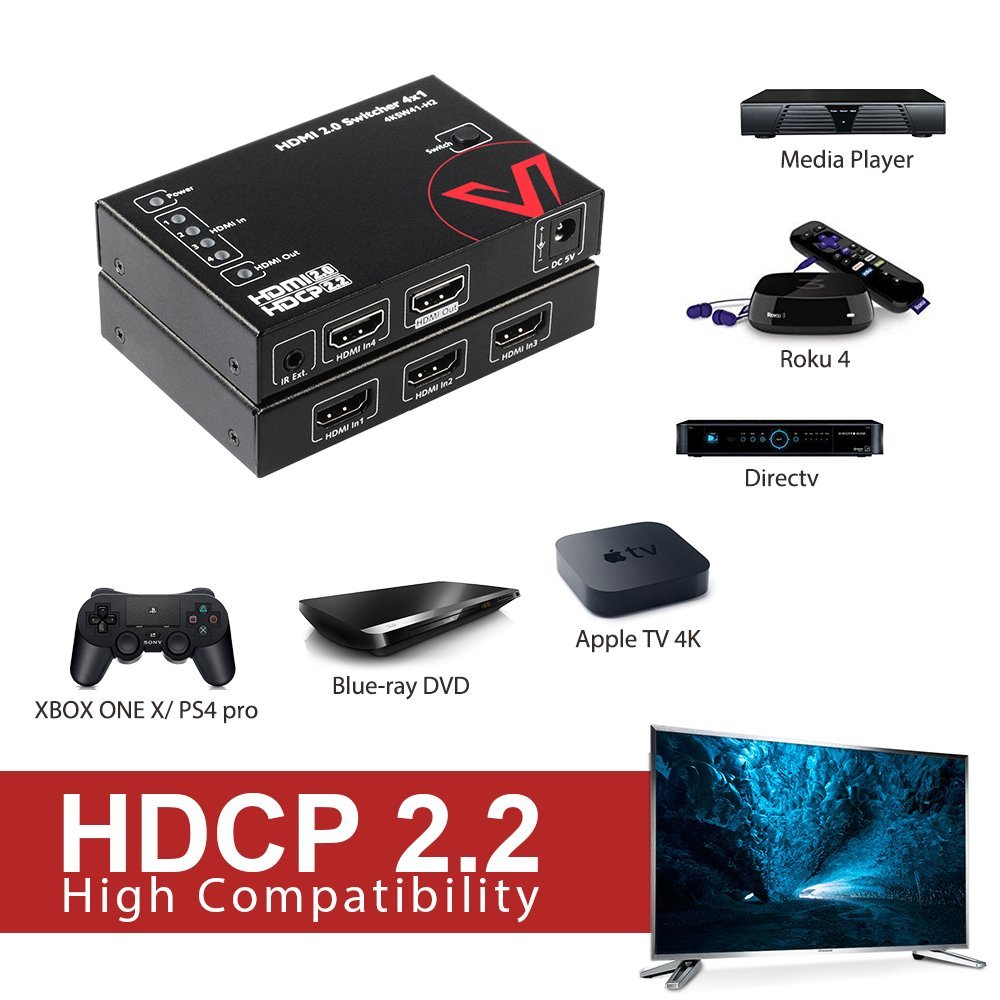

The HDMI switcher is compatible with the latest HDMI source and display devices, such as Apple TV 4K, Roku 4, Amazon Fire TV 4K, Cisco cable box, Comcast, Xbox One X, PS4 Pro, Vizio TV, Sky Q. No more hesitation on choosing HDR or 4K@60hz for you could have both.

AV Access 4KSW41-H2 4x1 4K HDMI Switch _ High Compability

AV Access 4KSW41-H2 4x1 4K HDMI Switch _ Compact Size

Slim Size & Wide Applications

With its compact and exquisite design, the HDMI switcher can be used in any A/V applications, such as homes, offices, control centers, conference rooms and other locations which need A/V switching.


Excellent Audio Enjoyment

The HDMI switcher supports audio formats such as PCM 2.0/5.1/7.1, Dolby True HD and DTS HD Master Audio, so you can get fantastic audio experience.

AV Access 4KSW41-H2 4x1 4K HDMI Switch _ Excellent Audio Enjoyment



Specifications

Technical
Video Signal Type HDMI 2.0, HDCP 2.2
Input/Output Resolution Supported VESA:

640×4808, 800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008

SMPTE:

720x480P8, 720x576P8, 1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8, 3840×21602,3,5,6,8, 4096×21602,3,5,6,8

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz
Audio Format Supported PCM 2.0/5.1/7.1, Dolby True HD and DTS HD Master Audio
Maximum Data Rate 18Gbps
Control Method IR control; Switch button control
General
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 10% to 90%, non-condensing

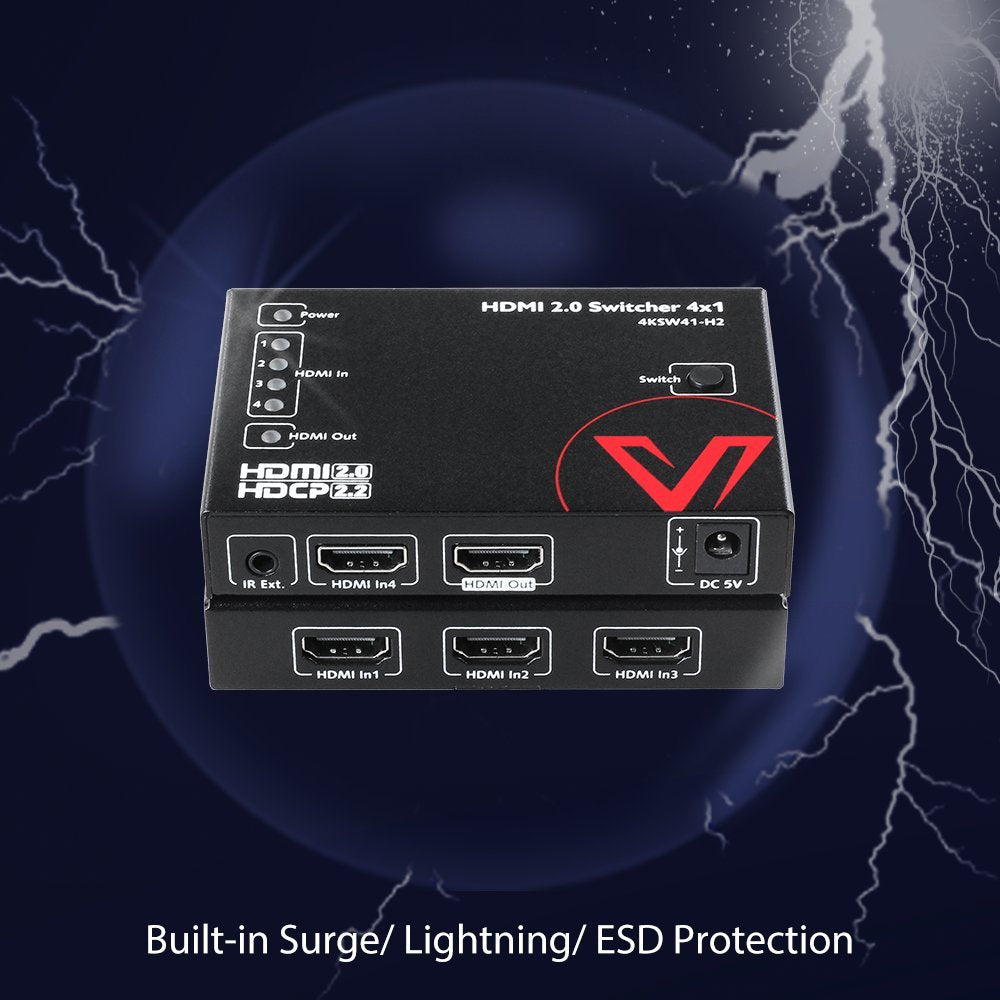

ESD Protection ±8kV(Air-gap discharge)/

±4kV(Contact discharge)
Surge Protection Voltage: ±1 kV
Power Consumption

(Maximum)

 1.735W
Device Dimension

(W x H x D)

 3.93” x 0.77’’ x 2.61”/

100mm x 19.5mm x 66.2mm
Product Weight 0.49lb/0.22kg

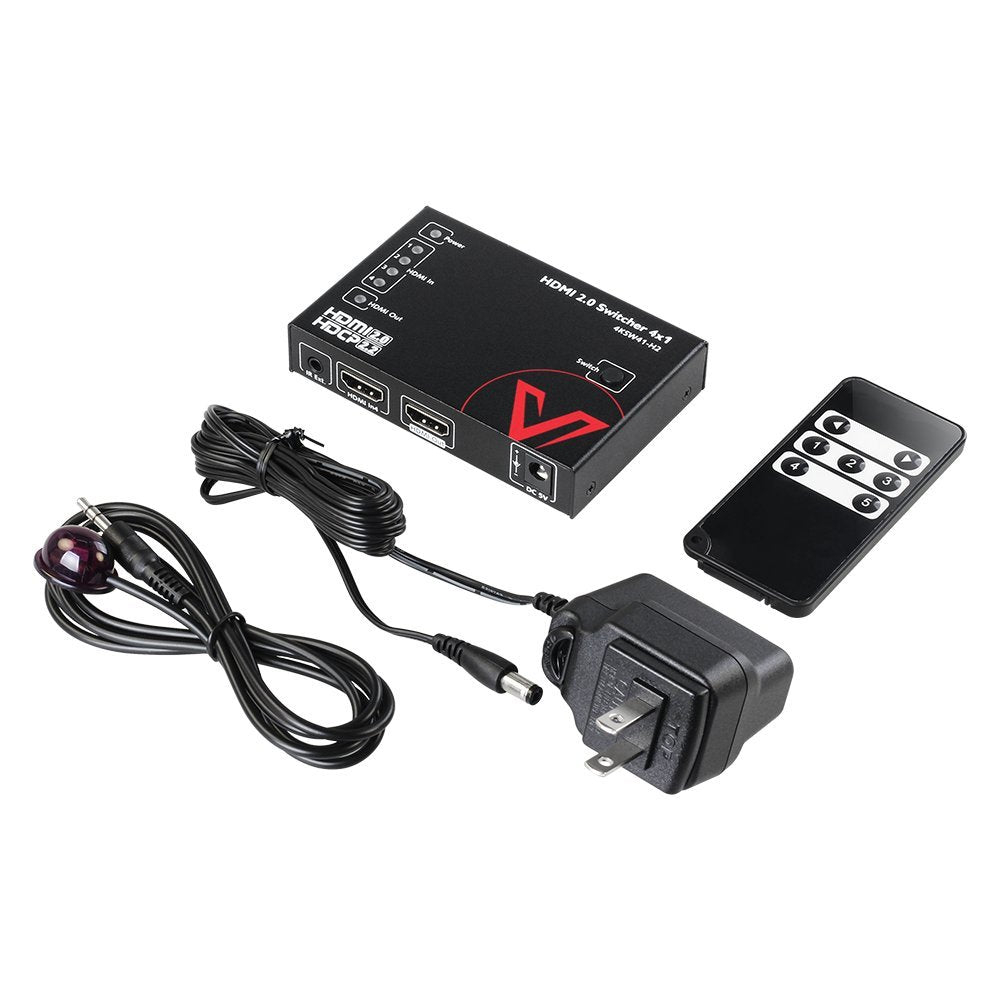

In the Box

  • 1x 4KSW41-H2 Switcher
  • 1x DC 5V Power Supply
  • 1x IR Remote
  • 1x IR Extension Cable (38KHz)
  • 1x User Manual

Quick product snapshot

Model / SKU 4KSW41-H2
Product category AV Switching Solution
Key capabilities 4K • Dolby Vision

Frequently asked questions

How do I confirm compatibility before ordering?

Compare the required source and display interfaces, supported resolution or data rate, host capabilities, cable type and installation distance with the specifications on this page.

Are all cables and accessories included?

Only the items expressly listed in the package contents are included. Displays, computers, network infrastructure and interconnect cables may need to be purchased separately.

Can real-world performance vary?

Yes. Performance can depend on the source, display, operating system, host port, cable quality, network design and selected resolution or refresh rate.

AV ACCESS INDIA ASSURANCE

Professional AV hardware with India-focused order support

Purchase through AV Access India for India-focused order support. Invoicing, warranty, returns and replacement eligibility follow the current policies shown on this website.

Specifications, compatibility, package contents and appearance may change by production batch. Confirm critical deployment requirements before ordering.
