Plug in. Press. Put your presentation on the room screen.
eShare D10 is the presenter-side accessory for a compatible eShare W50 base station. Connect it to a supported video-capable USB-C device, then use the casting button to share the screen through the paired room system.

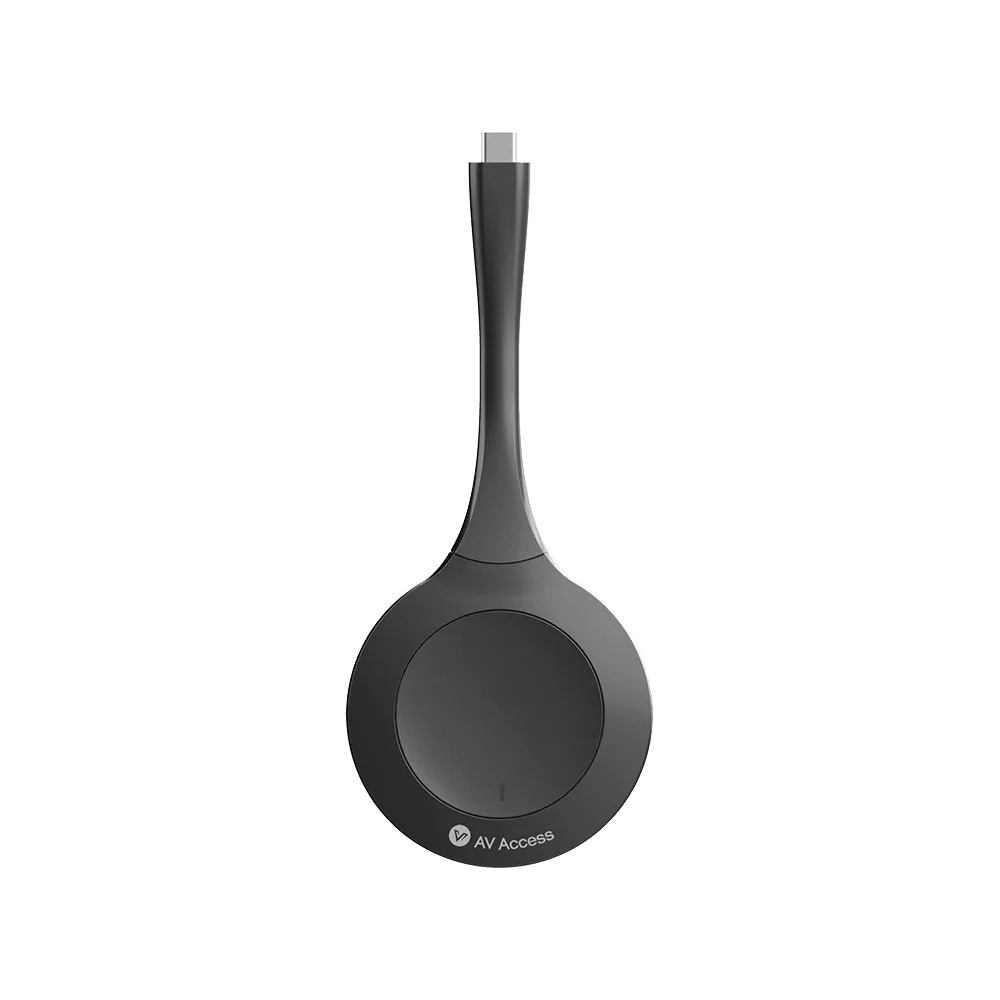

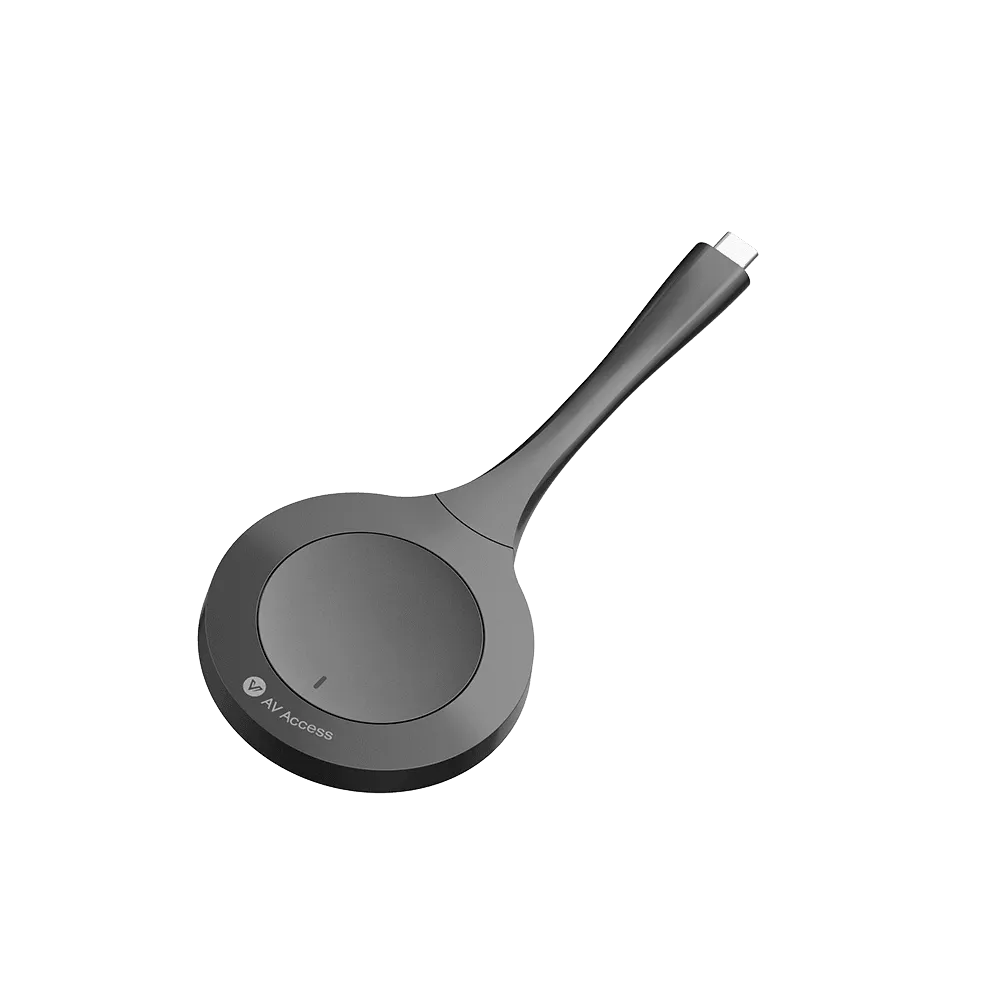

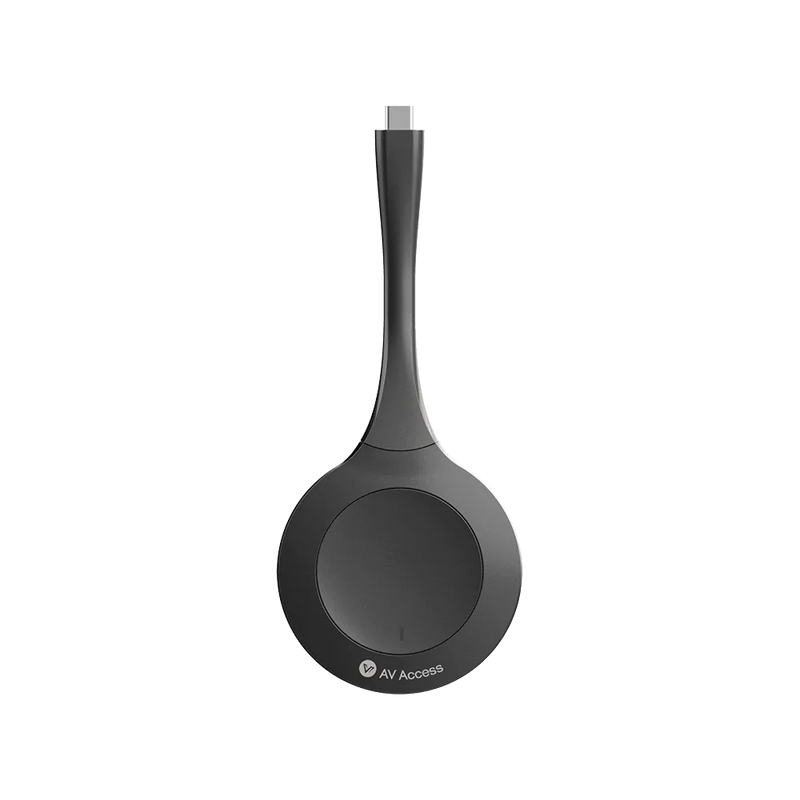

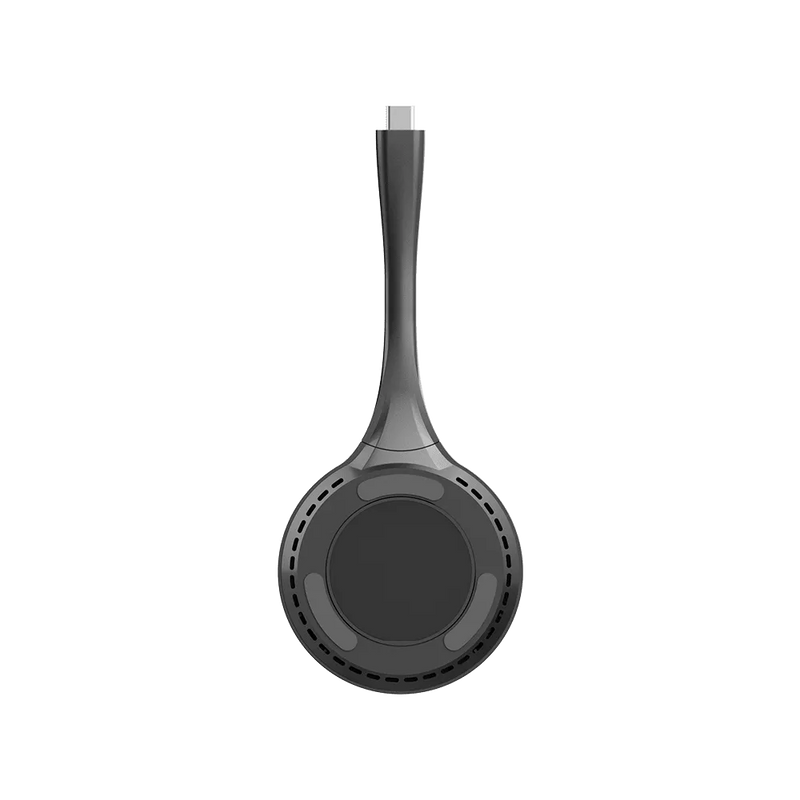

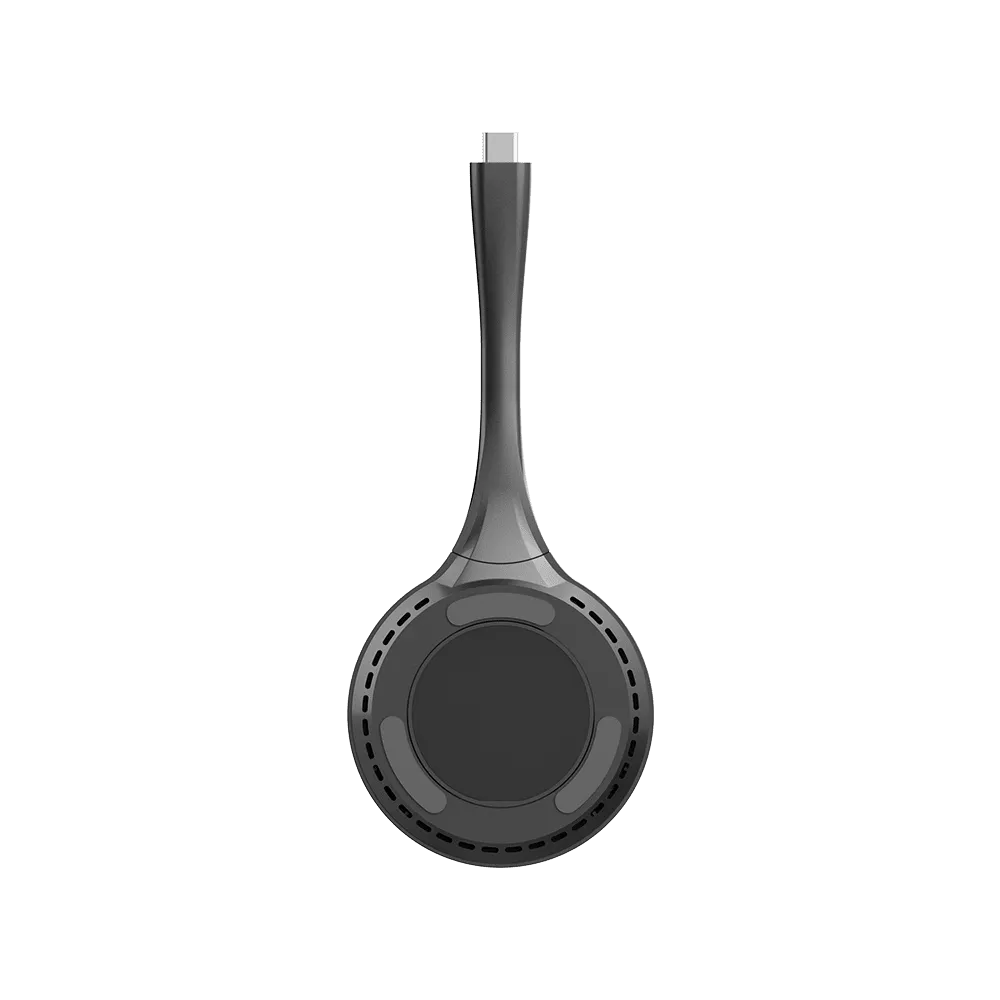

eShare D10
Know what connects where.
Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
Pair it with the room first
Connect the dongle to the compatible base station’s designated pairing USB-C port and follow the indicator sequence in the manual. Pairing tells the accessory which room system should receive the presentation.
Make sharing a physical action
After pairing, move the dongle to the presenter’s compatible USB-C device and press the casting button. The simple casting control suits guests who want a direct way to begin sharing.
Know what the connection includes
D10 sends the supported display stream to W50. It does not provide wireless access to the room’s USB camera or microphone; W50’s wired USB host connection is used for those devices.
Make sure it fits your setup.
Compatible base required
eShare W50. This dongle cannot send a picture directly to an ordinary HDMI TV without its matching base station.
USB-C video support
The presenter’s USB-C port must provide compatible display output. Charging-only and data-only ports do not supply the required video signal.
Wireless conditions
Casting quality and latency depend on the room’s radio environment, device support and selected format. Use the wired alternative where the system requires it.
From unboxing to connected.
Prepare the room
Connect the compatible base station to the display and room peripherals.
Choose a connection
Use the supported wired input or pair the matching wireless dongle.
Share your content
Connect the presenter’s device and select the required sharing mode.
Check meeting devices
In your meeting app, select the intended camera, speaker and microphone.
eShare D10 at a glance.
| Model | eShare D10 |
|---|---|
| Role | Presenter-side USB-C casting accessory |
| Compatible base | eShare W50 |
| Maximum casting | 1080p30 |
| Host requirement | Video-capable USB-C |
| Power | USB host power, 5V |
| Controls | Casting button |
| Room USB forwarding | Not supported through D10 |
A little clarity before you buy.
Can I use it with any TV?
Not directly. A compatible eShare base receives the wireless connection and supplies the TV’s HDMI signal.
Does any USB-C laptop work?
The USB-C port must support the required video output. Connector shape alone is not enough.
Can it share a room camera wirelessly?
No. D10 is for screen casting; use W50’s wired USB host path for the room camera.
