A small extender for a longer Full HD connection.
Place the source equipment where it belongs and keep the viewing area uncluttered. HDEX40-L carries HDMI video and embedded audio between a matched transmitter and receiver over Cat6a / Cat7 for the 50m limit, making longer installed connections easier to plan.

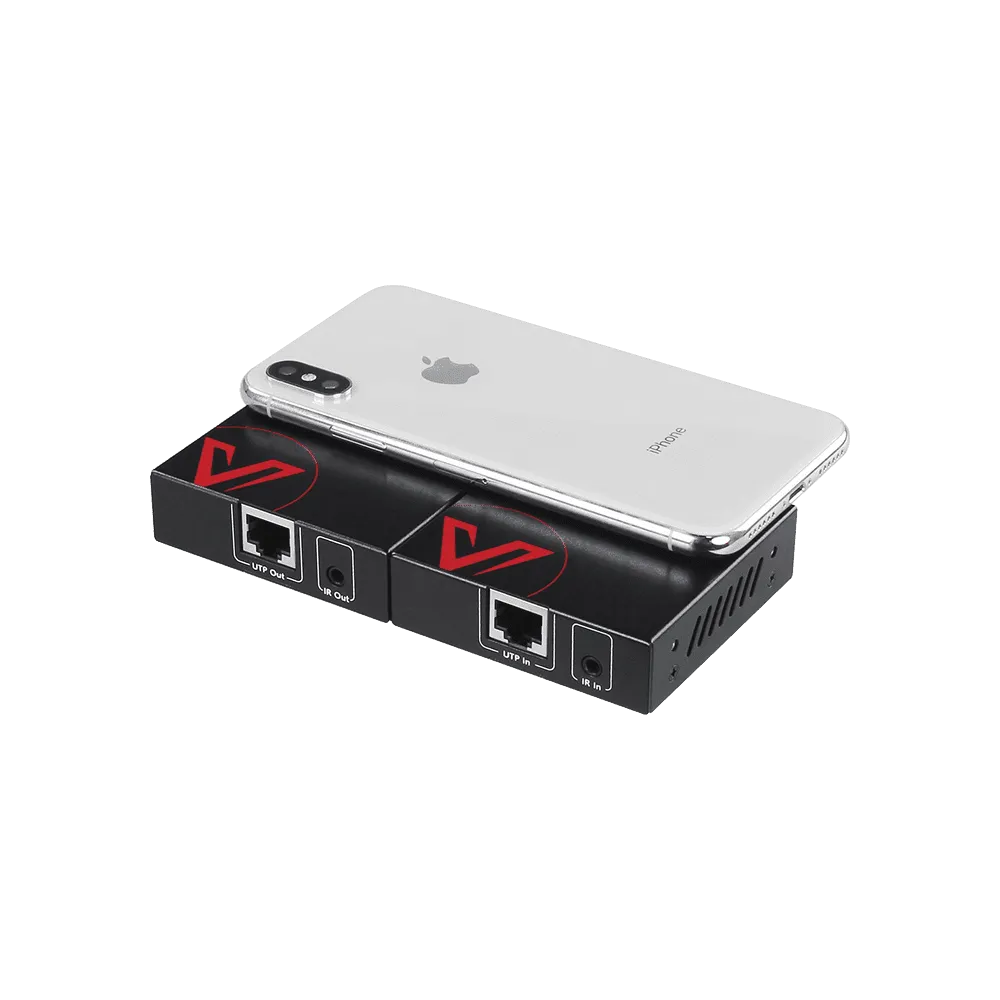

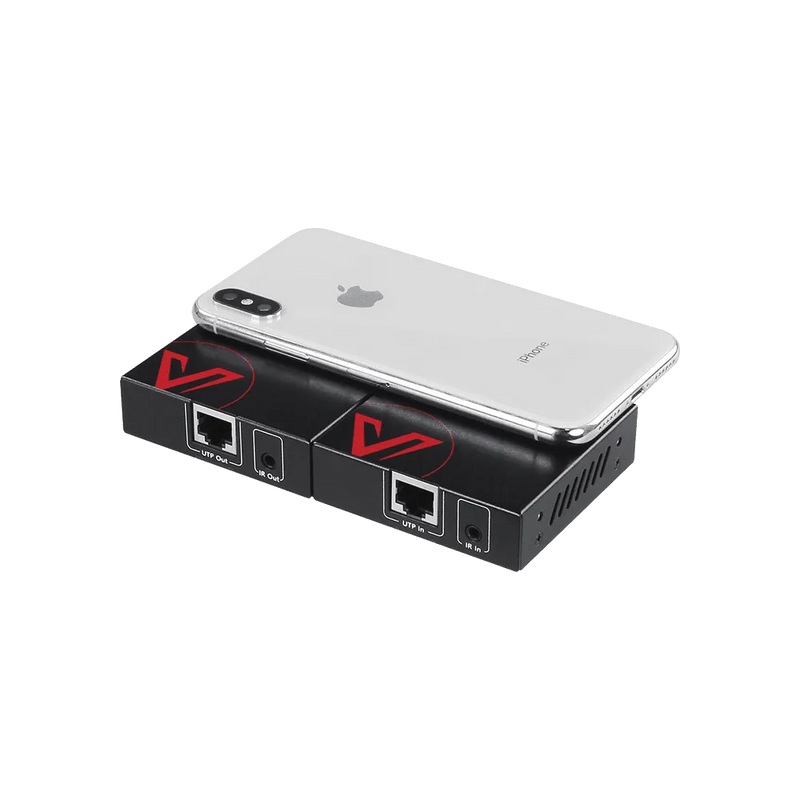

HDEX40-L

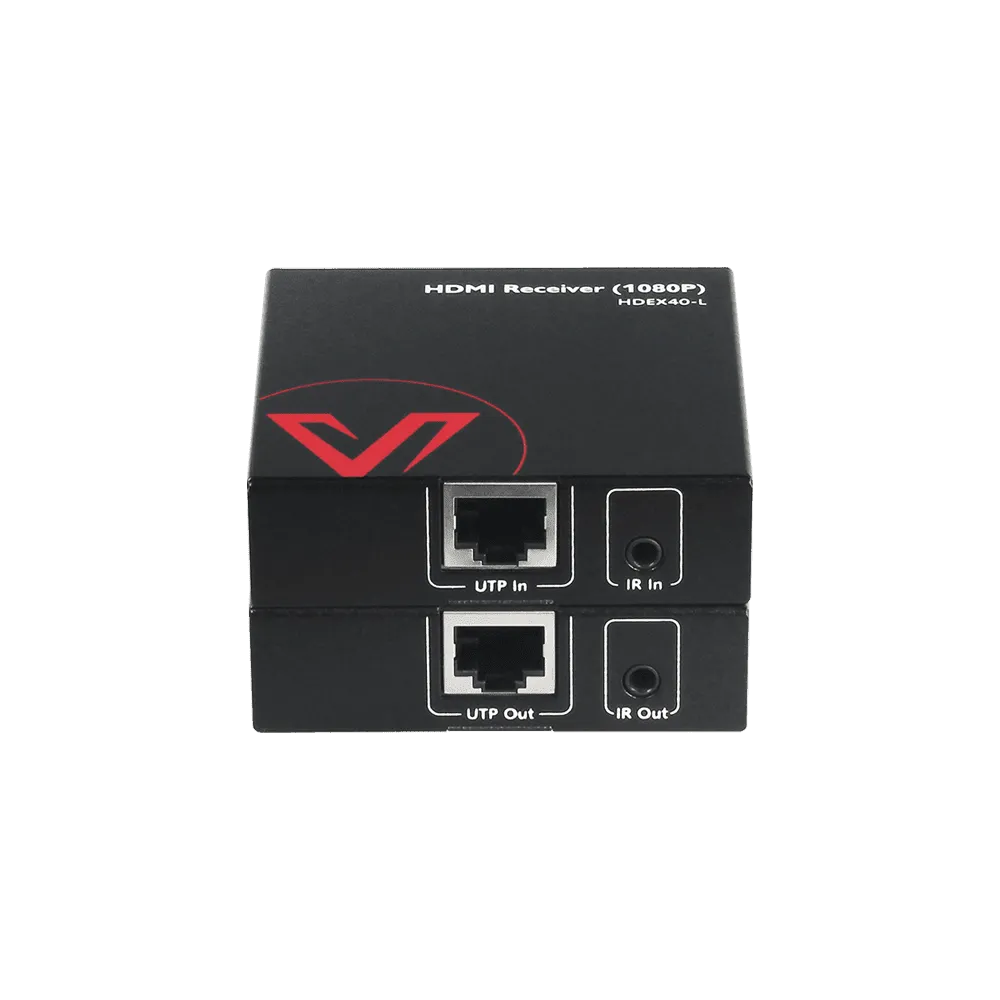

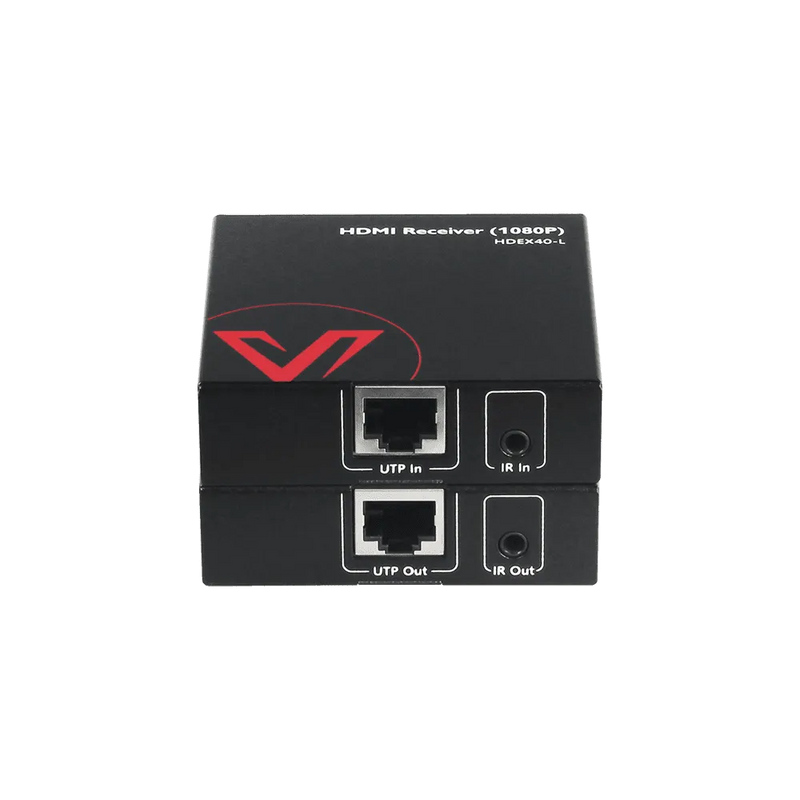

Know what connects where.
Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
Bring the picture to the right place

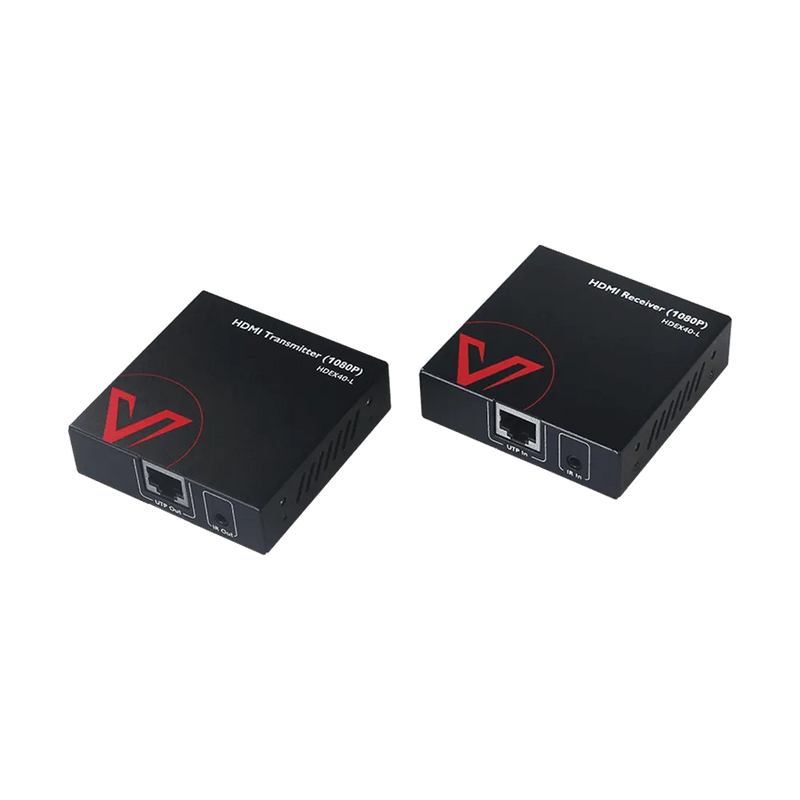

Use the transmitter beside the source and the receiver beside the remote display. The specified video limit is 1080p at 60Hz; distance depends on cable type and the selected signal. Up to 50m with Cat6a/7 is the relevant planning limit for this model.
Keep the remote end useful
A compact HDMI link with stereo PCM audio and IR source control suits TVs, displays and presentation systems that need Full HD output. Set the cable-equalisation switch for the actual link length.
Plan the cable and power together
Use Cat6a / Cat7 for the 50m limit. The supplied adapter powers the matched units through PoC. Test the complete link, including short video cables at each end, before pulling cable through walls or securing equipment.
Make sure it fits your setup.
The correct cable
Cat6a / Cat7 for the 50m limit. Use a properly terminated, continuous run within the documented distance.
Direct link required
Connect the labelled extender ports directly to one another. An RJ45 connector does not make this link compatible with a normal Ethernet switch.
Power and peripherals
The supplied adapter powers the matched units through PoC. This model is for video/audio extension; it is not a general USB extender.

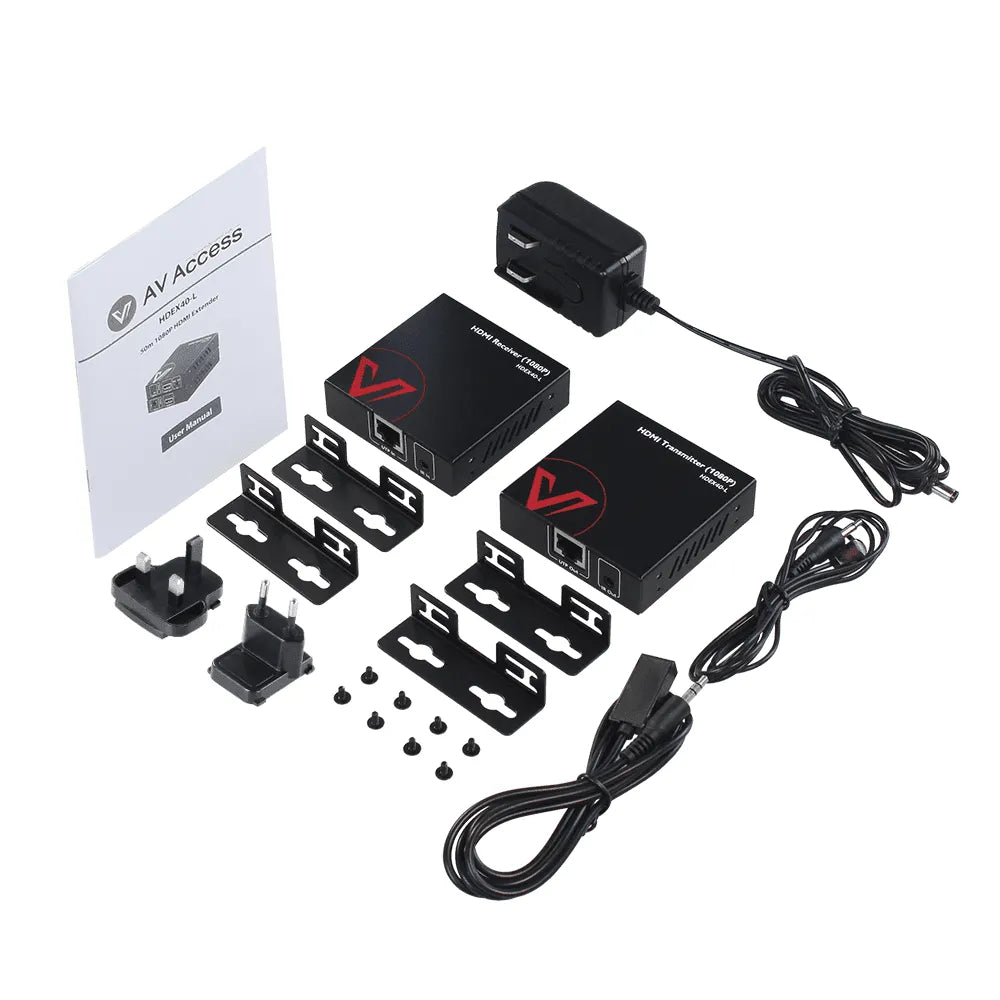

From unboxing to connected.
Plan the link
Match the cable type, total length and required resolution to this model’s limits.
Connect both ends
Put the transmitter at the source and the receiver at the display or USB devices.
Power the kit
Use the power connection specified for this model; then check the link indicators.
Test before installing
Confirm video, sound and any USB/control functions before securing the cable run.
HDEX40-L at a glance.
| Model | HDEX40-L |
|---|---|
| Maximum video | 1080p at 60Hz |
| Transmission range | Up to 50m with Cat6a/7 |
| Link medium | Cat6a / Cat7 for the 50m limit |
| Topology | Point-to-point transmitter + receiver |
| Power arrangement | The supplied adapter powers the matched units through PoC. |
| Additional functions | A compact HDMI link with stereo PCM audio and IR source control suits TVs, displays and presentation systems that need Full HD output. Set the cable-equalisation switch for the actual link length. |
| HDMI / HDCP | HDMI 1.3b / HDCP 1.4 |
| Bandwidth | 6.75Gbps |
| Audio | Stereo PCM |
| Equalisation | 30m / 50m switch settings |
A little clarity before you buy.
Can I connect it through a network switch?
No. This model needs the specified direct link between its transmitter and receiver. Choose a documented AV-over-IP model for switched-network distribution.
Is the maximum distance the same at every resolution?
Up to 50m with Cat6a/7. Follow the model documentation for cable category and signal-specific limits.
What should I check if there is no picture?
Check input/output direction, power indicators and cable termination. Try a lower source resolution and a short known-good link before testing the installed run.
