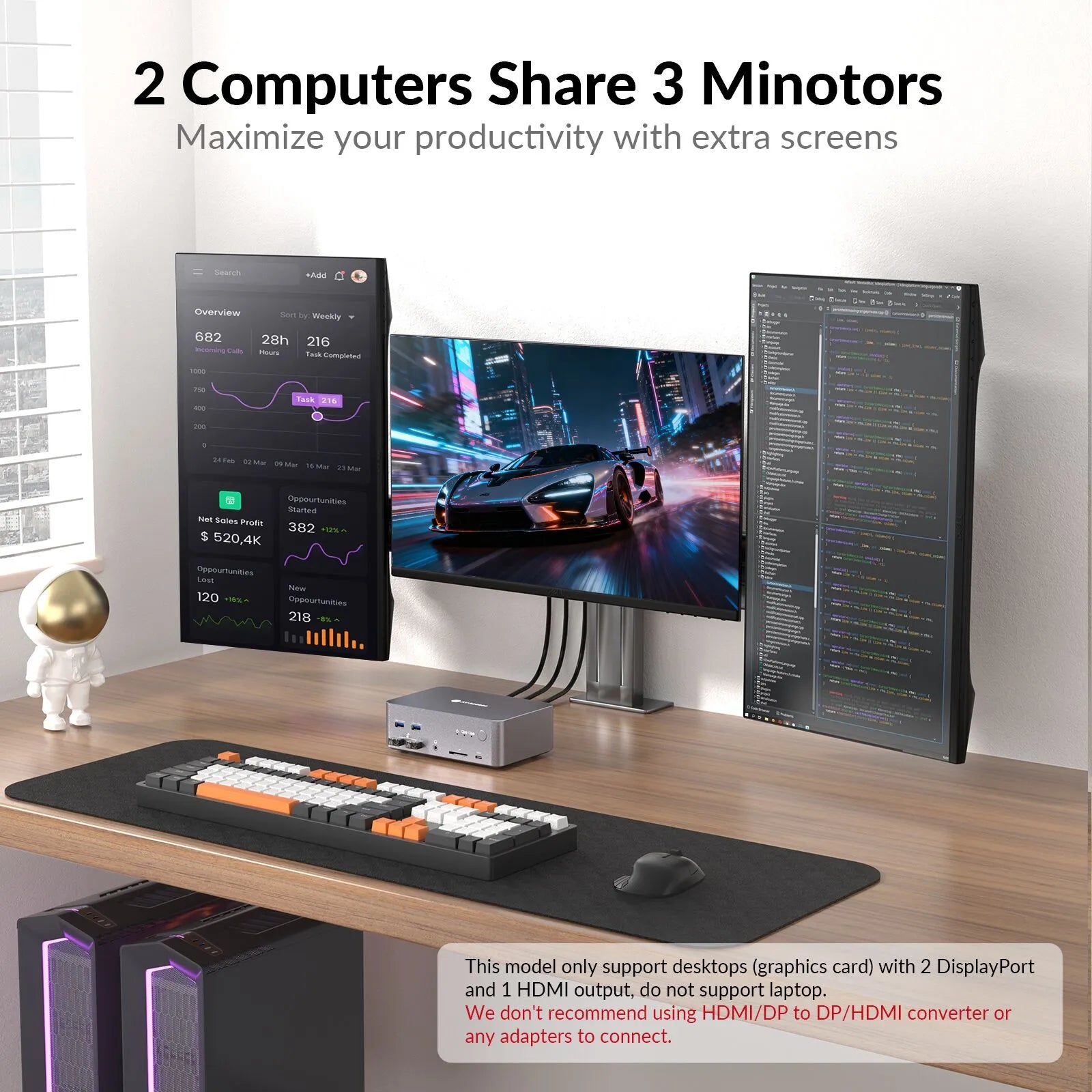

A bigger workspace, across three displays.
Give two computers access to the same 3-monitor workspace and USB accessories. iDock D23i switches the hardware connections at your desk, letting you move between work, creative projects and gaming without moving the cables.

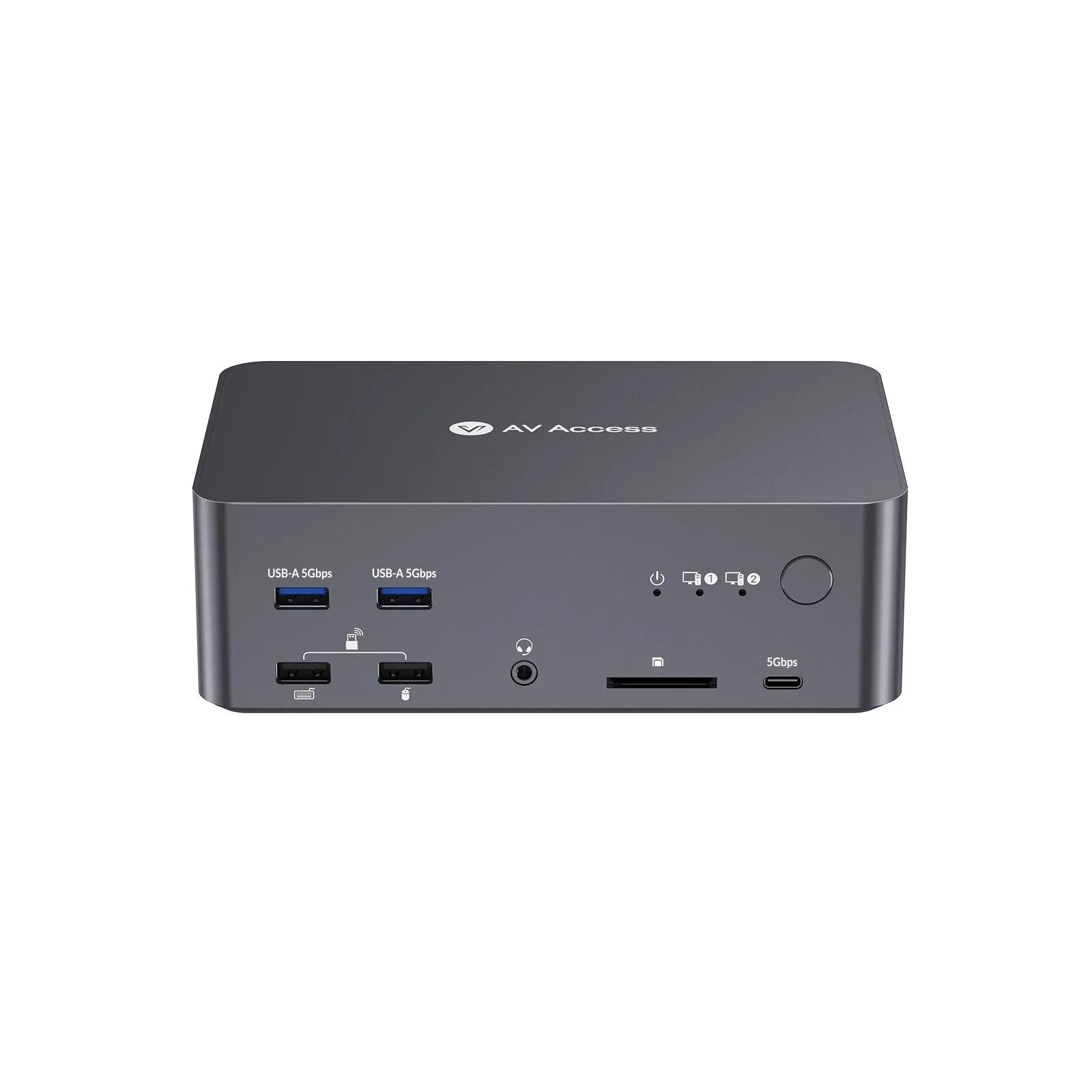

iDock D23i
Know what connects where.

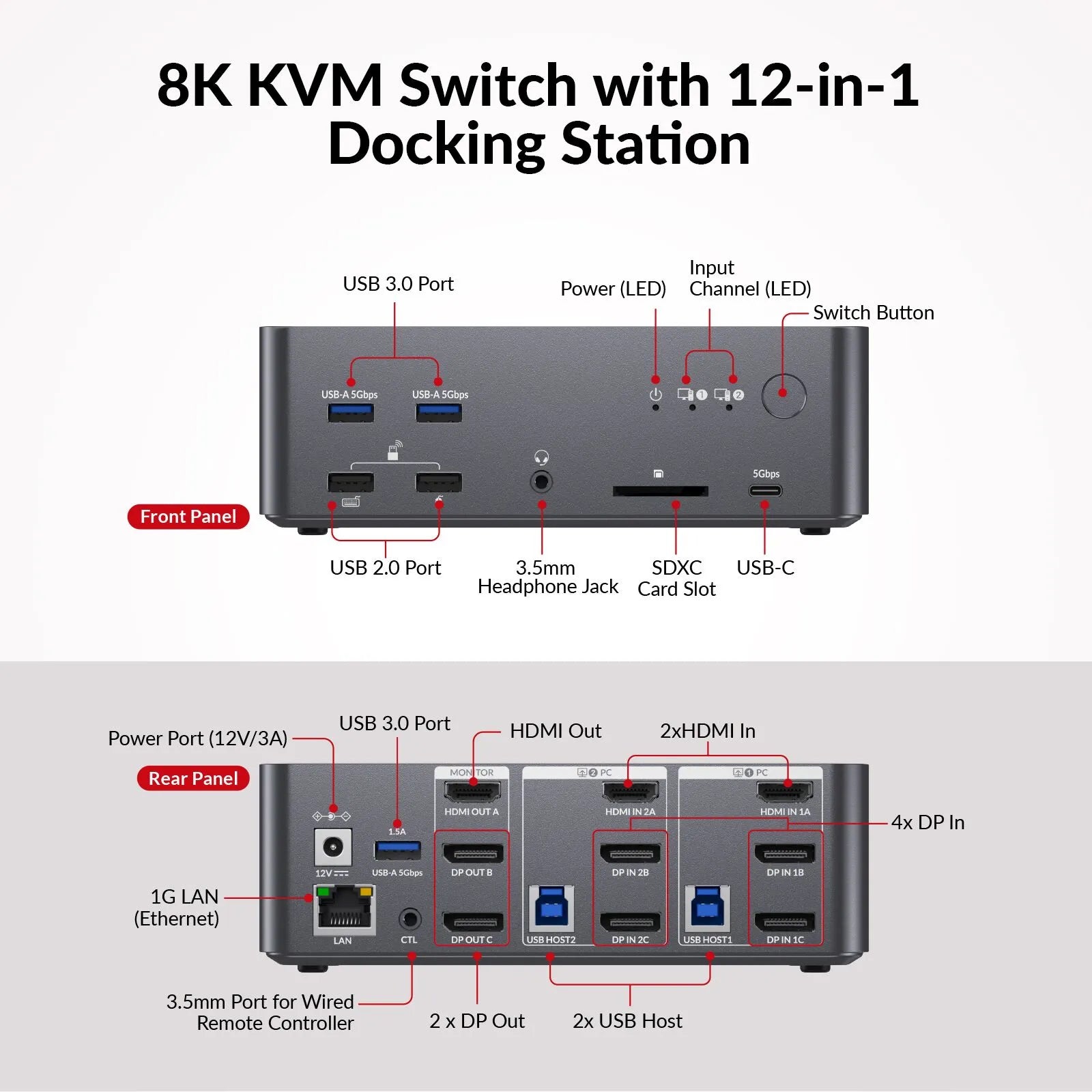

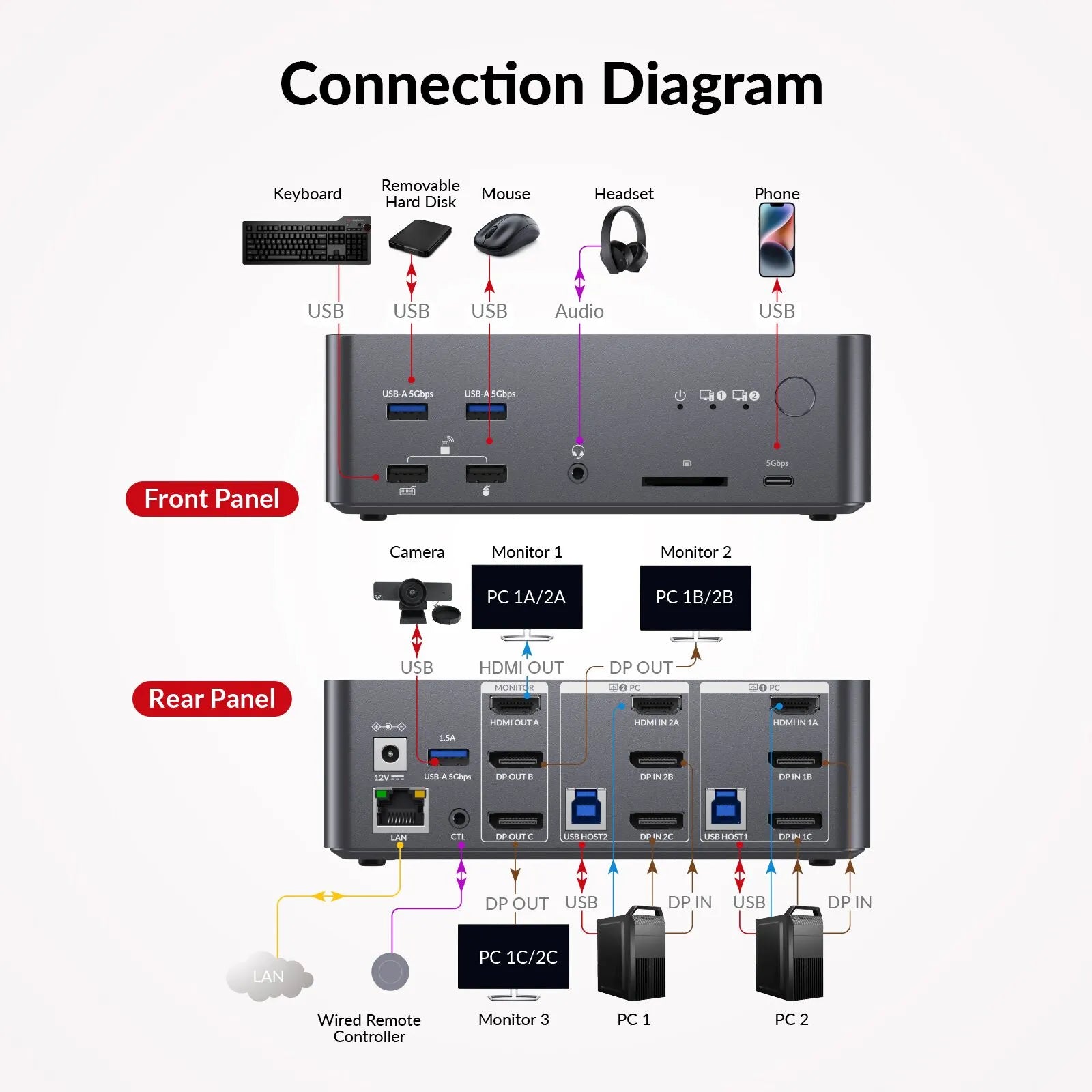

Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
A separate signal for every screen
Connect 2 × DisplayPort + 1 × HDMI and a USB host cable from each computer. These are independent video paths: using fewer video cables means fewer active displays. Select extended or mirrored mode in the computer’s display settings.
Keep motion and detail in balance

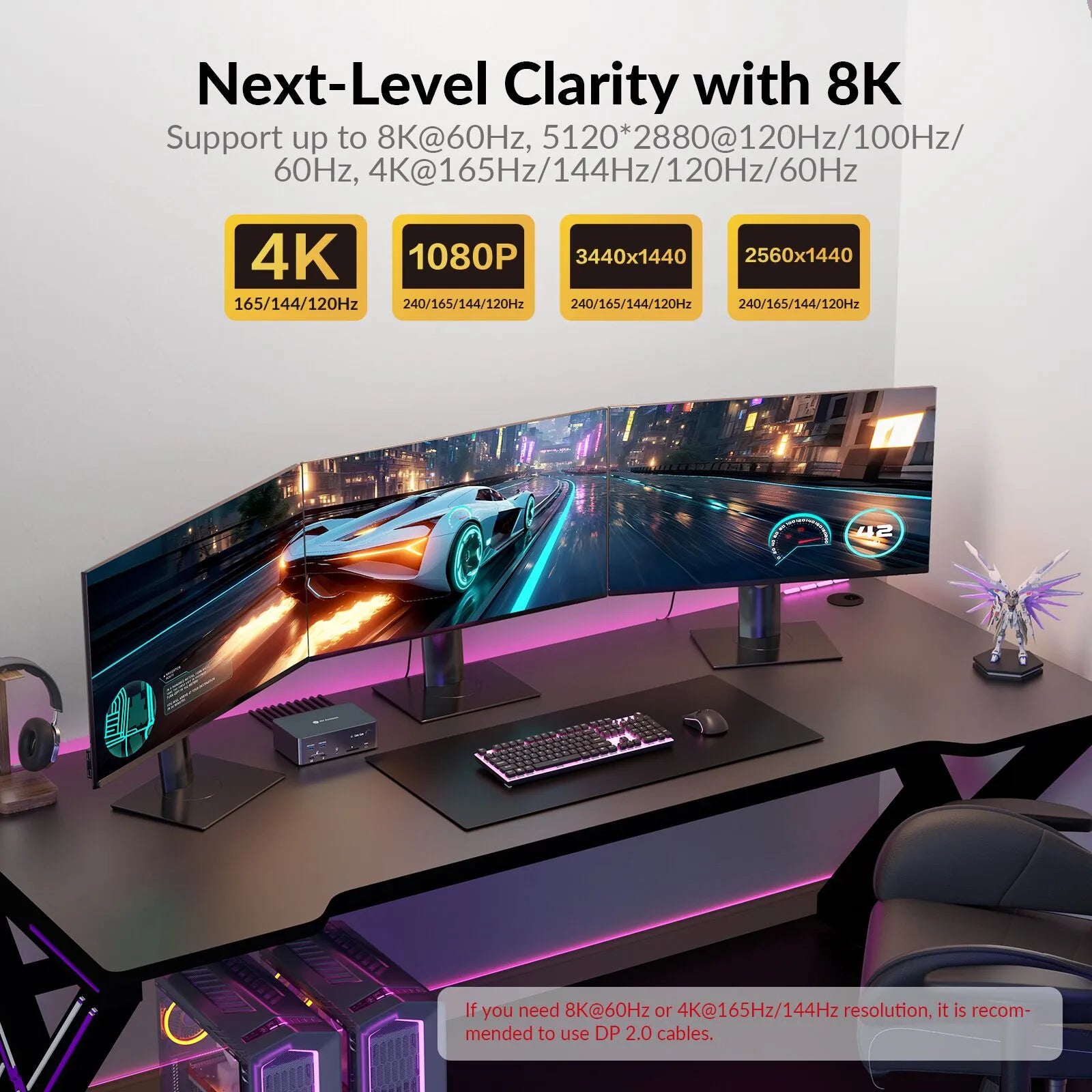

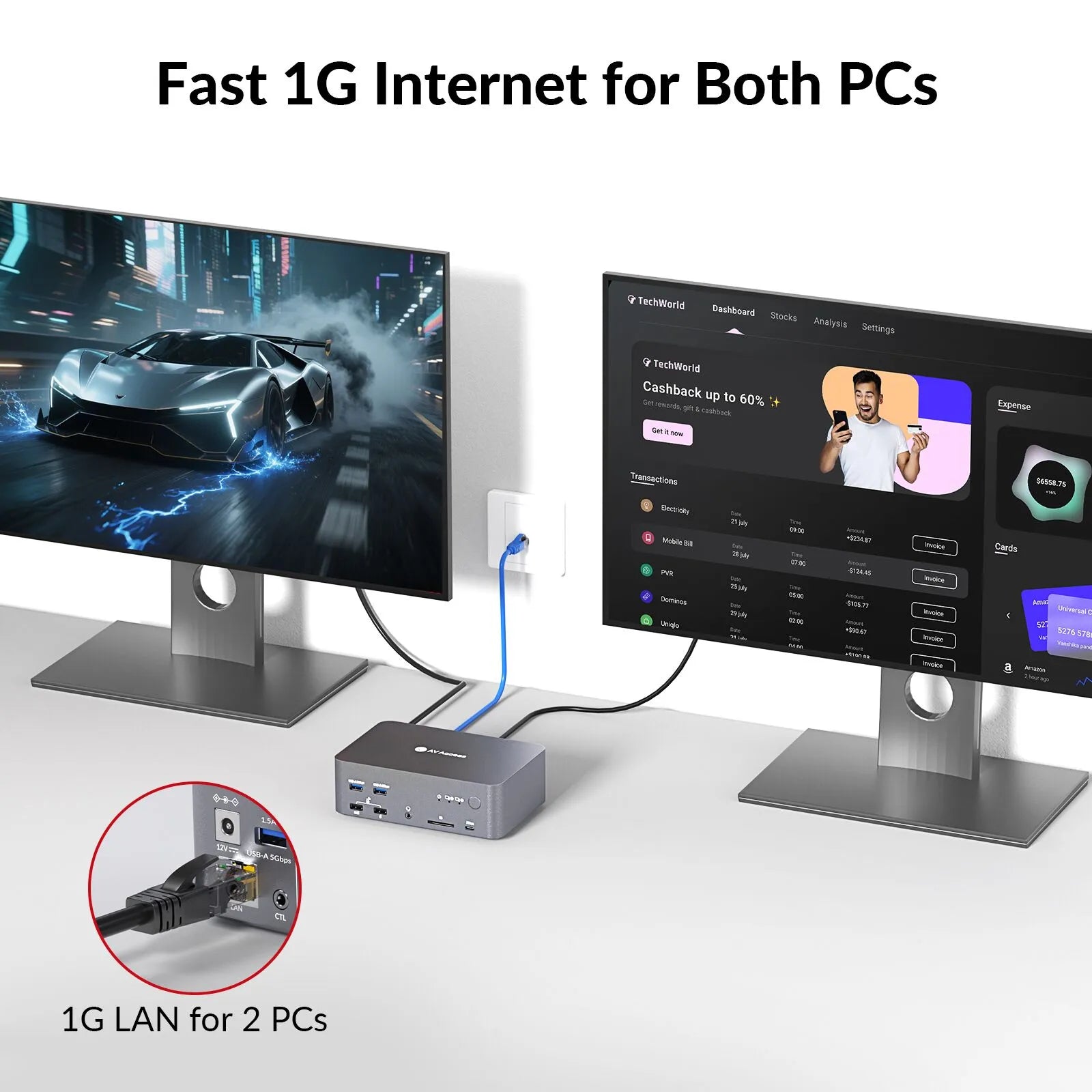

Use two DisplayPort screens and one HDMI screen with up to 8K 60Hz or 4K 165Hz on compatible hardware. G-Sync, FreeSync and VRR support help preserve smooth motion. Gigabit Ethernet, SDXC and headset ports complete the desk.
Change computers without changing the desk
Use the front button or included EXB01 wired remote. Keep the shared keyboard, mouse and other supported USB peripherals connected to the switch. No EDID or HID emulation; no keyboard-hotkey switching.
Make sure it fits your setup.
Check the source ports
Each computer needs 2 × DisplayPort + 1 × HDMI plus USB for the full setup. Video connectors alone do not carry the keyboard and mouse connection.
Match the monitor inputs
Use displays with matching 2 × DisplayPort + 1 × HDMI inputs or a specifically compatible active conversion solution. Passive connector adapters are not universally interchangeable.
Know the switch behaviour
No EDID or HID emulation; no keyboard-hotkey switching.
From unboxing to connected.
Check the computers
Confirm video outputs, USB host connections and the supported display count.
Connect the displays
Match the labelled monitor outputs to the display inputs using suitable cables.
Add your peripherals
Attach keyboard, mouse and other devices; connect the specified power supply.
Select and configure
Select a computer, then set resolution, refresh rate and display mode in its settings.
iDock D23i at a glance.
| Model | iDock D23i |
|---|---|
| Computer inputs | 2 groups; each uses 2 × DisplayPort + 1 × HDMI + USB host |
| Display outputs | 2 × DisplayPort + 1 × HDMI |
| Maximum video | 8K at 60Hz; source, display and cable dependent |

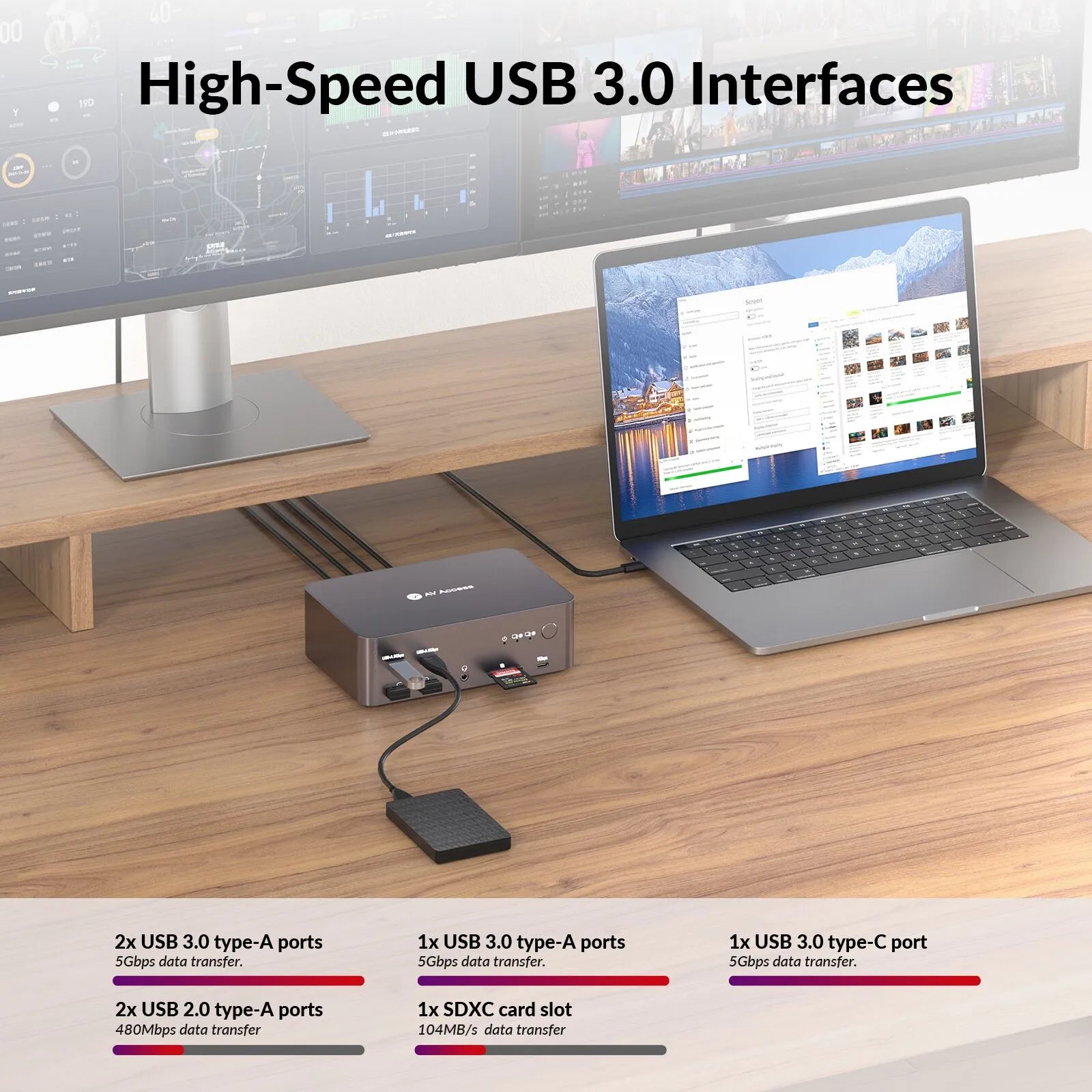

| Shared USB | 5Gbps |
| Switching | Use the front button or included EXB01 wired remote |
| Display retention | No EDID or HID emulation; no keyboard-hotkey switching. |
A little clarity before you buy.
Do I need a USB cable from each PC?
Yes. Video cables carry the image, while a USB host connection carries the peripheral connection to the selected computer.
Does a splitter create a second desktop output?
A conventional splitter repeats one video signal. For independent extended monitors, provide a separate supported source signal for each video input.
Will every game console use all the features?
Console video and USB-device support vary. Check the console’s display output and supported input devices before planning a console setup.
Can I switch only one monitor?
No. All three monitors follow the selected computer together. D23i does not support assigning some monitors to one PC and the rest to another.
