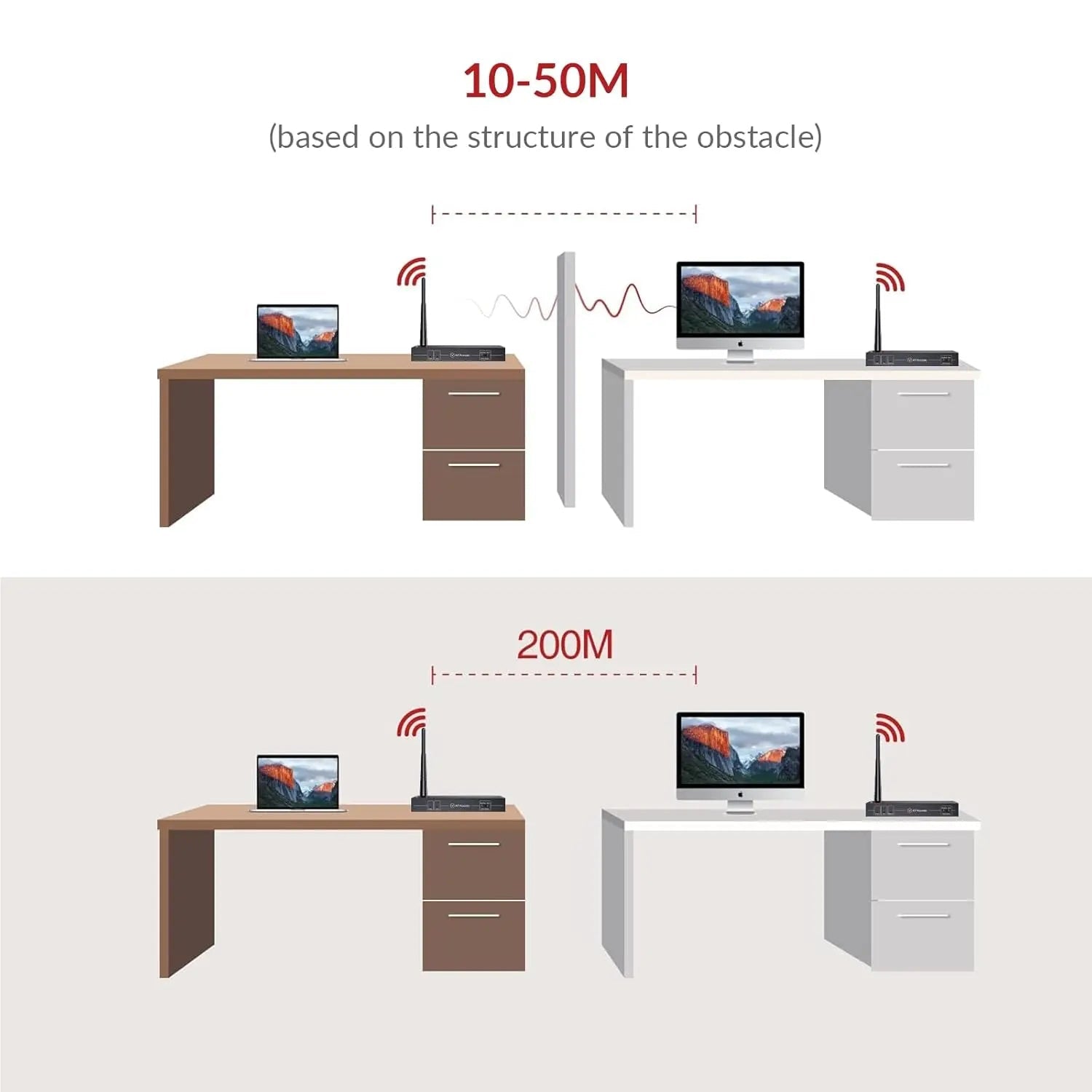

The HDW100 wireless HDMI extender can transmit a 1080P full HD HDMI signal wirelessly up to 200m/656ft in an open field. Even if there is an interior drywall or other obstructions between the transmitter and the receiver, the signal can still transmit 10m-50m(32ft-165ft), stable and reliable.
Note: HDW100 is not recommended for real-time applications, such as PC gaming and high-speed sports program. The HDMI local output has zero latency and can be connected to a local display.
Wired or Wireless, up to You
The 1080P HDMI extender offers you truly wireless freedom as it saves the hassles of running cables through walls or drilling holes. It is an ideal choice for both home and business applications where it is not convenient to install long Ethernet cables. If you prefer wired transmission, you can toggle the DIP switch on the device to switch to wired mode.
Auto Pairing, Plug & Play
The wireless HDMI transmitter and receiver kit is quite portable and easy to install. After power-on, they can automatically get paired within the appropriate range. No software driver or complicated setting is required; just plug and play.
Low Latency on Signal Transmission
The wireless 1080 HDMI extender can transmit lossless signals and may have a transmission latency of 0.1-0.2 second, which depends on the signal quality. It is great for TVs, movies and video presentations. For signals from the HDMI local output, there is no delay at all.

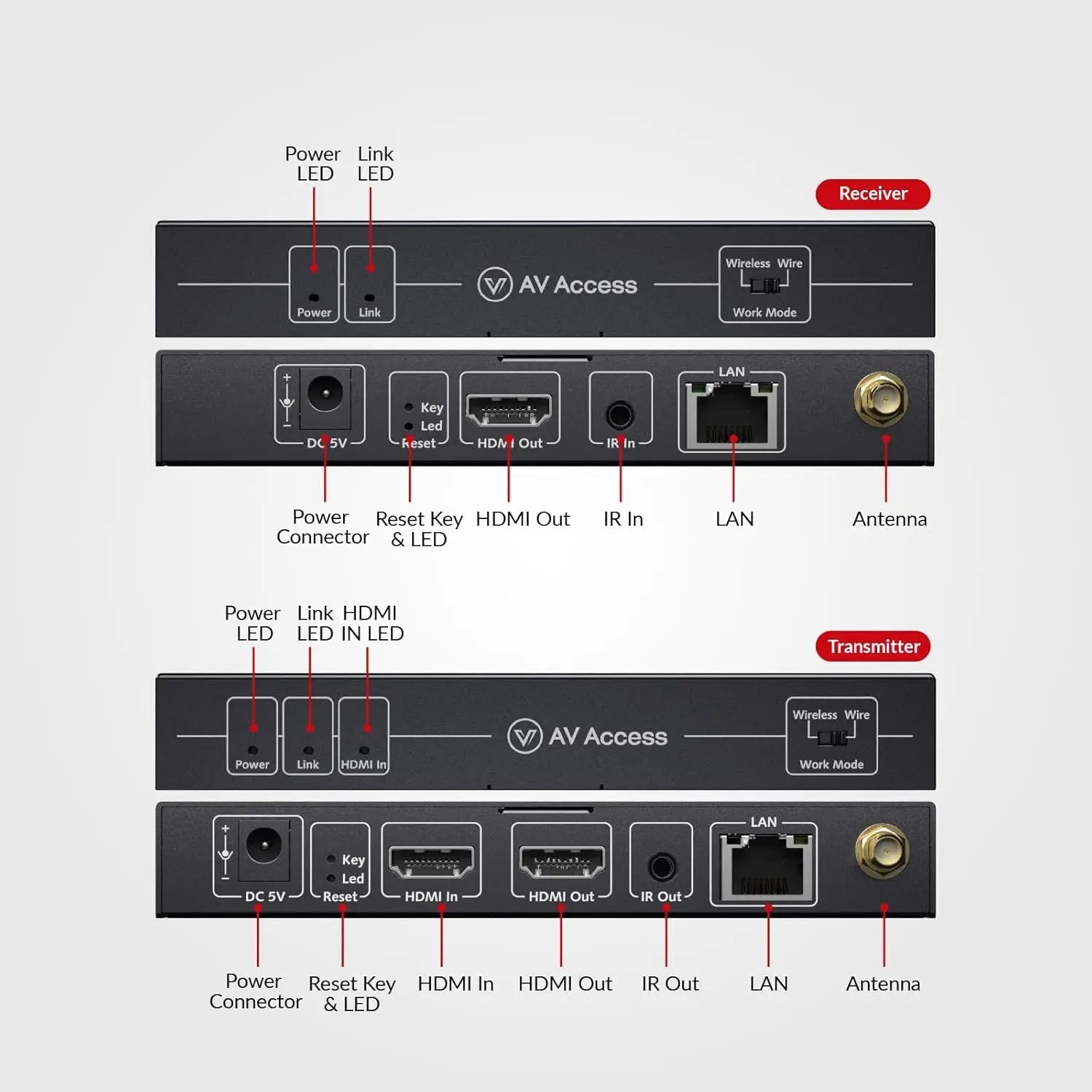

HDMI Local Output & IR Remote Control

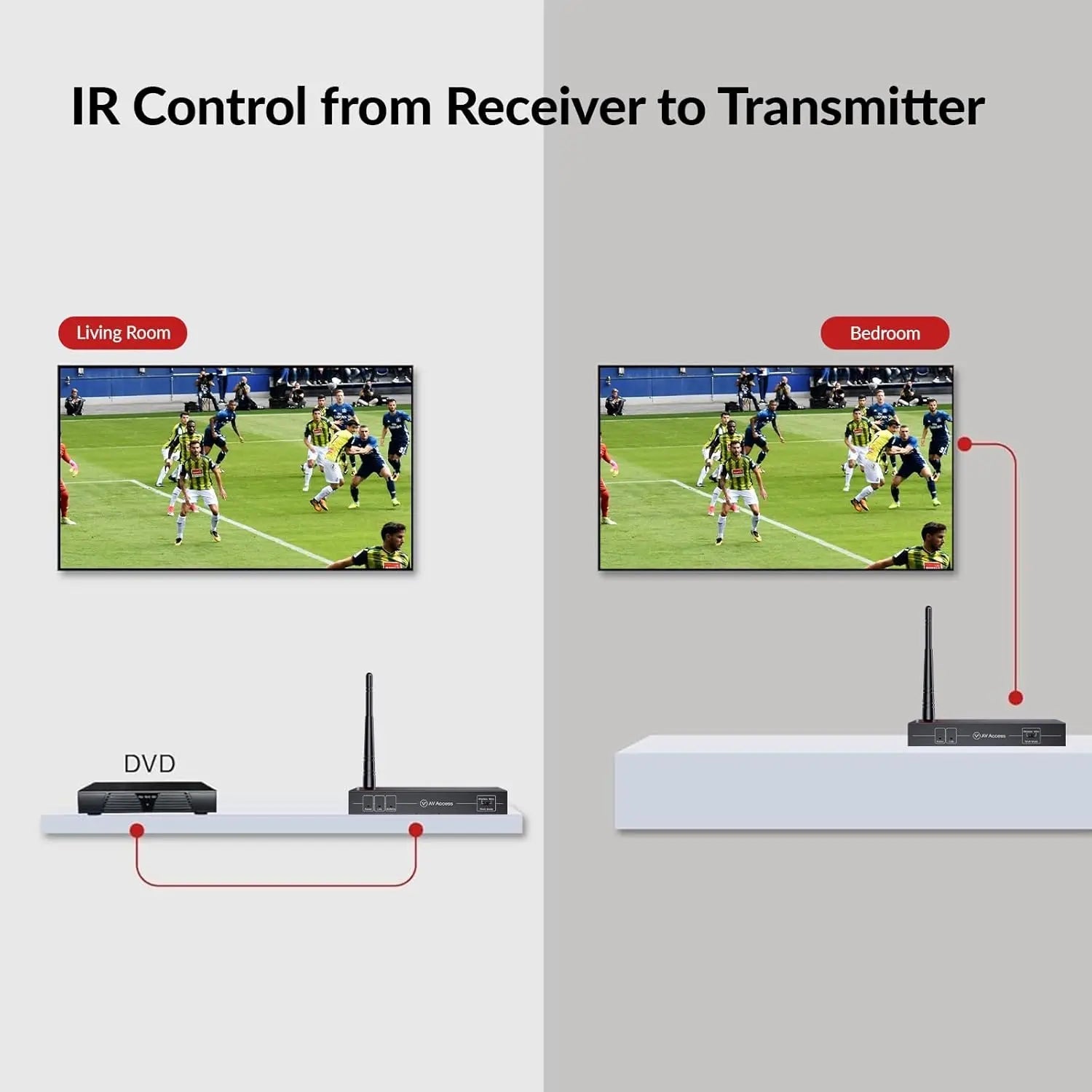

With the HDMI local output on the transmitter, you can connect it to a local monitor to easily preview whatever image streamed to the remote side. What’s more, with the included IR signal emitter and receiver, you can effortlessly control your source device even at the receiver side.

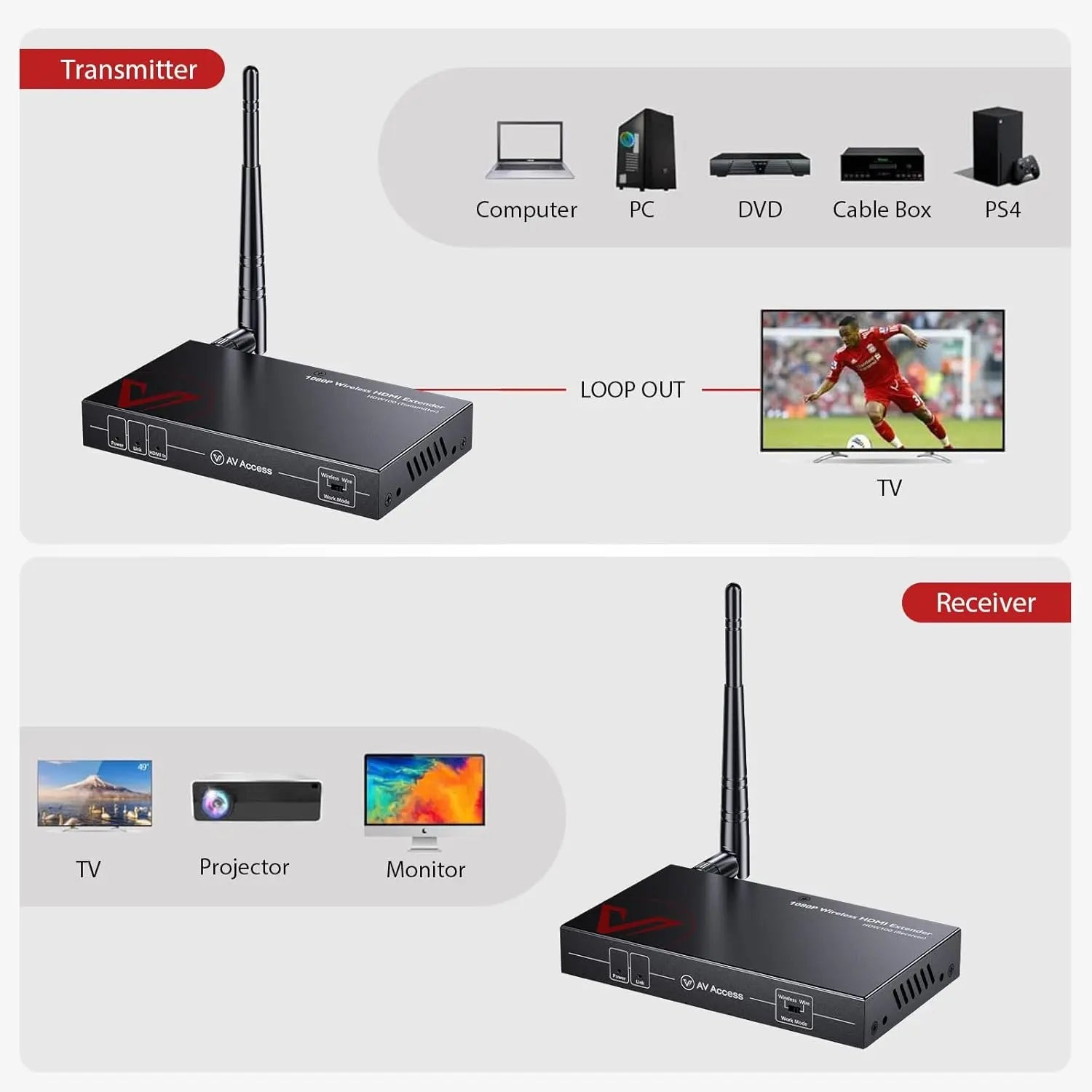

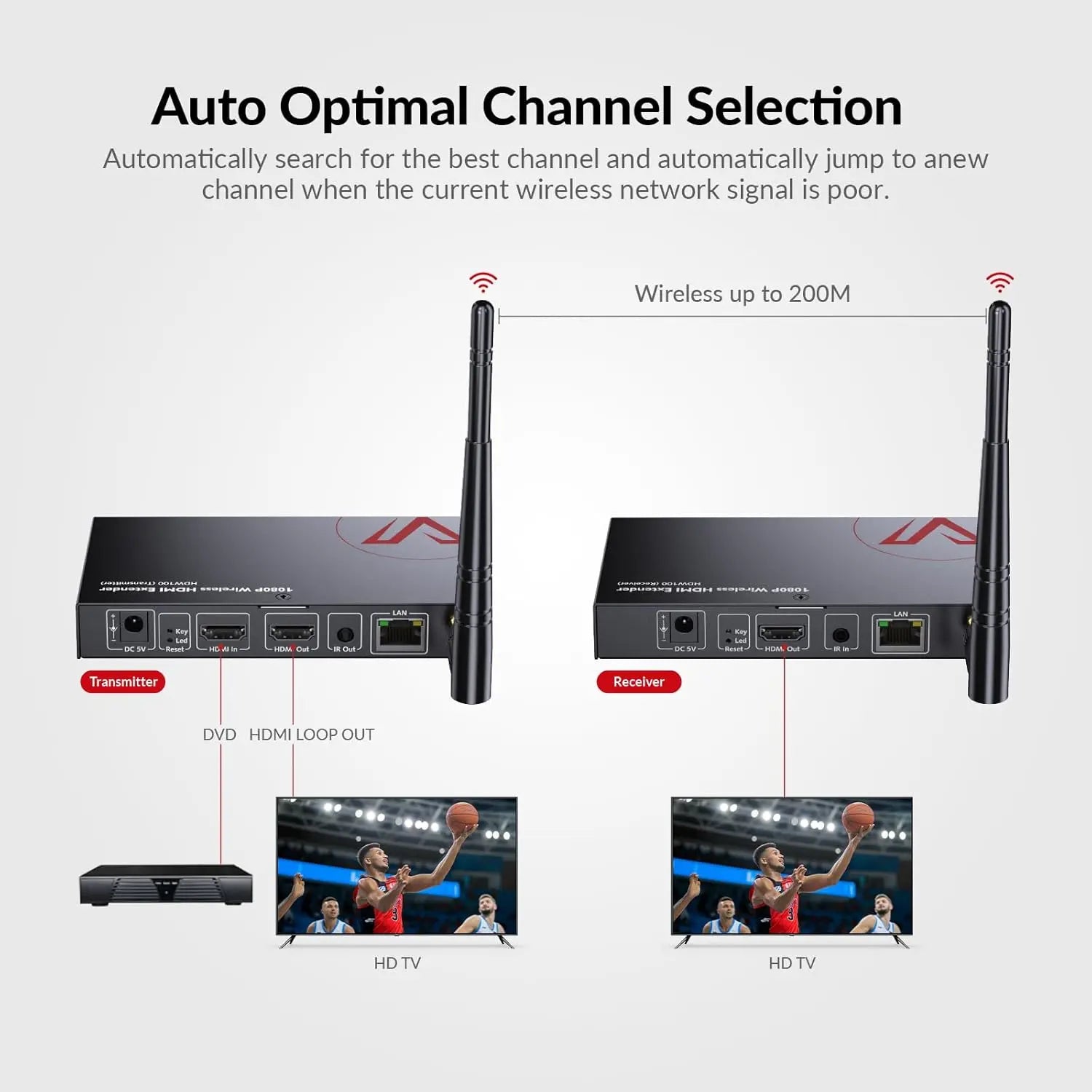

Connection Diagram
🔑 Key Benefits & Features
-
📡 Ultra-Long Wireless Transmission: Extends 1080P HDMI video wirelessly up to 200 m / 656 ft (line-of-sight) — great for large rooms or open spaces.
-
🔌 Wired Option (Cat5e/6): Also supports wired HDMI extension up to 120 m / 394 ft via Cat5e/6 cable when wireless conditions aren’t ideal.
-
🎥 True 1080P@60Hz Output: Delivers smooth Full HD video and clear audio for TV, projectors, set-top boxes and streaming devices.
-
🔄 HDMI Loop-Out on Transmitter: Local HDMI output lets you connect a nearby display to monitor or preview the source signal while transmitting remotely.
-
🔁 IR Remote Control Pass-Through: Includes IR emitter/receiver to control the source device from the receiver/display location.
-
🧠 Plug & Play, Low Latency: Automatic pairing with minimal setup — no drivers required, with low wireless latency (~0.1–0.2 s) ideal for video and presentations (but not recommended for fast gaming).
-
🏡 Versatile Use Cases: Ideal for home theaters, conference rooms, training spaces, classrooms, business presentations and multi-room AV setups

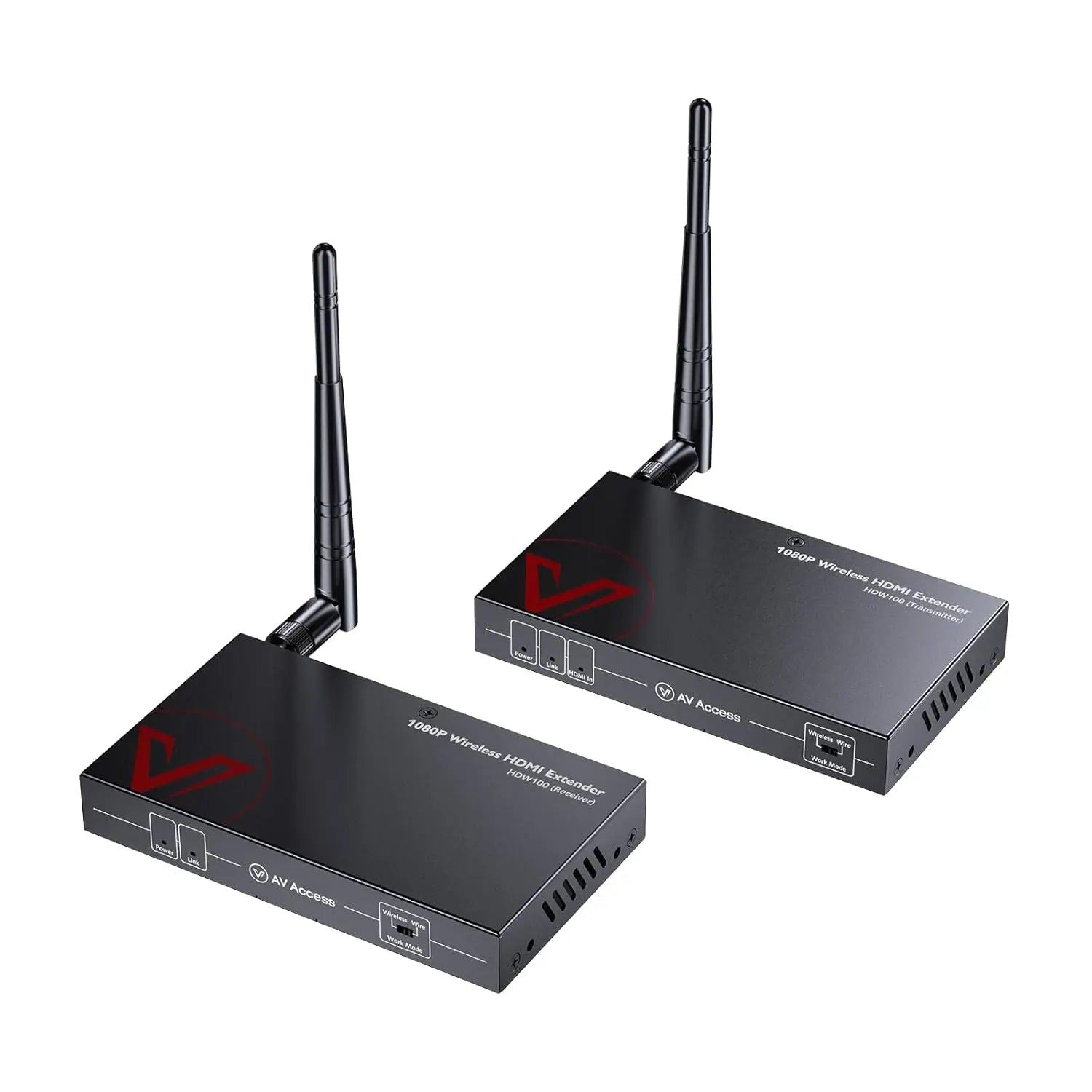

The AV Access HDW100 Wireless HDMI Extender provides a flexible way to transmit your HDMI source — such as a Blu-ray player, streaming box, set-top box, or media player — to a remote display without running long HDMI cables. It supports 1080P@60 Hz video transmission wirelessly up to 200 m (656 ft) under clear line-of-sight conditions, and up to 120 m (394 ft) over a Cat5e/6 cable. The kit includes transmitter and receiver modules, antennas, IR remote control extension, and power adapters for both ends. The transmitter also features an HDMI loop-out port so you can view the source locally while sending the signal elsewhere. With plug-and-play convenience and low latency, it’s perfect for home theaters, offices, and installations where running cables is impractical.
📌 Specifications
| Specification | Detail |
|---|---|
| Product | AV Access HDW100 Wireless HDMI Extender |
| Model | HDW100 |
| Video Resolution | Up to 1080P@60Hz |
| Wireless Range | Up to 200 m / 656 ft (line-of-sight) |
| Wired Range | Up to 120 m / 394 ft (Cat5e/6) |
| HDMI Loop-Out | Yes (Transmitter) |
| IR Bidirectional | Yes (Transmitter & Receiver) |
| Cable Support | Cat5e/6 |
| Setup | Plug & Play (no drivers) |
| Power | DC 5V/1A adapters (included) |
| Ideal For | Home theater, classrooms, offices, presentations |
| Compliance | HDMI 1.3, HDCP 1.4 |
| Transmission Type | Wireless & wired hybrid |
| Latency | Low (~0.1–0.2 s) |

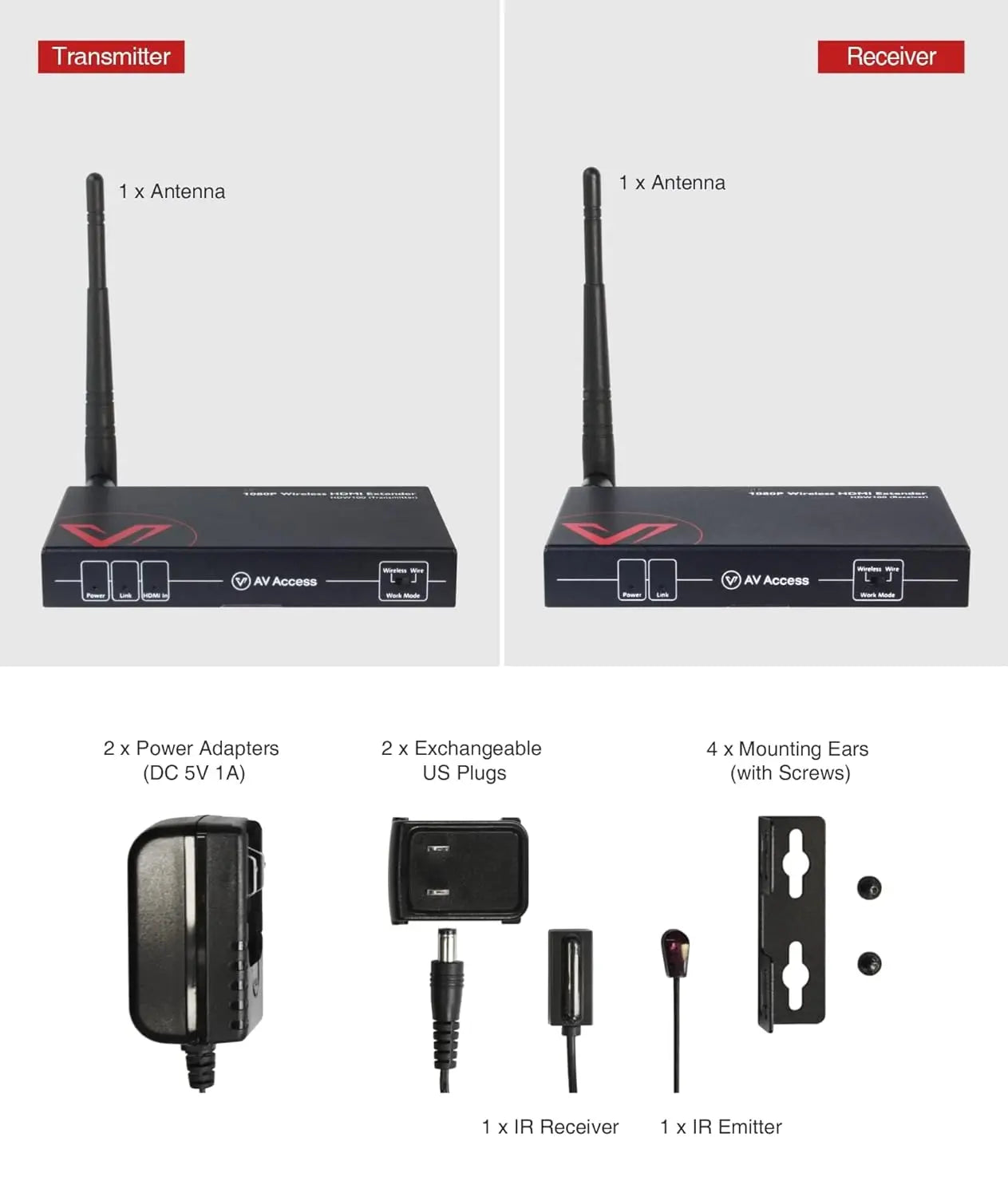

📌 What’s in the Box
- 1 × HDW100 Transmitter
- 1 × HDW100 Receiver
- 2 × Antennas
- 2 × DC 5V/1A Power Adapters
- 1 × IR Emitter Cable
- 1 × IR Receiver Cable
- 4 × Mounting Ears with Screws
- 1 × User Manual
📌 FAQs
Q: How far can this extender transmit HDMI wirelessly?
A: Up to 200 m / 656 ft line-of-sight, and about 10–50 m (32–165 ft) through interior walls depending on obstacles.
Q: Can I use a cable instead of wireless?
A: Yes — you can switch to wired mode and use a Cat5e/6 cable up to 120 m / 394 ft.
Q: Does it work with projectors?
A: Yes — excellent for connecting media players to projectors or displays where HDMI cables are impractical.
Q: Can I control the source from the remote end?
A: Yes — included IR extension lets you control the source device from the display location
