One laptop connection. A much larger workspace.
Connect a compatible USB-C laptop to displays, fast USB accessories, wired networking and power through a desktop dock. KD-S03 provides two DisplayPort outputs and one HDMI output, with the supported screen arrangement determined by the laptop’s native video capability.
KD-S03
Know what connects where.
Connection overview. Check the requirements below for the exact ports, cable type and supported operating mode.
Three screens, with the right host

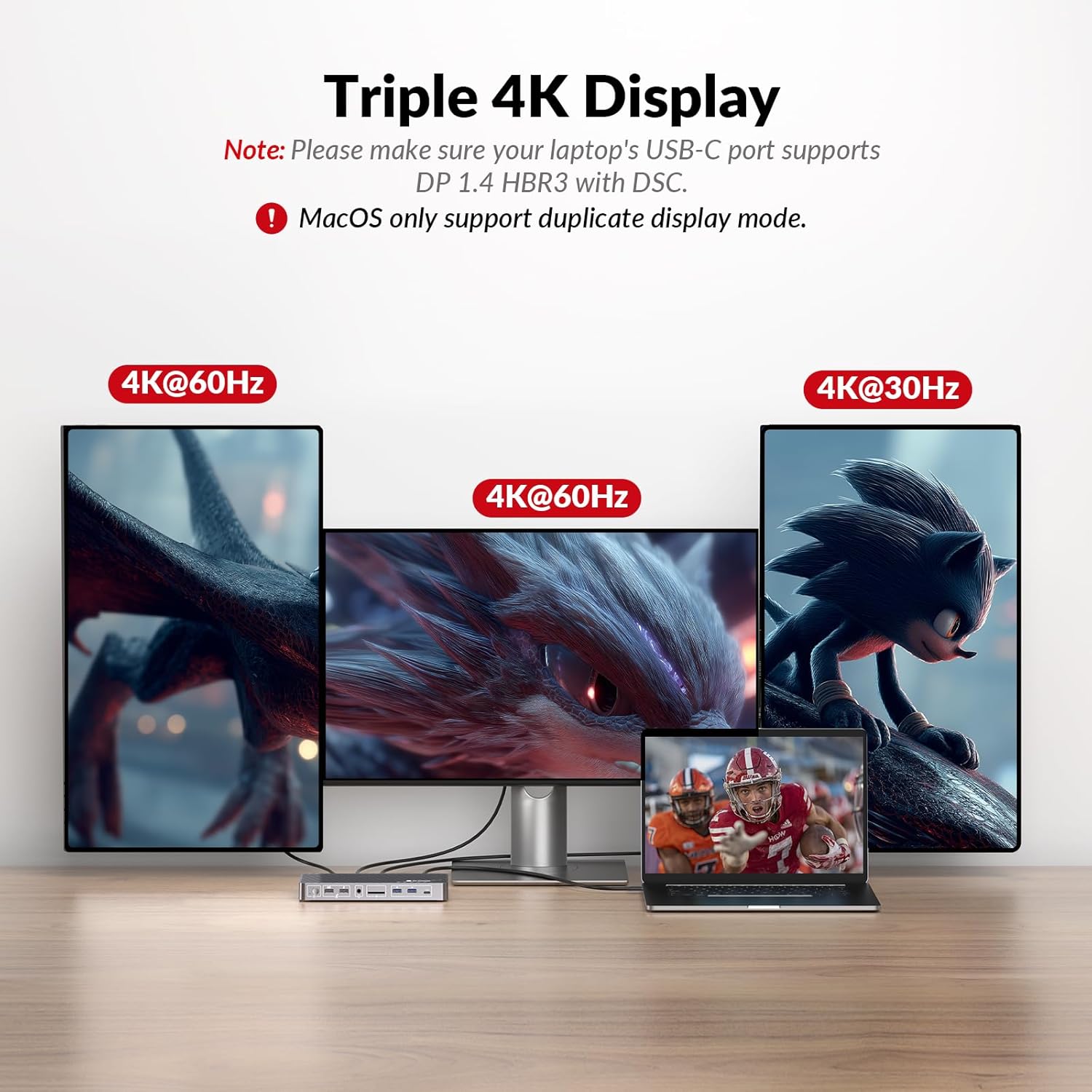

The model manual specifies up to two 4K60 screens plus one 4K30 screen when the host provides DP 1.4 HBR3 with DSC. A lower-bandwidth host supports lower combinations; three display connectors do not guarantee three 4K60 screens.

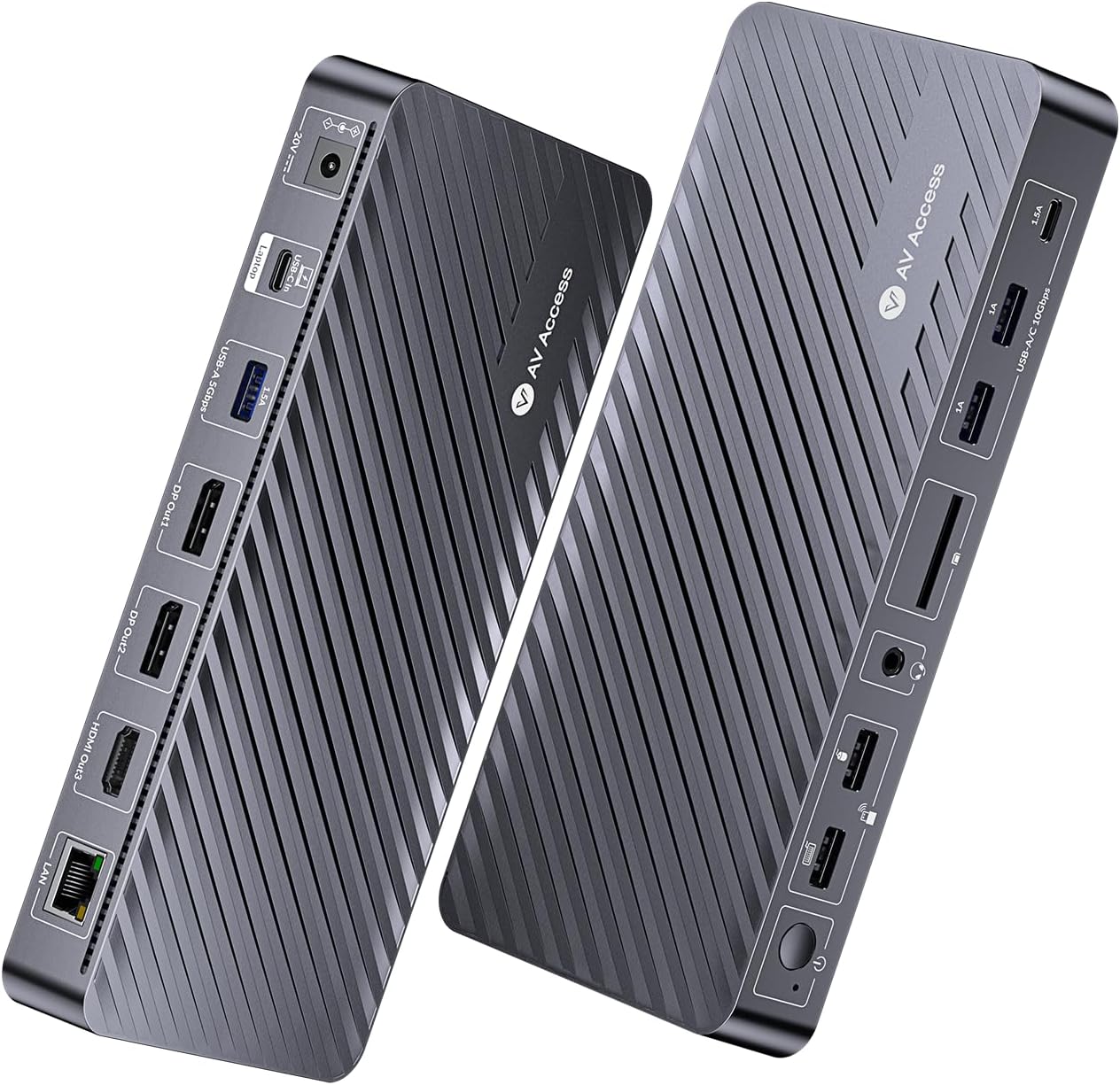

Keep the everyday ports within reach
Selected front USB-A and USB-C data ports support up to 10Gbps. Additional rear USB ports, an SDXC reader, Gigabit Ethernet and a headset jack provide a practical home for desk accessories.
Dock and charge in one step
The included power supply enables up to 100W USB-C charging for a compatible laptop. Connect the full-featured host cable to a port that supports video, data and the laptop’s required charging mode.
Make sure it fits your setup.
Windows display capability

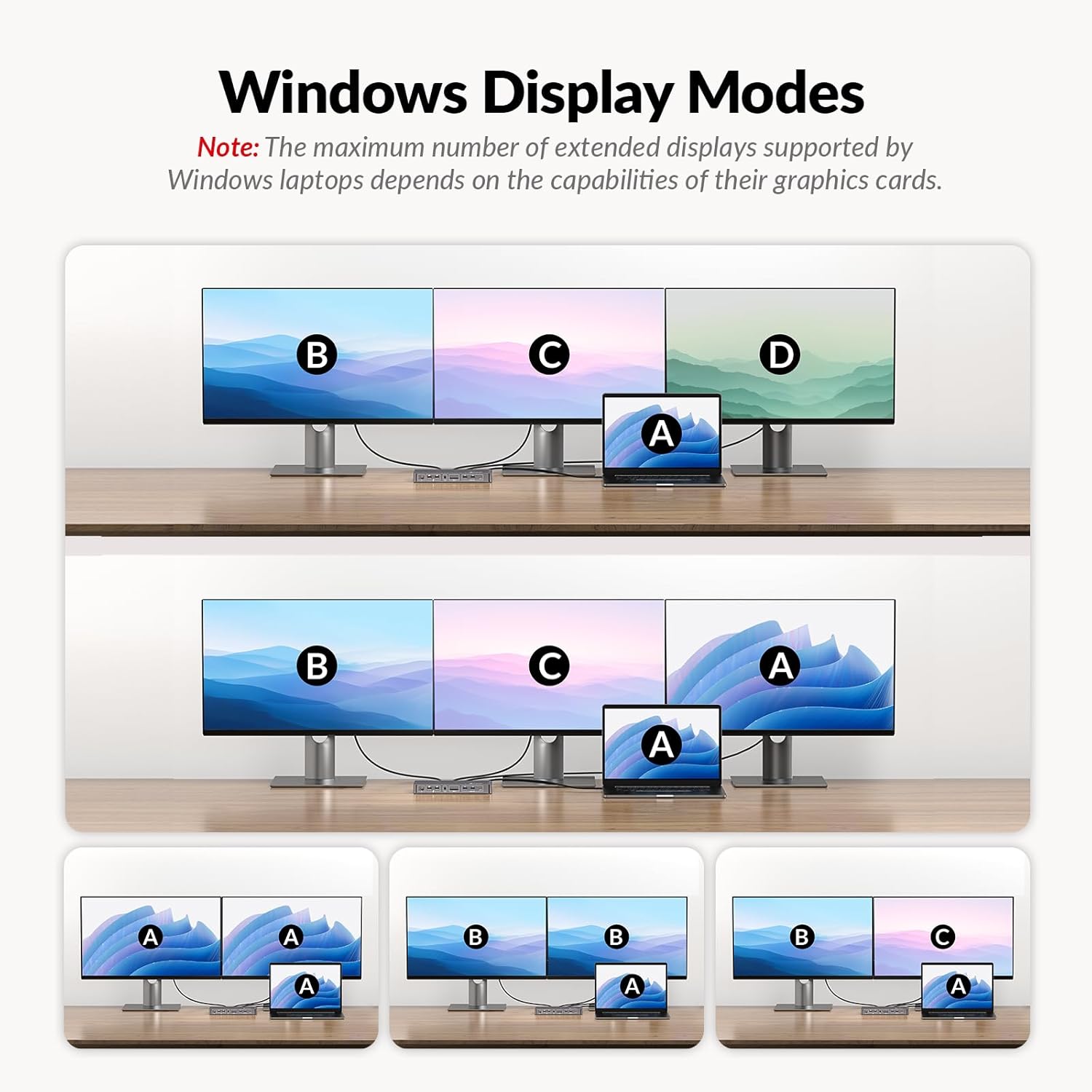

Independent extended screens require supported DisplayPort MST. DP 1.4 HBR3 and DSC are required for the highest documented triple-screen combination.
Mac display behaviour
macOS does not extend separate desktops across these MST outputs; the external screens mirror one another.
One computer at a time
KD-S03 is a single-host docking station. It is not a KVM switch for changing between two connected computers.
From unboxing to connected.
Match your devices
Check connector types, signal direction and the required output mode.
Make the connections
Follow the labelled input and output ports for the selected arrangement.
Select your settings
Choose the source, layout or pairing mode supported by this model.
Confirm operation
Check the image, sound and controls with your actual connected equipment.
KD-S03 at a glance.
| Model | KD-S03 |
|---|---|
| Host input | 1 × full-featured USB-C |
| Display outputs | 2 × DisplayPort 1.2 + 1 × HDMI 2.0 |
| Highest documented triple mode | 2 × 4K60 + 1 × 4K30 with DP 1.4 HBR3 and DSC host |
| Laptop charging | Up to 100W USB-C PD |
| Front USB data | 2 × USB-A + 1 × USB-C, up to 10Gbps |
| Rear USB data | 1 × USB-A 5Gbps + 2 × USB-A USB 2.0 |
| Networking | Gigabit Ethernet |
| Card reader | SDXC; UHS-I up to 104MB/s |
| Audio | 3.5mm headset |
| Power adapter | 20V/6A |
A little clarity before you buy.
Can all three screens run at 4K60?
The model manual’s highest specified triple arrangement is two 4K60 screens and one 4K30 screen with a DP 1.4 HBR3 + DSC host.
Will a Mac extend across all three outputs?
No. macOS mirrors the external screens through this MST dock.
Can I switch between two PCs?
No. KD-S03 is a single-host dock and does not provide KVM source switching.
