AV Access Versatile 1×4 4K HDMI Video Wall Processor with Advanced Bezel Correction, Wide-Screen Support, and Customizable Layouts

Rs. 52,250.00 INR
Rs. 52,250.00 INR
Shipping calculated at checkout.

● Flexible Video Wall Layouts: Supports various configurations like 2×2, 1×3, 2×1, 1×4 (90°), and more, including quick mode and standard mode (m*n). Note: When select 1×2 (60°) mode, the displays need to be connected to HDMI out1 and HDMI out3.
● 4K@60Hz UHD Video: Delivers clear and smooth 4K@60Hz 4:4:4 video, including wide-screen resolutions like 3840×600 and 5400×1920.
● Multiple Control Options: Supports front panel buttons and LAN control (telnet & web UI) for easy management.
● Precise Bezel Correction: Compensates for display gaps, ensuring perfectly aligned and visually consistent video walls.
● Auto Display Control: Supports CEC to automatically power displays on/off, simplifying operation.
● EDID Management: Offers EDID presets, copy, and custom settings to ensure display compatibility.
● Independent Auto Scaling: Each HDMI output features an auto scaler for optimal video quality on every screen.

1×4 4K@60Hz Video Wall Processor

Transform Your Space With Stunning Visuals

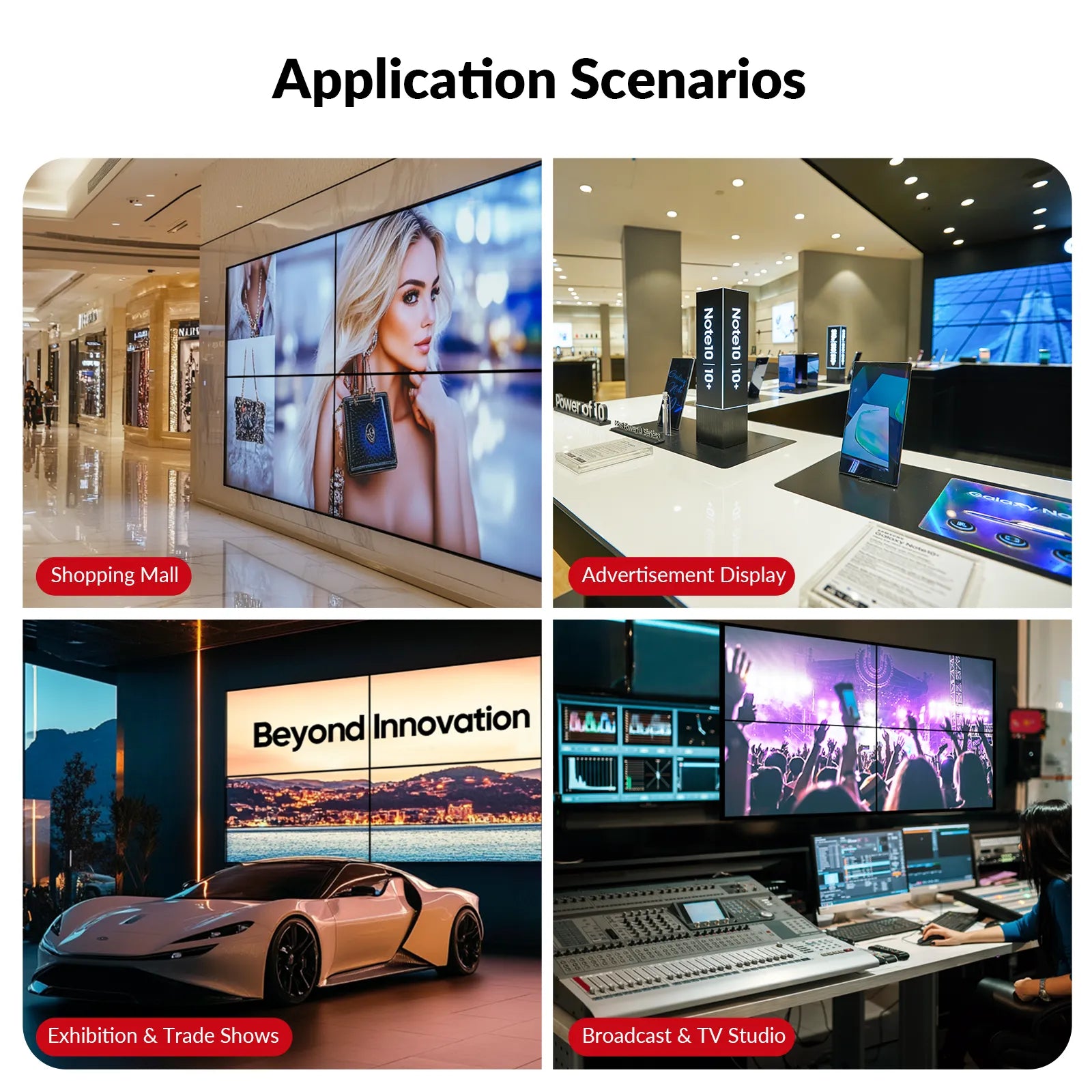

Typical Applications

Ideal for shopping malls, advertisements, and exhibitions, the 4KVW14 delivers flexible, high-quality video wall displays with easy control and diverse layouts.

AV Access 4KVW14 Video Wall Processor for shopping mall

Shopping Mall

Use the 4KVW14 to create large-scale, immersive video walls that showcase promotions and advertisements in 4K clarity. Its flexible layout options and auto scaling ensure that content fits perfectly across multiple screens, capturing shoppers’ attention.

AV Access 4KVW14 Video Wall Processor for technology

Advertisement Display

Leverage the processor’s support for various video wall configurations and wide-screen resolutions to deliver impactful, high-definition ads. The OSD function allows you to display essential information like IP addresses, making remote management easy and efficient.

Exhibition & Trade Shows

Utilize the 4KVW14 to build eye-catching video walls with unique layouts, such as 1×4 (90°) or 2×2 flipped modes, making your booth stand out. With CEC auto power control, you can easily manage display on/off schedules, streamlining your setup process.

Versatile 4K Video Wall Processor with Flexible Layouts

The 4KVW14 enables easy creation of 4K video walls with flexible layouts and independent scaling for each HDMI output. Ideal for commercial settings like shopping malls, exhibitions, and ads, it offers simple control and a cost-effective solution for high-quality displays.

AV Access 4KVW14 Video Wall Processor with-Zero Latency

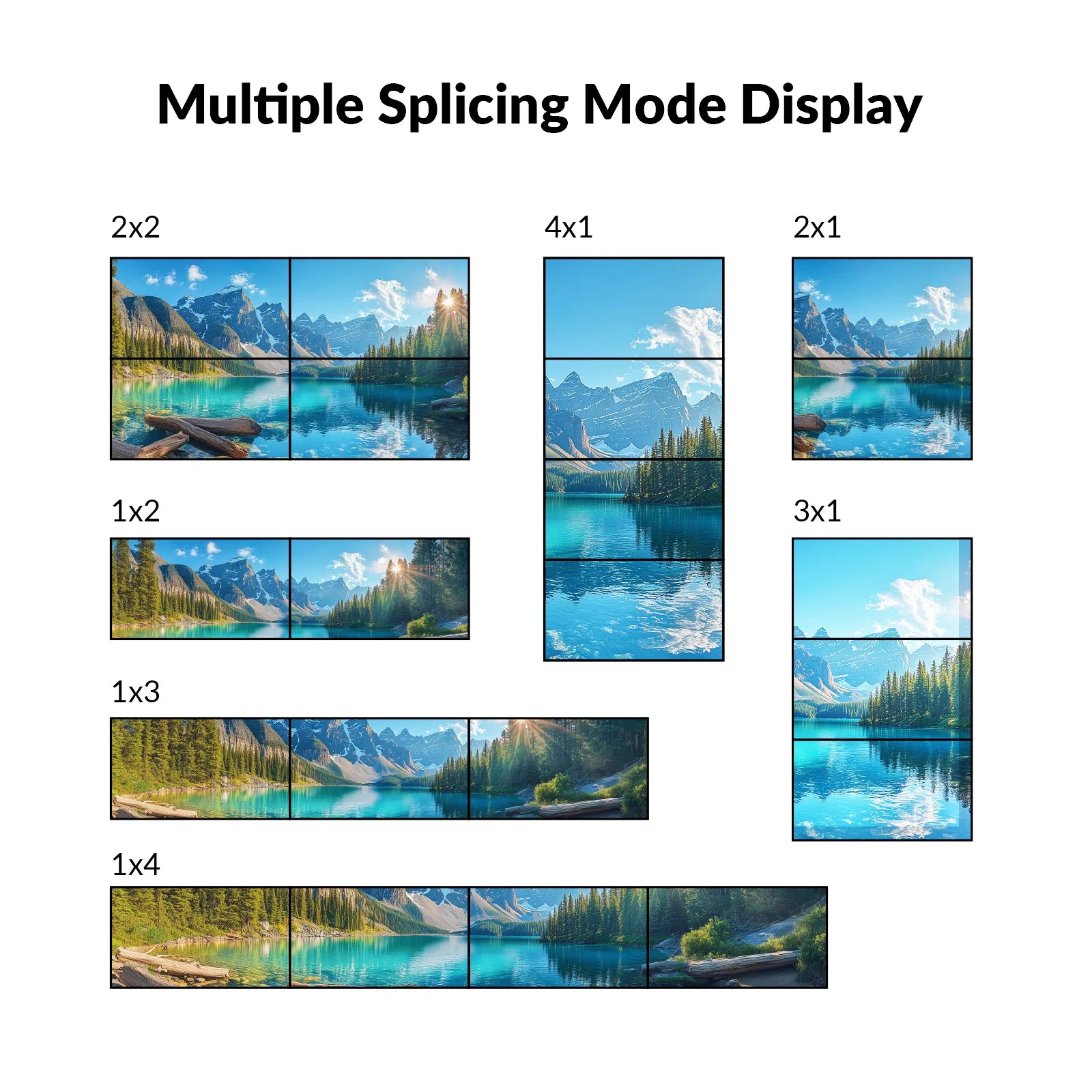

Multiple Video Wall Layouts

The 4KVW14 supports a variety of video wall configurations, including 2×2, 1×3, 1×4, 2×1, and more, with options for rotation and custom presets. This flexibility allows you to easily create the perfect display layout for any commercial setting, without complex setup.

AV Access 4KVW14 Video Wall Processor for different screens

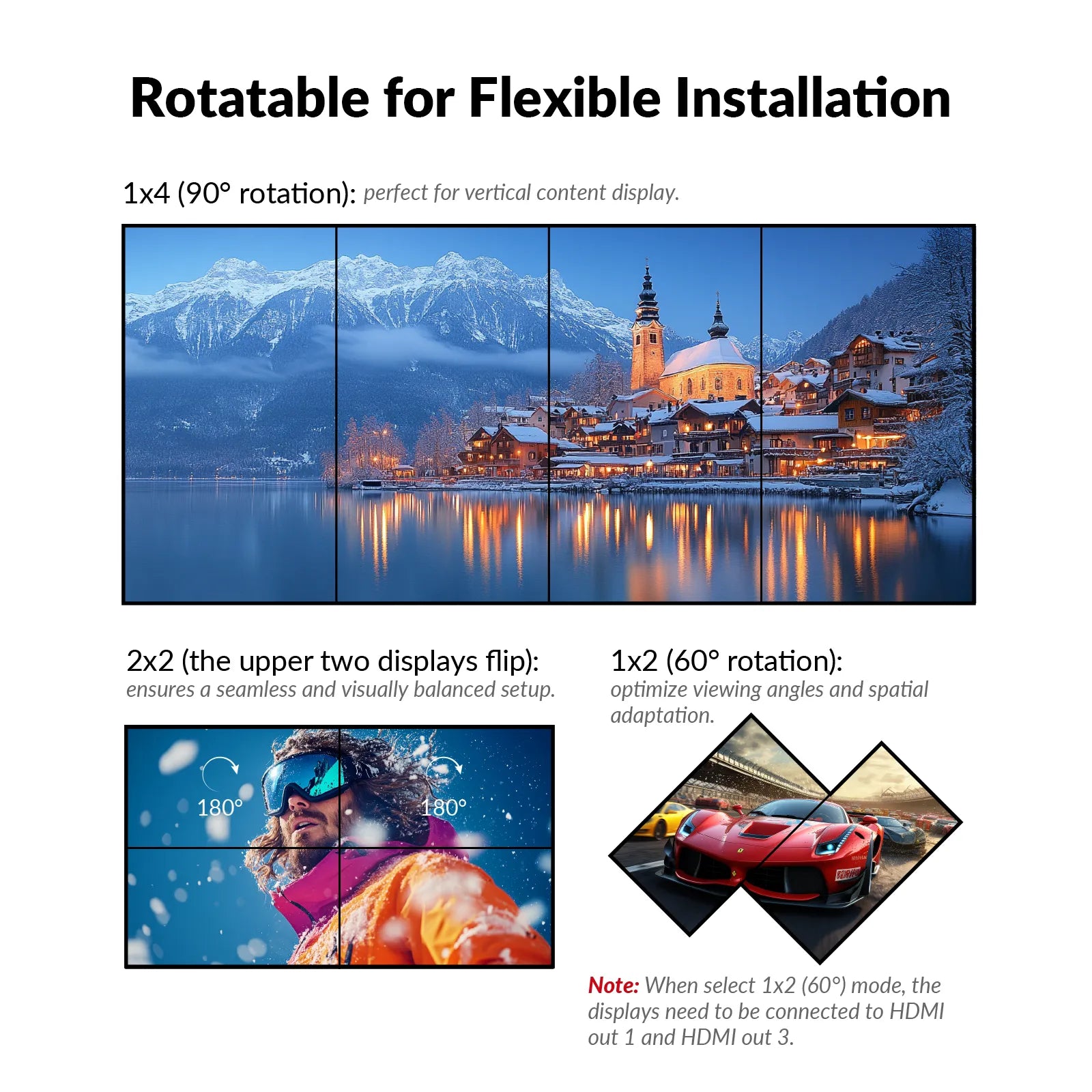

Rotatable for Flexible Installation

This video wall controller supports 60° rotation in 1×2 mode, 90° rotation in 1×4 mode, and 180° rotation for the top two screens in 2×2 mode. This flexibility allows you to customize display orientations to fit any installation scenario, ensuring seamless screen alignment and enhanced visual impact.

Note: When select 1×2 (60°) mode, the displays need to be connected to HDMI Out 1 and HDMI Out 3.

AV Access 4KVW14 & 24 4K Video Wall Controller _ Image Rotation _ Desktop Version

Perfect Alignment with Bezel Correction

With advanced bezel correction, this 4K video wall eliminates gaps between displays, delivering a smooth visual experience. This is ideal for professional presentations and dynamic displays, while each HDMI output also supports independent scaling to maintain the best video quality across all screens.


Ultra-Wide Resolution for Expansive Content

Supports ultra-wide resolutions like 3840×600@60Hz and 5400×1920@30Hz, ideal for showcasing expansive content in large settings. Perfect for applications in conference rooms, exhibition halls, or shopping mall displays where wide-screen layouts are essential for delivering impactful visual presentations.

Smart Web UI for Effortless Control

Easily manage and customize settings through the intuitive Web UI. This feature allows for flexible control, making it simple to adjust configurations, monitor system status, and fine-tune display setups remotely, ensuring a seamless experience for both installers and end-users.

Technical
Input/Output Video Signal 4K@60Hz 4:4:4 8bit, HDCP 2.3
Input/Output Resolutions Input Resolution:

Wide-screen resolution: 5400x1920P5;

800 x 6008, 1024 x 7688, 1280x720P6,7,8, 1280 x 7688, 1280 x 8008, 1280 x 9608, 1280 x 10248, 1360 x 7688, 1366 x 7688, 1440 x 9008, 1600 x 9008, 1600 x 12008, 1680 x 10508, 1920x1080P6,7,8, 1920 x 12008, 3840x2160P2,3,5,8, 3840 x 6008, 4096x2160P2,3,5,8

Output Resolution:

Auto Scaler: According to the EDID of the display to output the recommended resolution.

Manual: 1280x720P6, 1280x720P8, 1920×10806, 1920×10808, 3840×21605, 3840×21608, 4096×21605, 4096×21608

2 = at 24 Hz, 3 = at 25 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz
Audio Format HDMI In/HDMI Out: PCM 2.0

Audio Out: Stereo
Maximum Data Rate 18Gbps

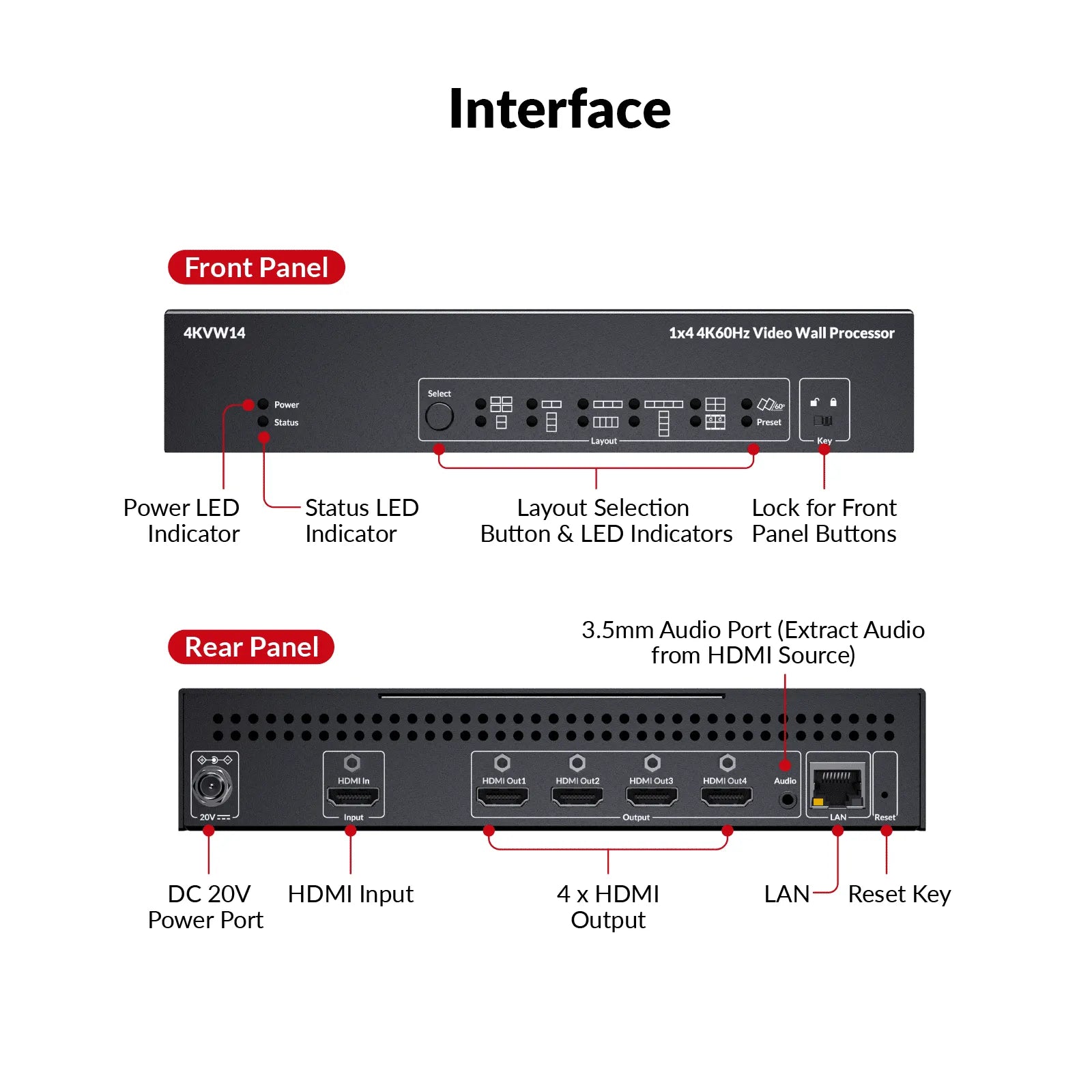

Control Method Front panel buttons, LAN (Telnet API & Web UI)
General
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 20% to 90%, non-condensing
ESD Protection Human-body Model:

±8kV (Air-gap discharge)/

±4kV (Contact discharge)
Power Supply DC 20V, 3A
Power Consumption (Max) 23.2W
Device Dimensions

(W x H x D)

 220mm x 42mm x 175mm/8.66” x 1.65” x 6.89”
Product Weight 0.99kg/2.18lbs

 Transmission Distance

Cable Type Range Supported Video
HDMI Input: 15m/50ft

Output: 10m/33ft

 1080P@60Hz 24bpp
Input/Output: 10m/33ft 4K@30Hz 4:4:4 24bpp

4K@60Hz 4:2:0 24bpp
Input/Output: 5m/16ft 4K@60Hz 4:4:4 24bpp
